This weatherboard profile is based on a James Hardie weather board product named Summit.

The fixings included are a 2.8x40mm nail and spline as identified by the manufacturer.

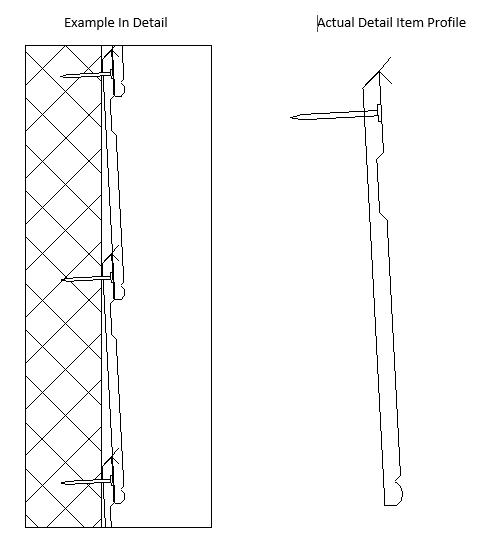

It is a detail item which i am using for a construction detail, the images are firstly of its appearance when used in a drawing and secondly of the detail items profile.

This is my first upload and is obviously very simple i hope this saves other people some time with their projects.

feedback would be greatly appreciated

Product Version: Revit Architecture 2015

Uploaded By: bfrancis1982
Uploaded On: Mon, Apr 11, 2016
Original Creator: Rebecca Francis
