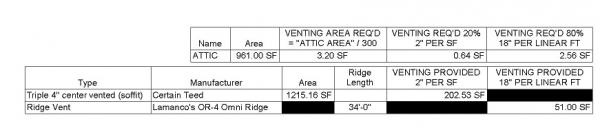

These Revit Schedules are a room schedule filtered for the room named Attic and a soffit schedule that includes a soffit pretending to be the ridge vent. The soffits model across the whole roof including the eaves to get the required area. The ridge vent is a narrow soffit at the ridge the length of the ridge minus the width of the boundary. I have included the stand alone schedules with no model at www.revitcity.com . The math formulas are in the schedules and can be modified per required code. The formula for the ridge vent is the perimeter of the ridge / 2. The ridge boundary is as narrow as possible so I can get a length value. Conditional values are set to black out the values if the manufacture is not who I need it to be. I think it’s pretty cool. If you have any questions feel free to email me at JustinDesigns3D@gmail.com. Enjoy :-)

Product Version: Revit Architecture 2015

Uploaded By: justinburton69
Uploaded On: Fri, Apr 10, 2015
Original Creator: JustinDesigns3D
