Forums >> Revit Building >> Technical Support >> joining two round columns together

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 21, 2008 at 2:56:20 PM | joining two round columns together

#1

joshr


active

Joined: Fri, Jan 18, 2008
10 Posts
No Rating


I have two round columns, one sitting on another that I need to join, as well as joining the top one to a square column. What I have now is shown in the attatched image.

So my question is, how do I do this? I'm using Revit 2008. Thanks for any help.





Attached Images


This user is offline



Mon, Jan 21, 2008 at 10:00:29 PM | joining two round columns together

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 362 Votes


It may depend on how these were created but have you used the join geometry tool?

This user is offline



Mon, Jan 21, 2008 at 10:54:14 PM | joining two round columns together

#3

joshr


active

Joined: Fri, Jan 18, 2008
10 Posts
No Rating


yeah, the join geometry tool didn't work.

This user is offline



Mon, Jan 28, 2008 at 5:20:57 PM | joining two round columns together

#4

joshr


active

Joined: Fri, Jan 18, 2008
10 Posts
No Rating


any other ideas?

This user is offline



Mon, Jan 28, 2008 at 5:36:50 PM | joining two round columns together

#5

brettgoodchild


active
brettgoodchild Avatar

Joined: Sat, Feb 4, 2006
425 Posts
4 Stars: 17 Votes

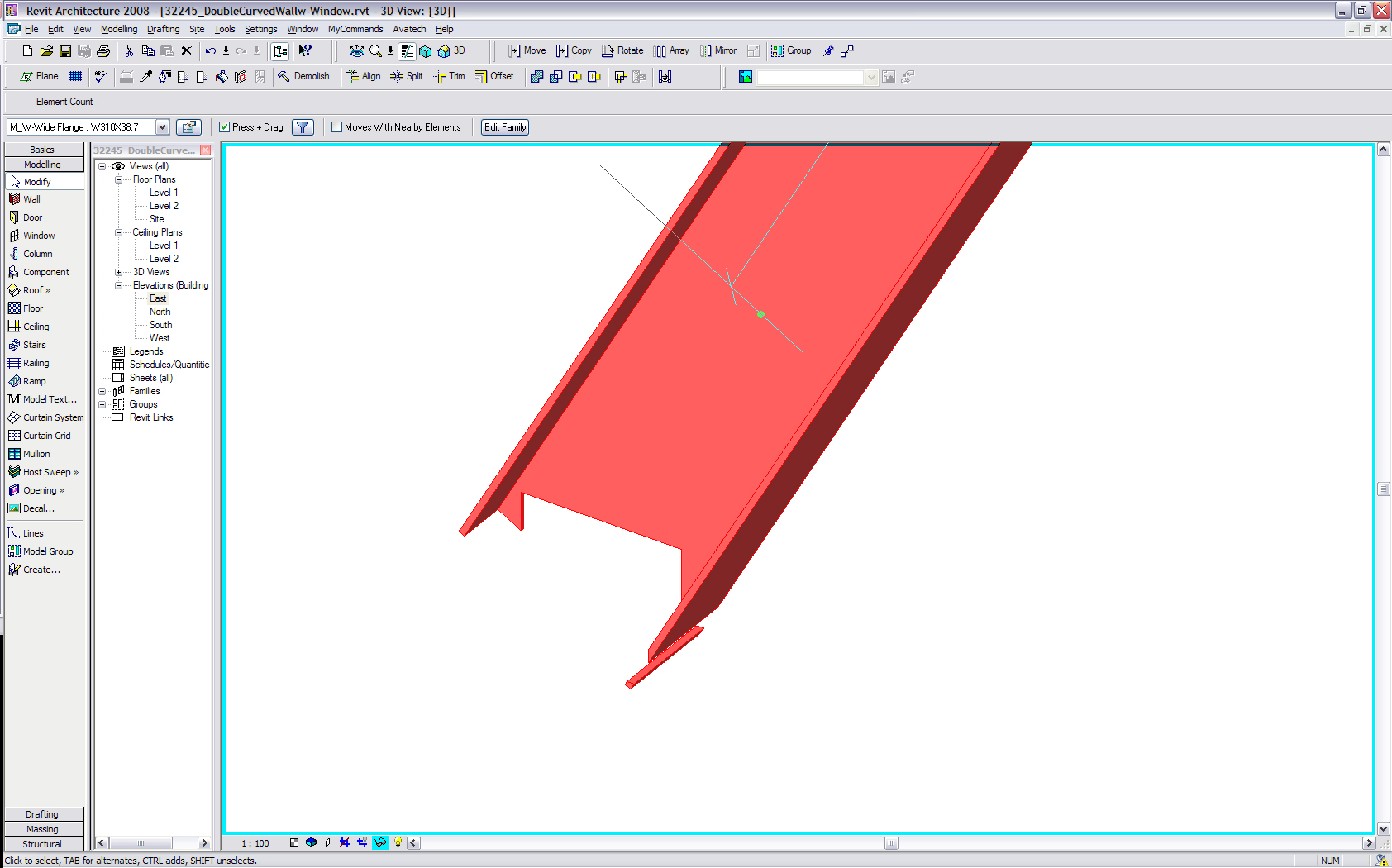

I would just try the opening by face option on this. Extend the column to cut a little extra then on the modeling tab use the opening by face and cut out what you dont need. I would do this same option for the top.



HTH



Brett



Attached Images


-----------------------------------

"You cannot escape the responsibility of tomorrow by evading it today. "
                             ~ Abraham Lincoln

This user is offline



Tue, Jul 16, 2013 at 11:28:05 AM | joining two round columns together

#6

caddeva


active

Joined: Fri, Sep 14, 2007
29 Posts
No Rating


I thinkyou can go for generic column. this should be work.


This user is offline
