Wed, Dec 12, 2007 at 4:46:41 PM | Odd Wall join. Can't get Revit to work right

#1

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes

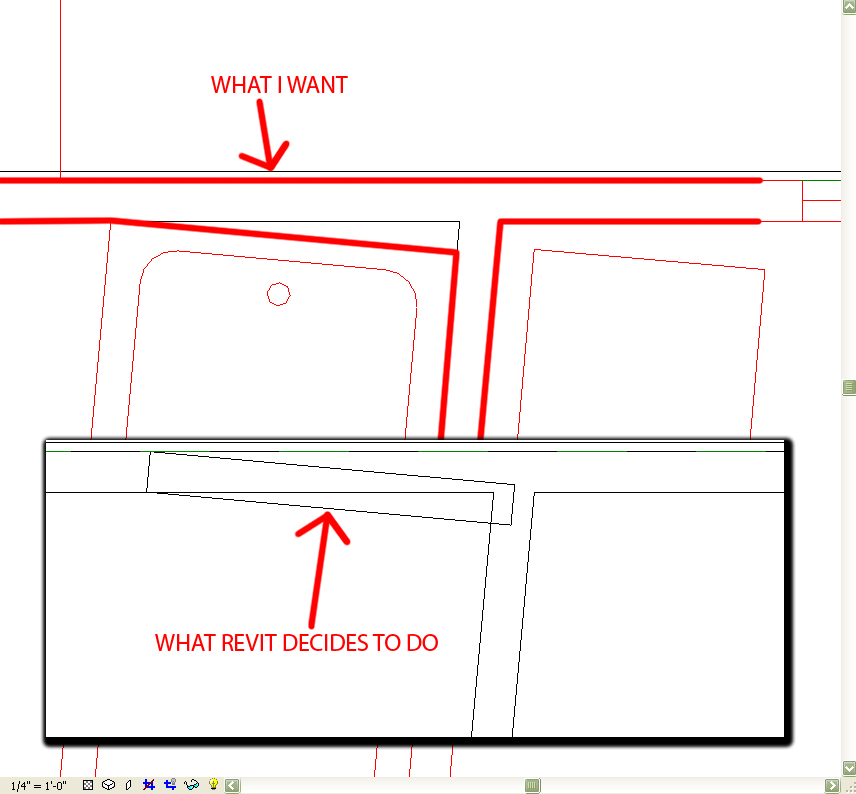

I have a wall that is join off axis and when I try to beef up the inner wall to make the corner 90 degrees Revit can't joing them.  Any ideas on how to accomplish this?  Thanks.

Attached Images


-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline



Wed, Dec 12, 2007 at 5:51:07 PM | Odd Wall join. Can't get Revit to work right

#2

jterrell


active

Joined: Thu, Mar 9, 2006
118 Posts
3 Stars: 5 Votes

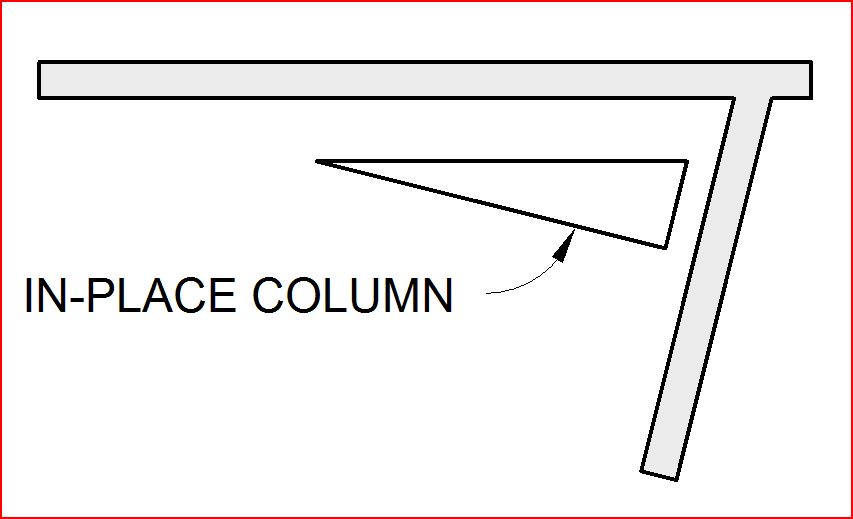

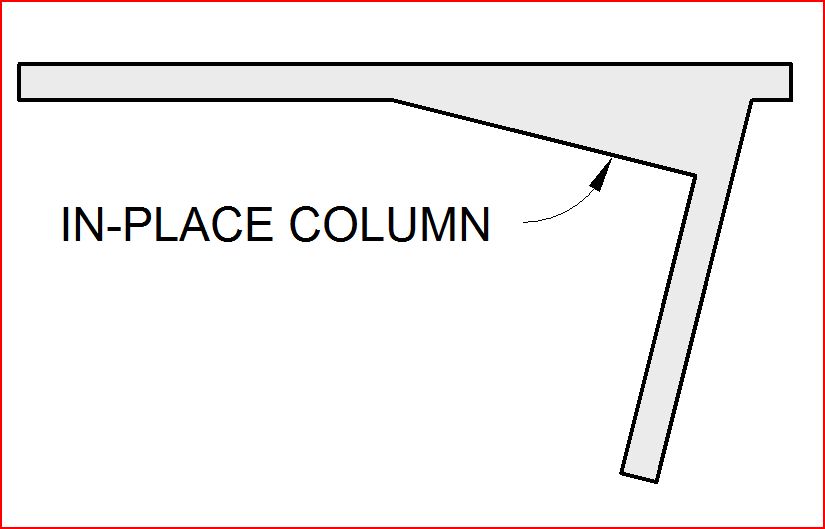

Create an in-place column family. Make sure when you are creating the family, you go to "Family Categories and Parameters" and select "Automatically join". See the attached images.

Attached Images


This user is offline

View Website

Wed, Dec 12, 2007 at 6:10:57 PM | Odd Wall join. Can't get Revit to work right

#3

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes


awesome...you rock.  Thanks for the help

-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline



Wed, Dec 12, 2007 at 6:42:06 PM | Odd Wall join. Can't get Revit to work right

#4

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


you can do the same thing with an in-place wall and join geometry

HTH


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Wed, Dec 12, 2007 at 7:02:43 PM | Odd Wall join. Can't get Revit to work right

#5

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes


Yes you can do that...but I notice that it doesn't have the option to "attach" under the category settings.  Am I missing something.  Because I'd much rather have these on the wall category to turn on and off appropriately.

-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline



Wed, Dec 12, 2007 at 7:45:10 PM | Odd Wall join. Can't get Revit to work right

#6

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


you have to manually join the walls with join geometry after they are both created. like you said there is no auto option like the columns.

HTH



Edited on: Wed, Dec 12, 2007 at 1:45:51 PM

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Wed, Dec 12, 2007 at 8:46:34 PM | Odd Wall join. Can't get Revit to work right

#7

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes


cool thanks.

-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline
