Forums >> Revit Building >> Technical Support >> Beam and block floor problem - cut into wall?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Nov 29, 2007 at 9:26:21 AM | Beam and block floor problem - cut into wall?

#1

OktoberFire


active
OktoberFire Avatar

Joined: Fri, Nov 2, 2007
64 Posts
No Rating

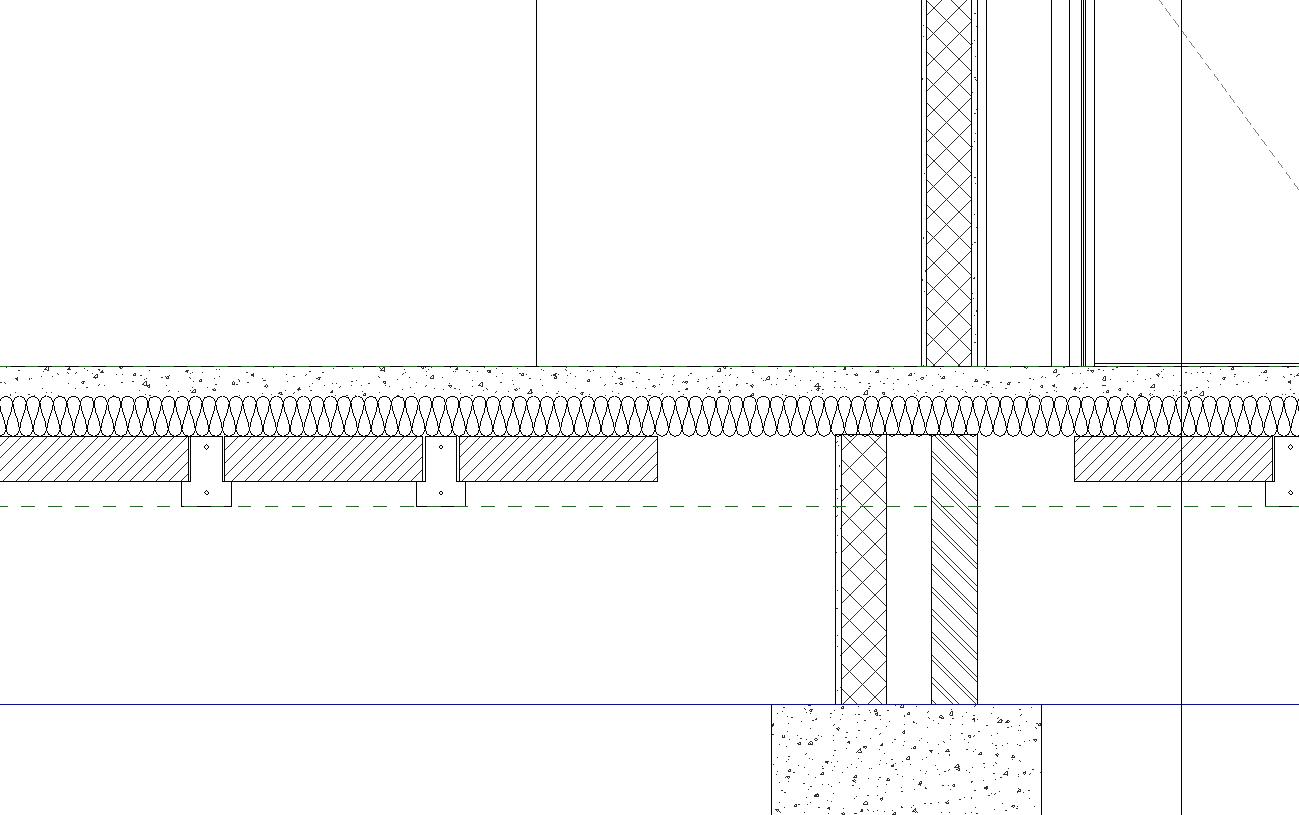

hi as shown in the attached image, i have drawn my beam and block floor but cant get it to sit right on my sleeper wall.

it either doesnt reach it, or overcuts too far into the wall.

is there any tutorials or any help on how to cut the block in the b&b floor?



Attached Images


This user is offline



Thu, Nov 29, 2007 at 9:36:12 AM | Beam and block floor problem - cut into wall?

#2

OktoberFire


active
OktoberFire Avatar

Joined: Fri, Nov 2, 2007
64 Posts
No Rating


my mistake, nevermind i was thinking backwards - delete this post

This user is offline



Thu, Nov 29, 2007 at 9:36:54 AM | Beam and block floor problem - cut into wall?

#3

OktoberFire


active
OktoberFire Avatar

Joined: Fri, Nov 2, 2007
64 Posts
No Rating


still wondering how to cut the block though :/

This user is offline



Thu, Nov 29, 2007 at 9:57:08 AM | Beam and block floor problem - cut into wall?

#4

aandr001


active

Joined: Tue, Dec 19, 2006
57 Posts
4.5 Stars: 6 Votes


I'm not sure what I'm looking at here Oktober.  Which part is the "block" you wish to cut through?

This user is offline



Thu, Nov 29, 2007 at 11:01:47 AM | Beam and block floor problem - cut into wall?

#5

OktoberFire


active
OktoberFire Avatar

Joined: Fri, Nov 2, 2007
64 Posts
No Rating


hi, my post is a right b*llocks up.



what im wondering is, how do i say cut or trim a repeating detail/component detail Cryingi have some blockwork i wanna cut and cant seem to do it)




This user is offline



Thu, Nov 29, 2007 at 11:36:06 AM | Beam and block floor problem - cut into wall?

#6

aandr001


active

Joined: Tue, Dec 19, 2006
57 Posts
4.5 Stars: 6 Votes


OK.  I think I see what your asking (forgive my slowness).  You have a repeating detail and it won't end exactly where you want it to, right?  This is because it is defined in the properties of the repeating detail itself and it will always end with the closest end of the particular object that you've chosen to repeat (i.e. a block or hat channel, whatever).  What I'll do in this situation is hide the end that I don't want to see behind some other object by using the "Send to..." buttons that appear on the toolbar when you select the repeating detail.  If there is nothing to hide the end behind, you could use a masking region.

Am I answering the question or did I miss it again?


This user is offline



Fri, Nov 30, 2007 at 3:05:02 AM | Beam and block floor problem - cut into wall?

#7

OktoberFire


active
OktoberFire Avatar

Joined: Fri, Nov 2, 2007
64 Posts
No Rating


that is bang on, i got around it by drawing my repeating detail, then added a single detail and editing its size Smile

This user is offline
