Wed, Feb 16, 2005 at 5:05:06 PM | Need Advise...

#1

wparish


Joined: Thu, Feb 3, 2005
8 Posts
No Rating


I have to build a steel tube truss to put in my project..can anyone point me a good direction to start.. Would I try to build it as a componet..... Will

This user is offline



Wed, Feb 16, 2005 at 6:11:36 PM | RE: Need Advise...

#2

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Checkout some of the examples in the family explorer, i'm sure it would be easier to reverse engineer one of those... You could also try the tutorial in the revit help on creating parametric trusses. If you can't get anything out of that let me know and supply a sketch of exactly what you are trying to create and i'll take you through the steps. HTH.

This user is offline

View Website

Thu, Feb 17, 2005 at 9:55:43 AM | RE: Need Advise...

#3

wparish


Joined: Thu, Feb 3, 2005
8 Posts
No Rating


I sure will..thank you so much for your advise...I will keep you informed... Will

This user is offline



Thu, Feb 17, 2005 at 12:54:26 PM | ok im stumped

#4

wparish


Joined: Thu, Feb 3, 2005
8 Posts
No Rating

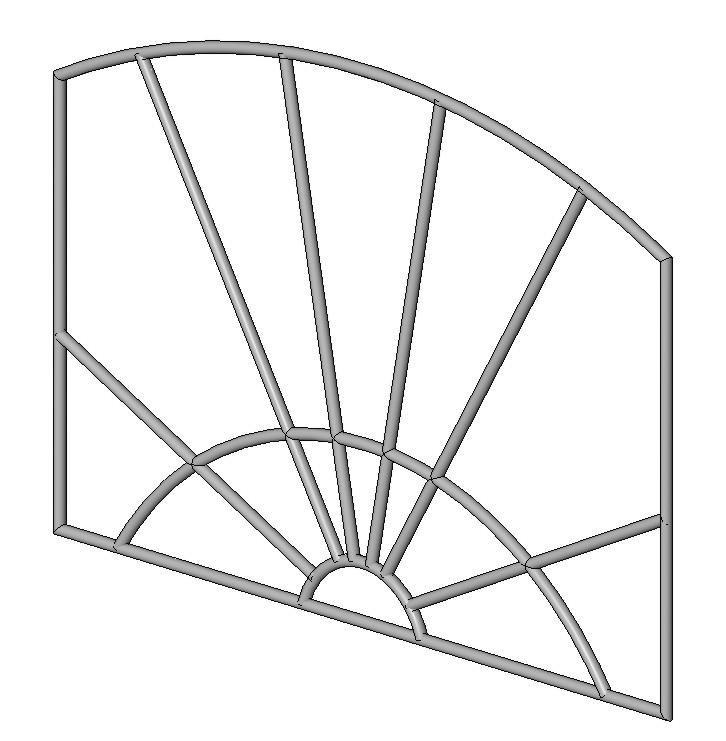

here is an idea of what i want it to look like..i cant figure out how to turn the lines into 4" steel tube..and the arc at the bottom is acually steel plate on either side of the steel tube pieces... any help would be greatly appreciated.. Will

Attached Files

This user is offline



Thu, Feb 17, 2005 at 5:25:36 PM | RE: Need Advise...

#5

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Umm it is extremely simply to create for one instance, but i imagine you won't to make it adjustable for varying widths? To make it work for one instance, just set the back/front reference plane as the work plane and draw sweeps in elevation. Refer image... If you want it to be adjustable you will need to use reference planes for the box shape and then curved reference lines for the arcs and radial lines... Then its a matter of setting or locking these elements to the references to get them to adjust. If you can't manage it and you need it to be adjustable, let me know and i'll make it adjustable if i get a chance. I'm so busy these days...!

Attached Images


This user is offline

View Website

Fri, Feb 18, 2005 at 4:00:11 PM | RE: Need Advise...

#6

wparish


Joined: Thu, Feb 3, 2005
8 Posts
No Rating


Mr. Spot, This is what i came up with..Its not adjustable but through gods good graces, I managed to get it right the first time...I will also attach an awning that I built.. Thank You for all of your support!!! you will have to excuse the pixilation...i rendered it as medium for time sake... Not to shabby for someone who just started revit two weeks ago... Will

Attached Images


This user is offline
