Forums >> Community >> Newbies >> Newbie need help about curved wall!

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Oct 1, 2007 at 10:37:08 AM | Newbie need help about curved wall!

#1

Mariange


active

Joined: Mon, Oct 1, 2007
6 Posts
No Rating


Hi everybody,

 First, I'm a french speaker, so my english would not be wow!

I want to do curved wall but I can't figured out how to do ellipsoidal ones.  I'm only able to do arc wall (section of a circle). Please somebody help me!

 Mariange


This user is offline



Mon, Oct 1, 2007 at 10:49:54 AM | Newbie need help about curved wall!

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Pick your Drafting tag and establish where you what you want your ellipse to look like using linework and the ellipse tool.  I suggest you pick either the center of your walls or the outside.  Then go back to modeling, pick your wall type and point to the linework.... delete the lines and your done!

This user is offline



Mon, Oct 1, 2007 at 11:05:26 AM | Newbie need help about curved wall!

#3

Mariange


active

Joined: Mon, Oct 1, 2007
6 Posts
No Rating


Thanks, but I'm not sure that I understand everything...

I draw an ellipse line while I'm on the basics tab, after, when I go to modelling and I pick a wall type, I can't point to the line work. It's like if a want to create a brand new wall. It doesn't refer to the line I just draw...


This user is offline



Mon, Oct 1, 2007 at 12:07:16 PM | Newbie need help about curved wall!

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


After you pick your wall type - look on your options bar.  You probably have the pencil "line" tool.  Insyead, pick the arrow "pointer" tool.  You can then point at your lines.

This user is offline



Mon, Oct 1, 2007 at 12:19:15 PM | Newbie need help about curved wall!

#5

kkohutek


active
kkohutek Avatar

Joined: Fri, Aug 10, 2007
24 Posts
4 Stars: 7 Votes

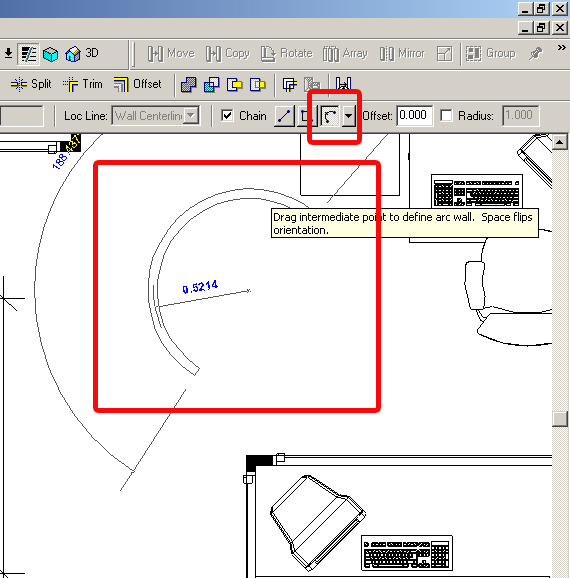

well, I did a print screen so it will look easier if you don't understand english very much



what everyone's trying to say is attached



Attached Images


This user is offline

View Website

Tue, Oct 2, 2007 at 10:41:48 AM | Newbie need help about curved wall!

#6

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes


I just tried to make a wall with the line method.  I was able to make straight lines into walls but not the elipse lines.

This user is offline

View Website

Tue, Oct 2, 2007 at 11:34:21 AM | Newbie need help about curved wall!

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Darn ... your right!  I guess I had never tried that.  However, the process does work wth arc's.  I suggest you create your ellipse using the old drafting process of using 4 arcs or just overlay the REVIT ellipse with arc segments that approximate it.  I would think you would want to do the 4 arc geometry anyway so that it can be asily described - dimensioned.

This user is offline
