Forums >> Revit Building >> Technical Support >> Wall Join

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Jun 9, 2007 at 2:12:04 PM | Wall Join

#1

allstate45


active
allstate45 Avatar

Joined: Thu, Jan 26, 2006
77 Posts
3 Stars: 2 Votes

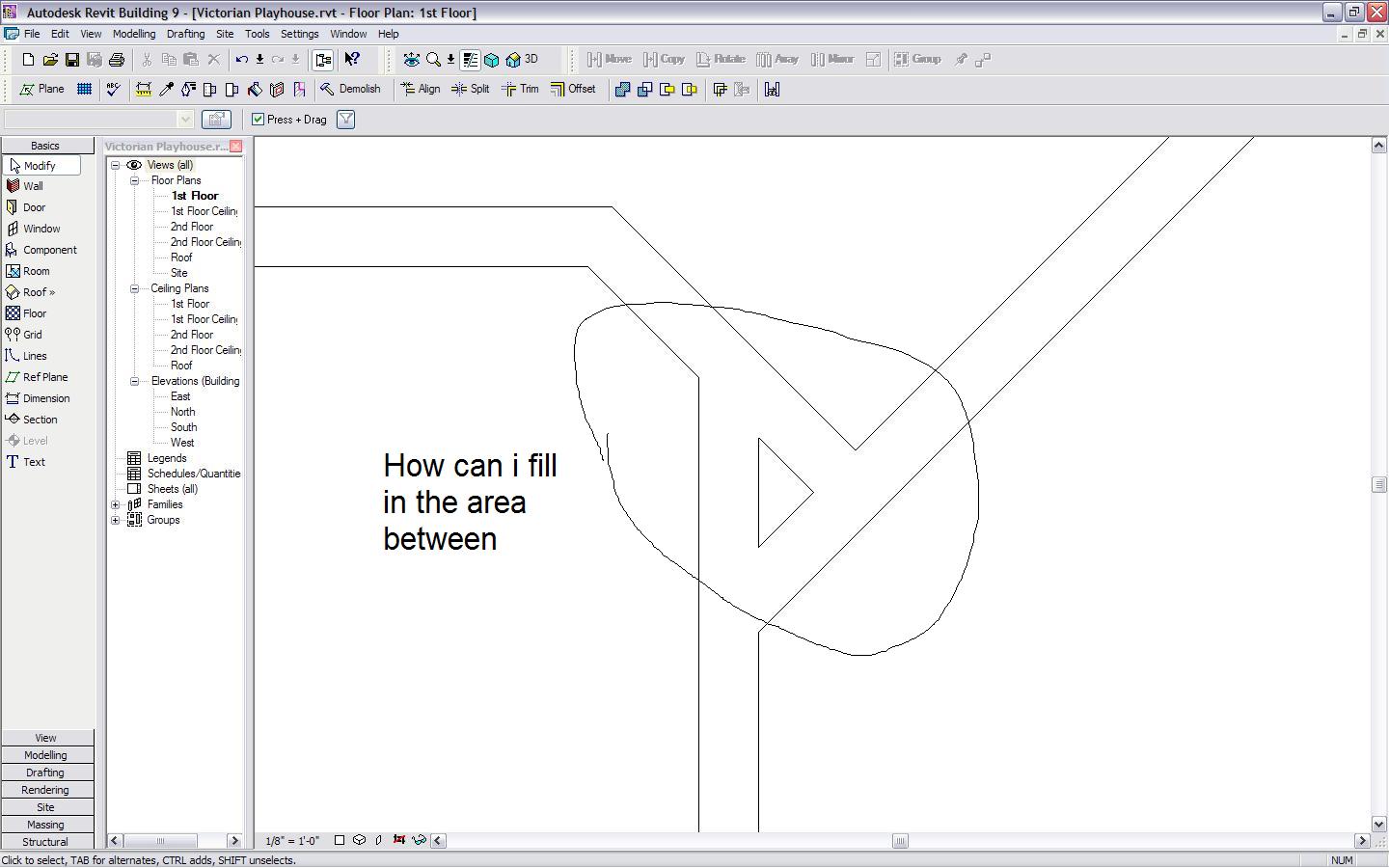

How can I fill in an area between 3 or more walls?  Look at the attachment to see what I am talking about.

Attached Images


This user is offline

View Website

Sat, Jun 9, 2007 at 8:48:32 PM | Wall Join

#2

Tmifsud


active

Joined: Sat, Oct 15, 2005
24 Posts
5 Stars: 1 Votes


I can think of 3 approaches.

1) Use masking region tool to hide inner lines.

2) Use split tool to split walls at outer edge of intersection leaving small pieces of wall near intersection.  Then use linework tool and choose invisible lines to hide inner edge.

3) Cut walls back to edge and infill intersection with an in-place wall family.  Use join geometry to eliminate edges.

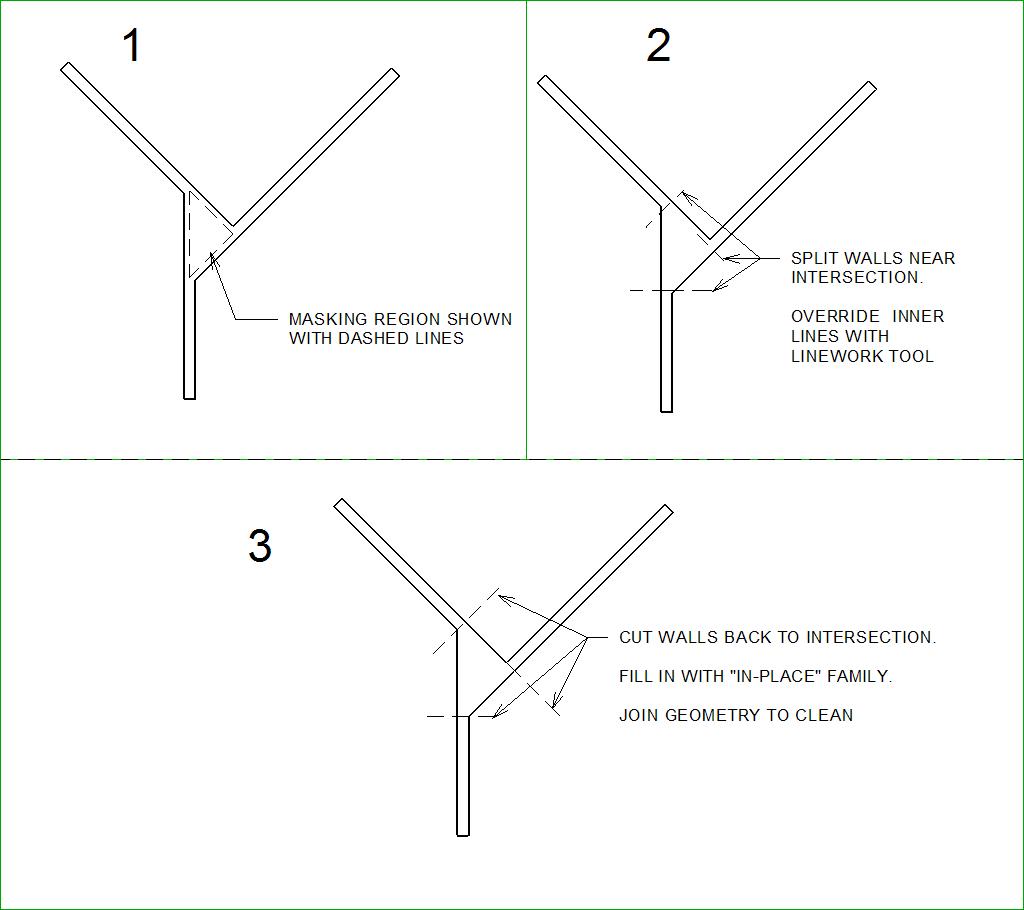

Refer to attached image.

HTH. Troywww.myCADD.com



Attached Images


This user is offline

View Website
