Forums >> Revit Building >> Technical Support >> REVEAL help, reveal turning a corner at end of wall??

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 5, 2007 at 11:28:45 AM | REVEAL help, reveal turning a corner at end of wall??

#1

glennhood


active

Joined: Mon, Jan 30, 2006
2 Posts
No Rating


revit 9.1

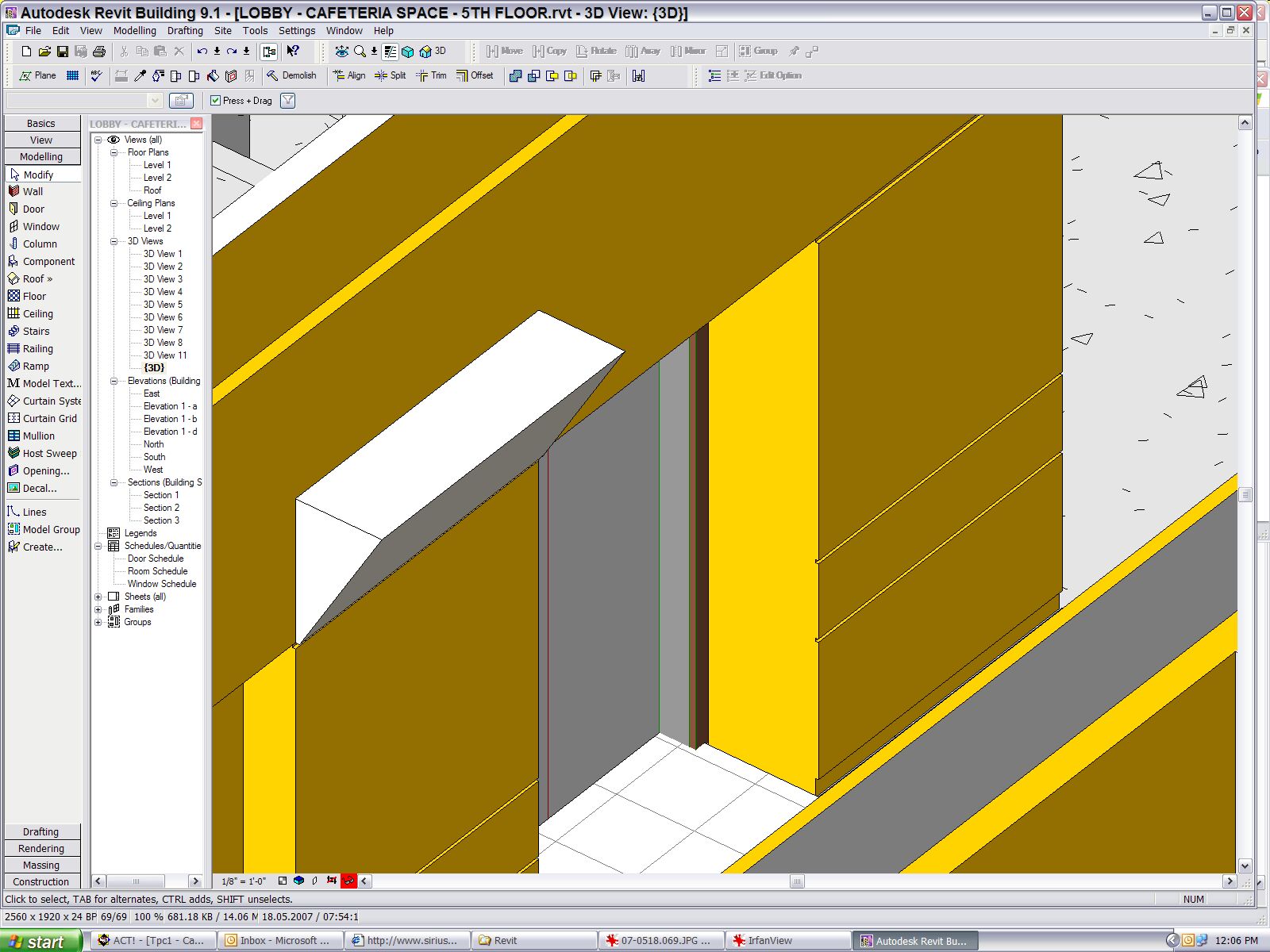

 I have attached a picture that shows my issue, i have placed my wall reveals on part of the wall and i am trying to get them to turn the corner, but it is not allowing me to place the reveal on the end.

the wall is a concrete wall with two layers of gyp bd.

How can this be done? I would appreciate

Thanks



Attached Images


This user is offline



Tue, Jun 5, 2007 at 2:16:59 PM | REVEAL help, reveal turning a corner at end of wall??

#2

sdbrown


active

Joined: Fri, Dec 12, 2003
168 Posts
5 Stars: 3 Votes


Select the wall sweep, then in the options bar  you will see a choice for "change sweep return" select that than hit the edge of  your reveal, this will add a grip that you then can drag the reveal back to wrap into your opening.  For more complex conditions I recommend an inplace sweep that you sketch the path and cut out of the wall.


This user is offline



Tue, Jun 5, 2007 at 2:17:13 PM | REVEAL help, reveal turning a corner at end of wall??

#3

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 25 Votes


First, make sure that you wrap the exterifor of the wall finish at inserts[found under the type properties of the wall].

Next, click on one of the sweeps, on the options bar choose 'change sweep returns' click on the sweep and set the return angle to 90 or whatever you need. Then drag the blue grip of the return sweep and drag it to the end of your wall return.

Edit: Scott beat me by 14 seconds!



Edited on: Tue, Jun 5, 2007 at 2:18:26 PM

-----------------------------------

Tom

www.reviteer.com   http://twitter.com/Reviteer



This user is offline

View Website

Tue, Jun 5, 2007 at 2:25:20 PM | REVEAL help, reveal turning a corner at end of wall??

#4

glennhood


active

Joined: Mon, Jan 30, 2006
2 Posts
No Rating


thanks guys

This user is offline
