Forums >> Revit Building >> Technical Support >> how modeling a sit slabs?
|
|
|
active
Joined: Sun, Apr 8, 2007
17 Posts
 |
Hi everyone, in this days i`m making a theater . everything was going ok but... the slab for the seats ??!! how can i model that? any commentary.. plz , need help :oD
|
This user is offline |
|
 | |
|
|
active
Joined: Thu, Mar 9, 2006
118 Posts
 |
do you have a picture of what you need?
|
This user is offline |
View Website
|
|
|
active
Joined: Sun, Apr 8, 2007
17 Posts
|

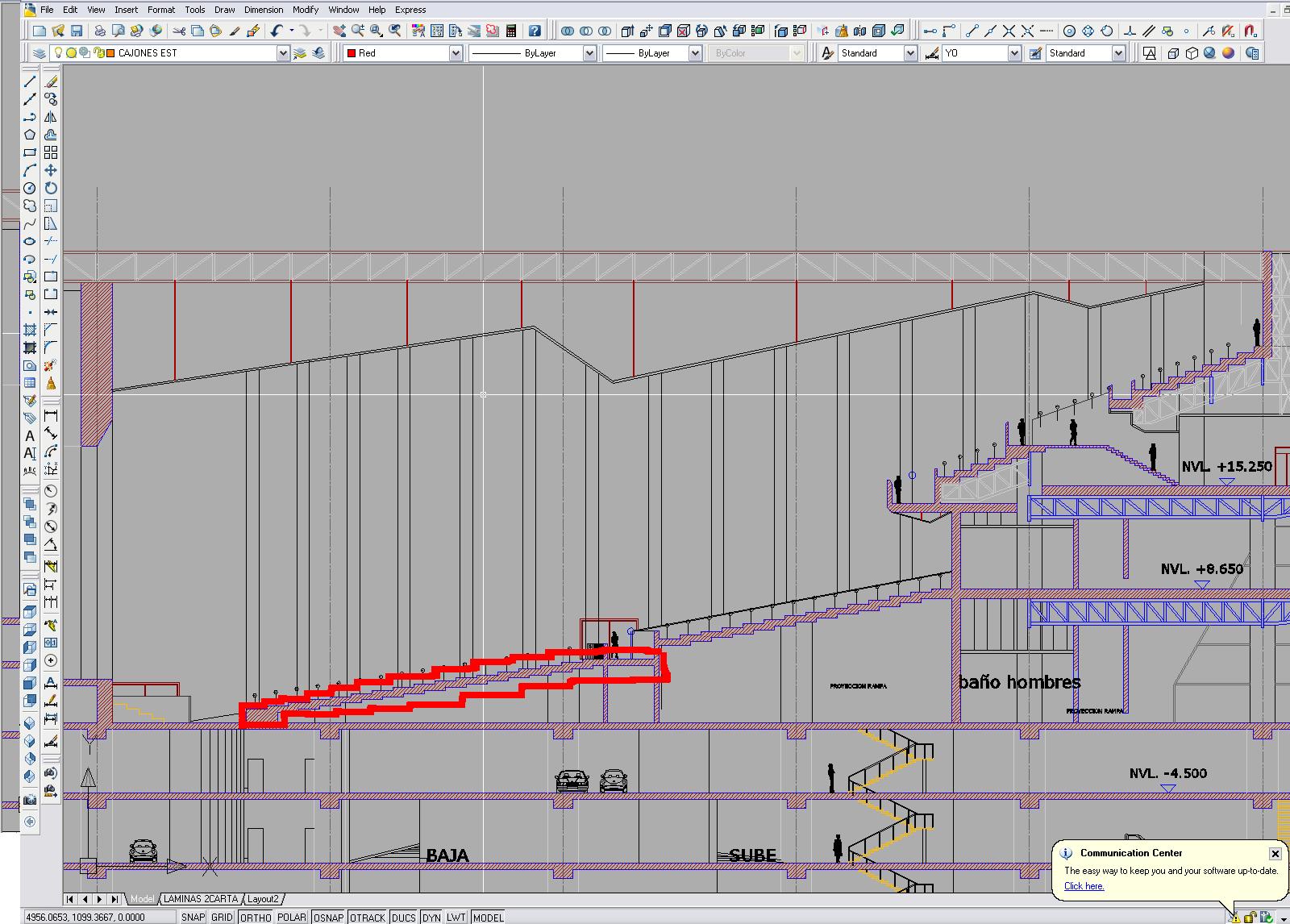

yes of course, i am adding a section view from Autocad for reference. thx! in floor plan the gradins are in arc form.
|
This user is offline |
|
|
|
active
Joined: Sun, Apr 8, 2007
17 Posts
|
Sure , im adding a section view. thanx for your help! :oD
|
This user is offline |
|
|
|
active
Joined: Thu, Mar 9, 2006
118 Posts
|

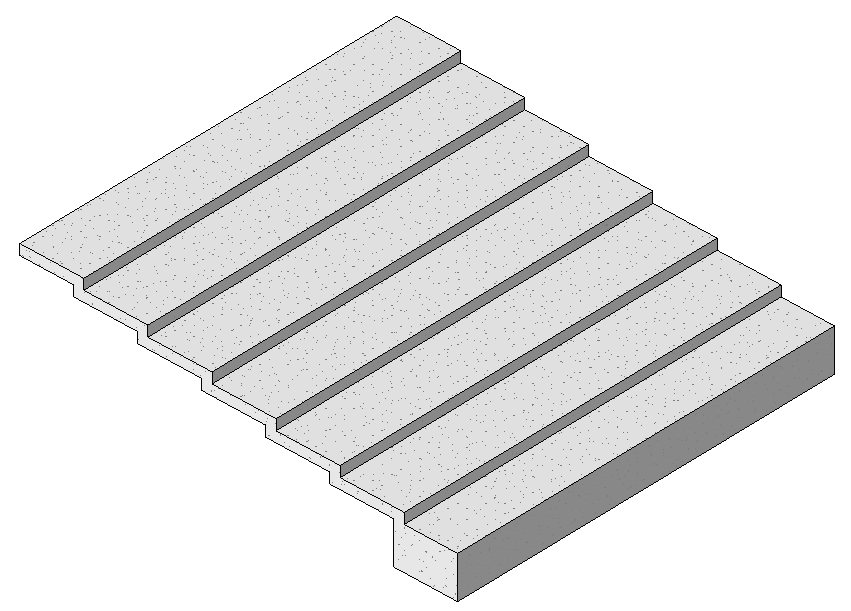

you could create an in-place floor family and just model it. not quite parametric, but it works well.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Mar 9, 2006
118 Posts
|

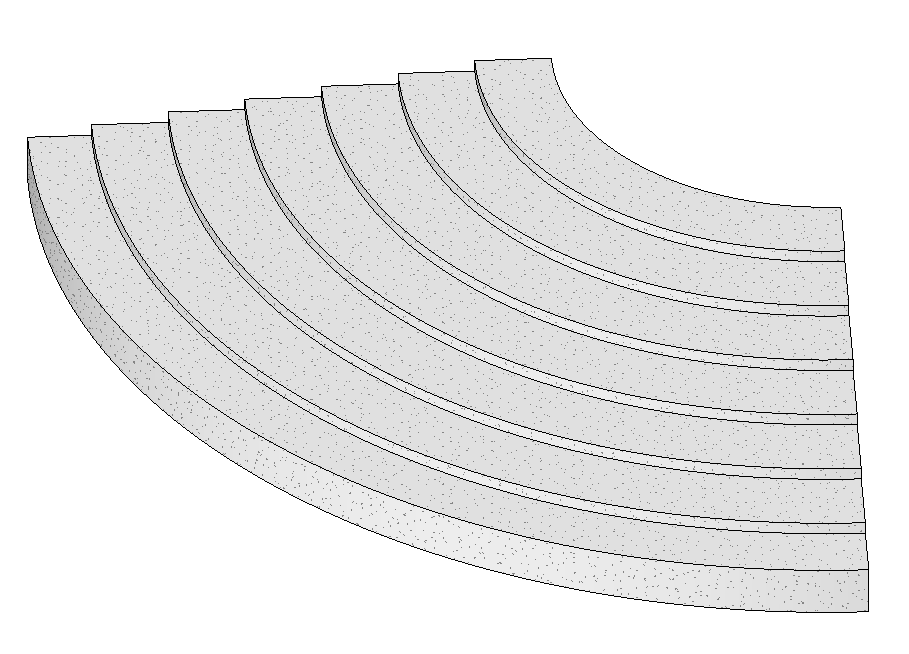

sorry, i forgot it was supposed to be an arc form, same principle though, just use a sweep. model the arc and sweep the stair profile along it.
|
This user is offline |
View Website
|
|
|
active
Joined: Sun, Apr 8, 2007
17 Posts
|
OK!!! that what i was looking for! in my first try i did with stair with boundary arc but the results wasnt well. mmm would you mind tell me step by step how did you got that arc slab, plz :o). i'm a expert with Autocad an d i`m trying to emigrate to Revit and many things are difficult to understand the Revit plataform. :oP Thanks for your help and support JTERRELL!
|
This user is offline |
|
|
|
active
Joined: Thu, Mar 9, 2006
118 Posts
|
look at this pdf file
|
This user is offline |
View Website
|
|
|
active
Joined: Sun, Apr 8, 2007
17 Posts
|
THANK YOU VERY MUCH JTERRELL!!!!! AMAZING TUTORIAL! :OD
|
This user is offline |
|
|
|
