Forums >> Revit Building >> Tips & Tricks >> Curved roof!!
|
|
|
active
Joined: Wed, Mar 31, 2004
21 Posts
No Rating |

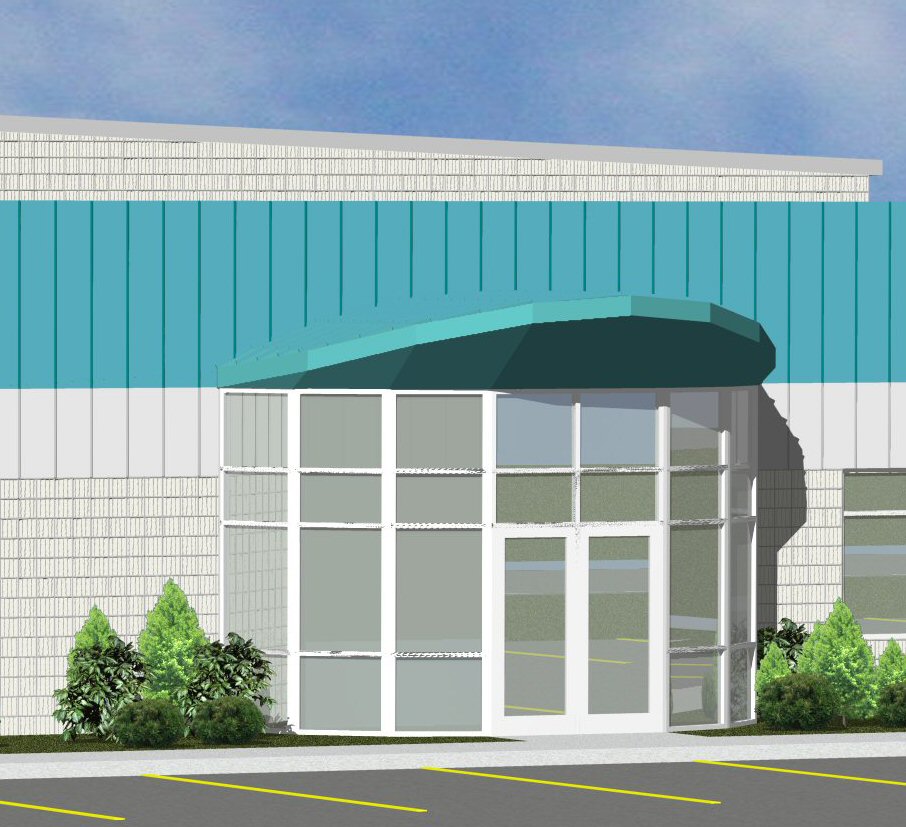

I'm trying to recrate this roof, i think it might have been done in ADT i'm not sure, how can i do this in Revit!
|
This user is offline |
|
 | |
|
|
active
Joined: Wed, Mar 29, 2006
197 Posts
 |
Try doing a Roof by Extrusion. You will need to be in the elevation view to use Roof by Extrusion. Then go to a roof plan, and draw a void that will cut the corners off of the roof. Then do a Cut Geometry. Without trying myself, this is my best guess. Cool looking roof. If the first method doesn't work you can use Roof by Face. To do this you would use the massing tools to make a face that is the shape you want. Then, start your Roof by Face and select the face you want. One of these (if not both) will work. Good Luck and Happy Roofing
-----------------------------------
ArchWestCY |
This user is offline |
|
|
|
