Forums >> Revit Structure >> Technical Support >> Beam/Beam Intersections of Multiple Depths - Hidden lines?

weidengnr79

active

Joined: Thu, Mar 22, 2007
3 Posts
No Rating

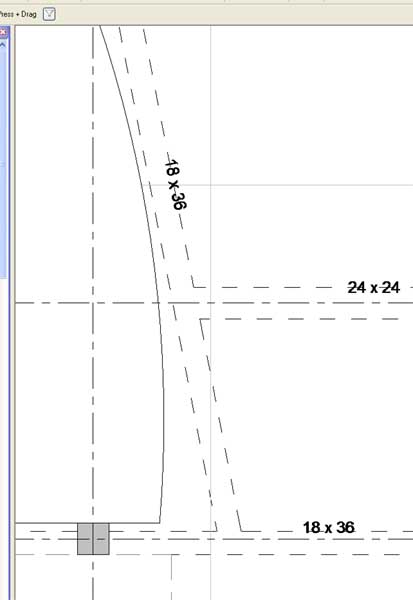

When I have a situation where one larger concrete beam supports a smaller concrete beam, I'm trying to get Revit Structure to display the hidden line at the interface correctly. Since the beams are of varying depths, there should be a dashed line at their intersection plane to indicate the hidden line beyond. Is there a way to get Revit to display this particular hidden line?
