Forums >> Revit Systems >> Technical Support >> Heavy End Tick Marks disappear

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Mar 17, 2007 at 4:03:33 AM | Heavy End Tick Marks disappear

#1

dashgarnett


active

Joined: Fri, Aug 11, 2006
14 Posts
No Rating


I finally found out how to edit the tick marks on dimensions.

 I select heavy ended tick marks and blammo they disappear! Any help. I want something that applies a heavier lineweight to the tick mark...seems it should work but it doesn't

 thanks in advance.



-


This user is offline



Tue, Jan 5, 2010 at 8:14:11 PM | Heavy End Tick Marks disappear

#2

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


Well, I can get the blasted things to show up . . . but they're flat rather than angled.  DRIVING ME CRAZY!


This user is offline



Thu, Jul 15, 2010 at 5:46:47 PM | Heavy End Tick Marks disappear

#3

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes

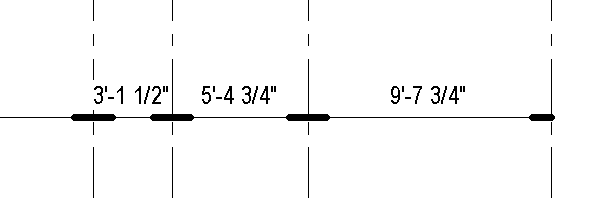

For what it's worth, revit 2011 has the SAME PROBLEM.  Cool heavy end tick marks . . . but flatter than crap.  I've attached a pic so you can see how wonderful they look.





Attached Images


This user is offline



Thu, Jul 15, 2010 at 5:54:29 PM | Heavy End Tick Marks disappear

#4

Bimman


active
Bimman Avatar

Joined: Wed, Dec 17, 2003
360 Posts
1 Stars: 2 Votes


when you selevt the prop for the dimension string, selct edit type and set the tick mark line weight to something larger than the number that is in that selection box. also check to make sure you do not have your drawing set to thin line.

-----------------------------------
PWD

This user is offline

View Website

Thu, Jul 15, 2010 at 6:04:05 PM | Heavy End Tick Marks disappear

#5

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes

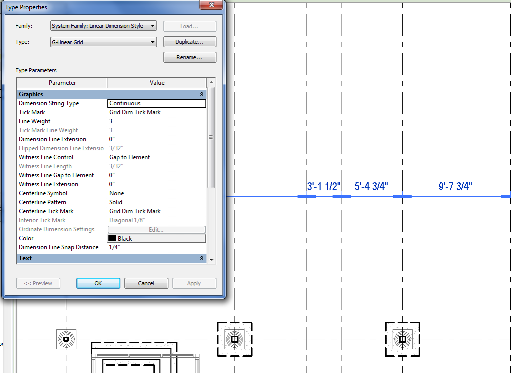

Tick Mark Line Weight is grayed out (unavailable option).  Not working in thin line mode (see attachment)


This user is offline



Thu, Jul 15, 2010 at 6:05:56 PM | Heavy End Tick Marks disappear

#6

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


file was too big the first time.  sorry

Attached Images


This user is offline



Thu, Jul 15, 2010 at 6:21:42 PM | Heavy End Tick Marks disappear

#7

Bimman


active
Bimman Avatar

Joined: Wed, Dec 17, 2003
360 Posts
1 Stars: 2 Votes


i have mine set to dia 1/8" and i can set my tick mark line wt.  but when i switch it to heavy ended i lose the abitily to adjust the tick mark.  so what i did was set my tick mark to 6 on 1/8" dia and then switched it to heavy ended and the tick mark line wt is 6.

-----------------------------------
PWD

This user is offline

View Website

Thu, Jul 15, 2010 at 6:53:34 PM | Heavy End Tick Marks disappear

#8

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


Works perfectly!



THANKS!!


This user is offline



Thu, Jul 15, 2010 at 6:55:44 PM | Heavy End Tick Marks disappear

#9

Bimman


active
Bimman Avatar

Joined: Wed, Dec 17, 2003
360 Posts
1 Stars: 2 Votes


glad i could help

-----------------------------------
PWD

This user is offline

View Website
