I am trying to put a void into a profile of a fascia and keep receiving this error: "Host can't be cut because it has no geometry." I am trying to create this void by creating an in place family. In sketch mode it looks exactly how I would like it but when I go to finish family, no deal. What's up with that?! Please help!
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Mar 6, 2007
46 Posts
No Rating |
Also fyi, I used the cut geometry tool to cut the void out of the fascia profile in the in-place family. like I said, it looks all good but when I go to finish family all I get is an error.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
I'm not sure what you are trying to do because your image file doesn't read. Why don't you start by building your family from the profile template? Profiles are formed from closed line-work that can not overlap. In other words, every line must meet another line at its end points. If you need a void in the profile, it can be another closed series of line-work that must be completely inside your perimeter. For instance, a pipe shaped profile could be a circle within a circle.
|
This user is offline |
|
|
|
active
Joined: Tue, Mar 6, 2007
46 Posts
No Rating |

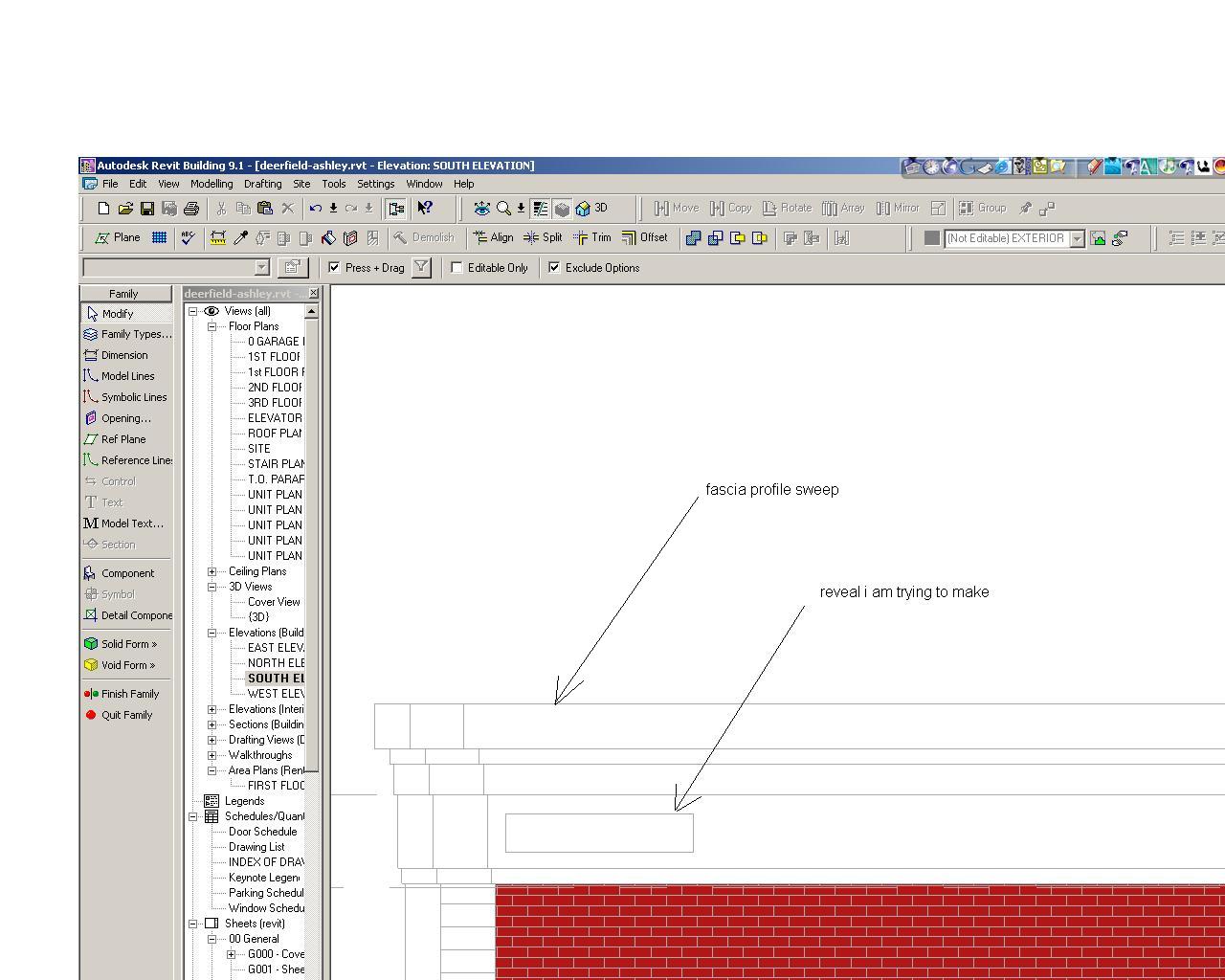

Here is the image again... hopefully it makes more sense.
|
This user is offline |
|
|
|
active
Joined: Tue, Mar 6, 2007
46 Posts
No Rating |
you might have to expand the window or hit the "expand to regular size button" to fully view the image
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Sorry - still doesn't make sense. I think you may be confused about what reveals / sweeps do. This looks like it may be some sort of fireplace mantle. If so, build it complete as a family.
|
This user is offline |
|
|
|
active
Joined: Tue, Mar 6, 2007
46 Posts
No Rating |

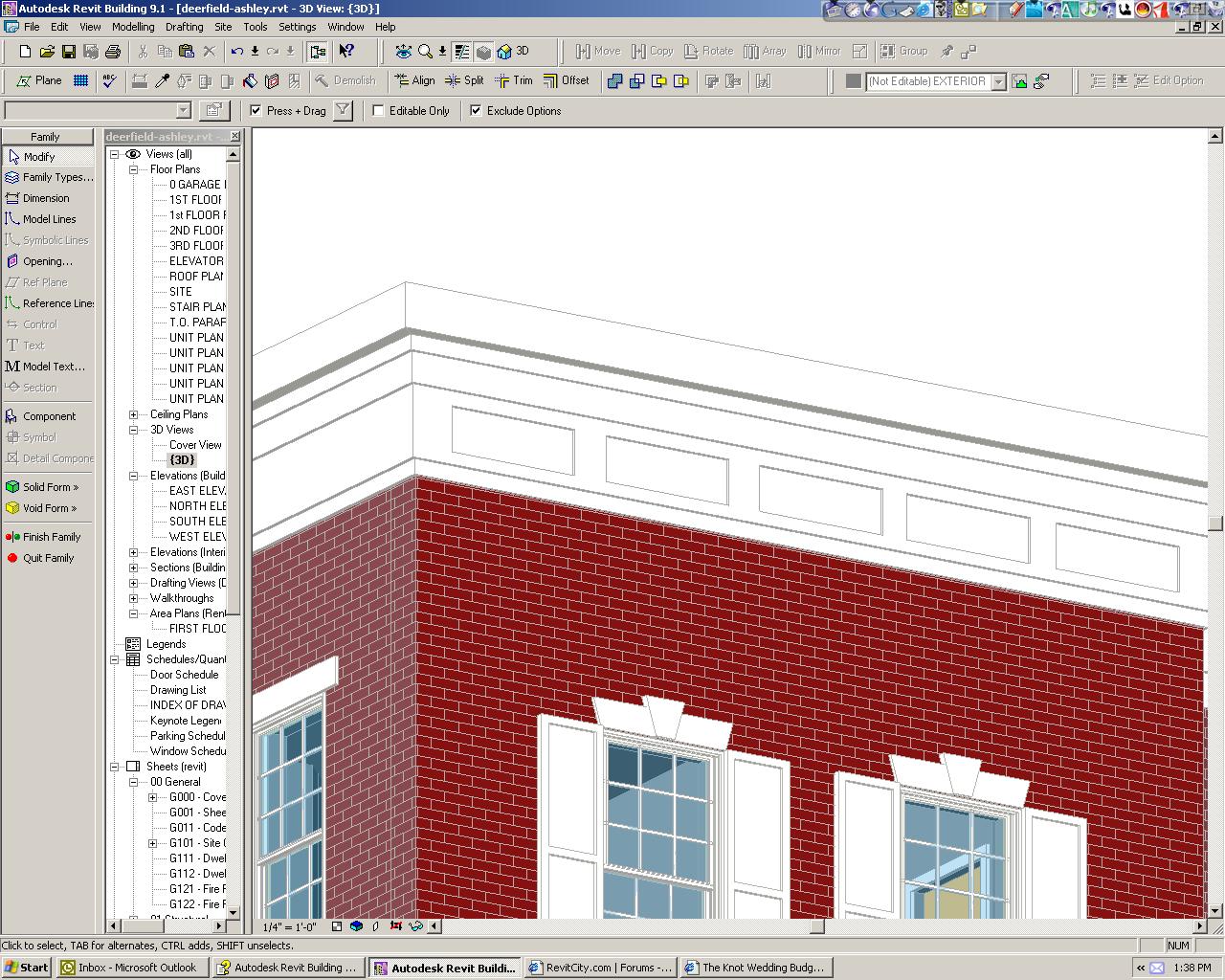

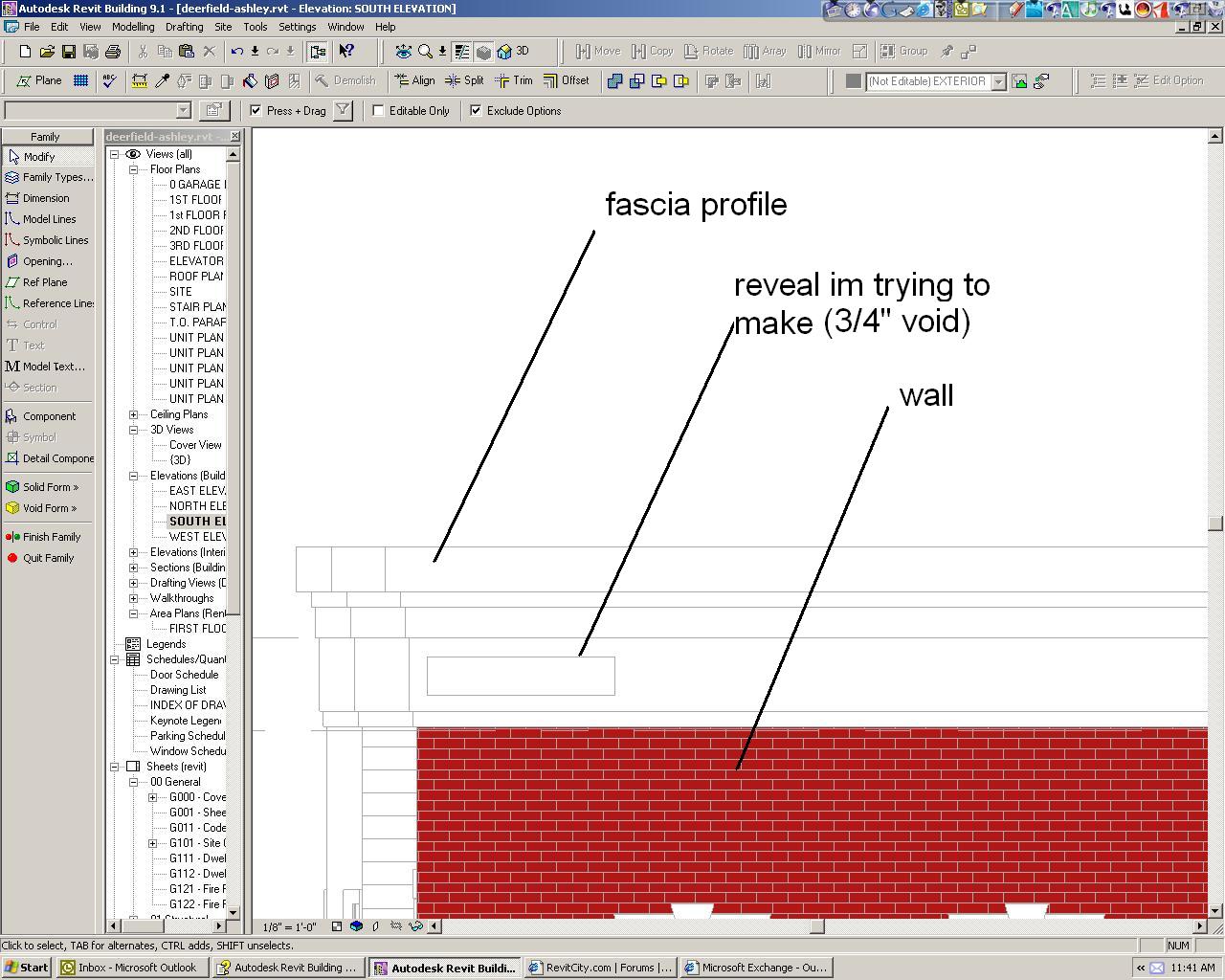

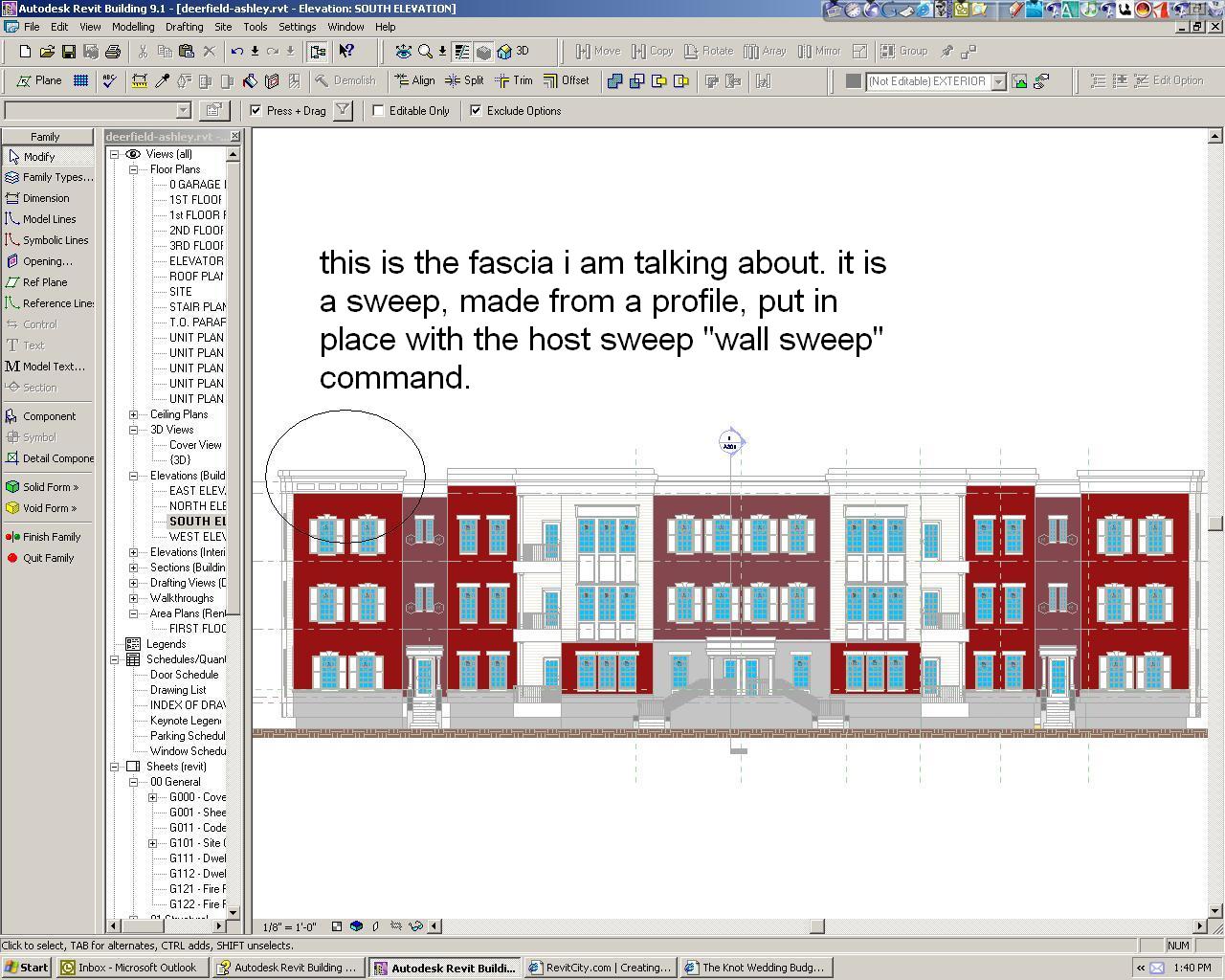

ok, lets try this again. the first image shows where on my building i am talking about. the second shows what i want it to look like. the printscreen is taken while im in the in-place family and looks correct but as soon as i hit the finish family button, no luck if i could build this as a complete family i would, but i want to use the profile/sweep for the fascia so i can attach it to any length wall. the plan was to then go back and cut out the reveals/voids.
|
This user is offline |
|
|
|
active
Joined: Tue, Mar 6, 2007
46 Posts
No Rating |
hmm... after i took that last screenshot and exited out of the family... it seemed to work. go figure. must the "overtheshoulder" theory. i don't know what the deal was before. thanks anyway.
|
This user is offline |
|
|
|
active
Joined: Tue, Mar 6, 2007
46 Posts
No Rating |
for anyone that's curious, the error i was making was that you have to select the wall as the initial work plane for void/solid extrusions with a create in-place family. Then once you're in sketch mode, set the work plane to the fascia or profile sweep you are working with. don't know if this will help anyone but i'm just glad to get it figured out.
|
