Forums >> Revit Building >> Technical Support >> Trimming Wall Sweeps

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jan 19, 2007 at 12:16:24 AM | Trimming Wall Sweeps

#1

ArchWestCY


active

Joined: Wed, Mar 29, 2006
197 Posts
4.5 Stars: 7 Votes

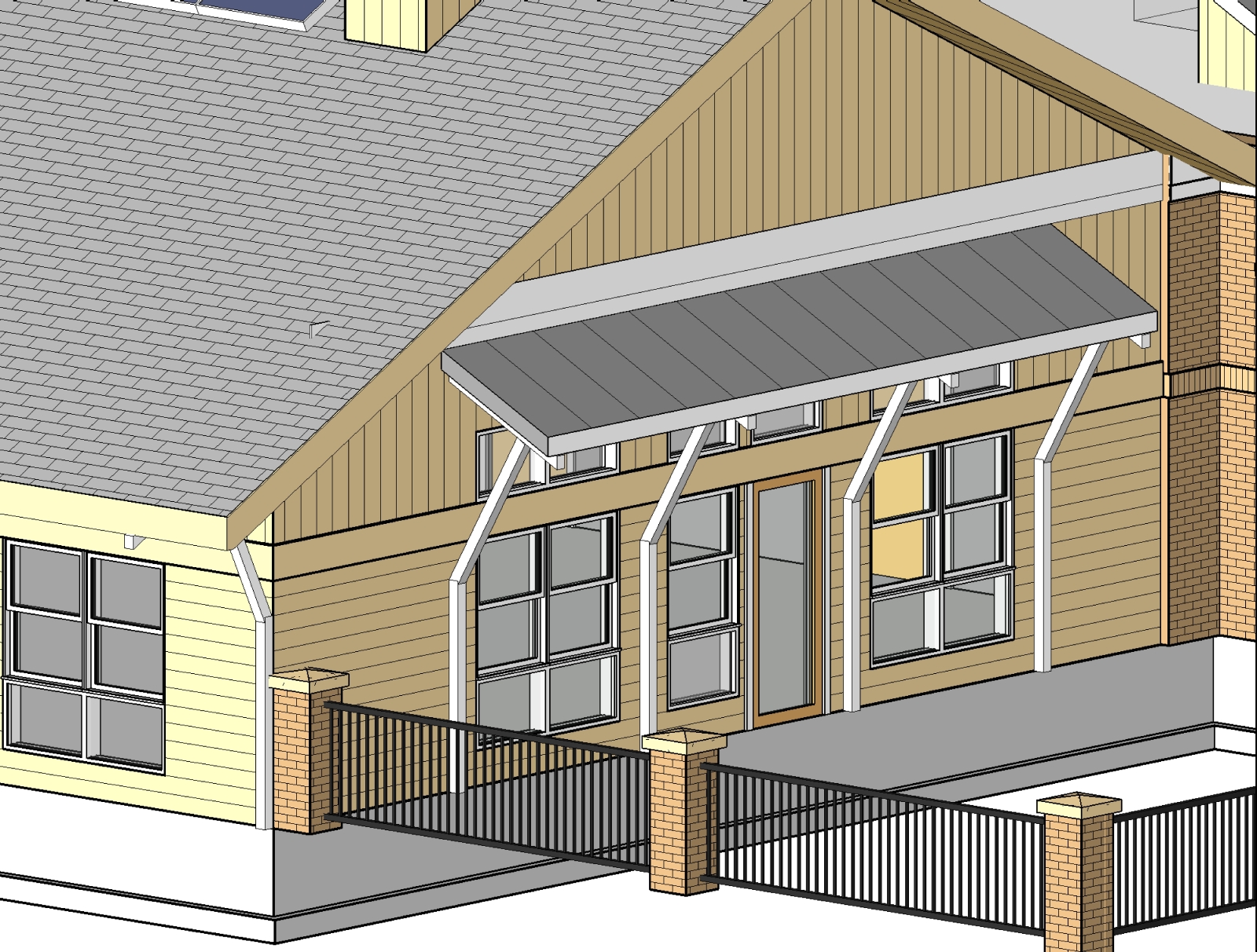

I have some trim on the side of a building that is just high enough that when it reaches the end of a wall it sticks out above the roof. See the attached file.  Is there a way to edit the profile of a wall sweep?  If I could just get the roof to cut the trim and remove the extra, I would be happy.

As always Thanks for the help.



Attached Images


-----------------------------------
ArchWestCY

This user is offline



Fri, Jan 19, 2007 at 1:05:18 AM | Trimming Wall Sweeps

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


click on it and drag it down

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Fri, Jan 19, 2007 at 2:55:14 PM | Trimming Wall Sweeps

#3

ArchWestCY


active

Joined: Wed, Mar 29, 2006
197 Posts
4.5 Stars: 7 Votes

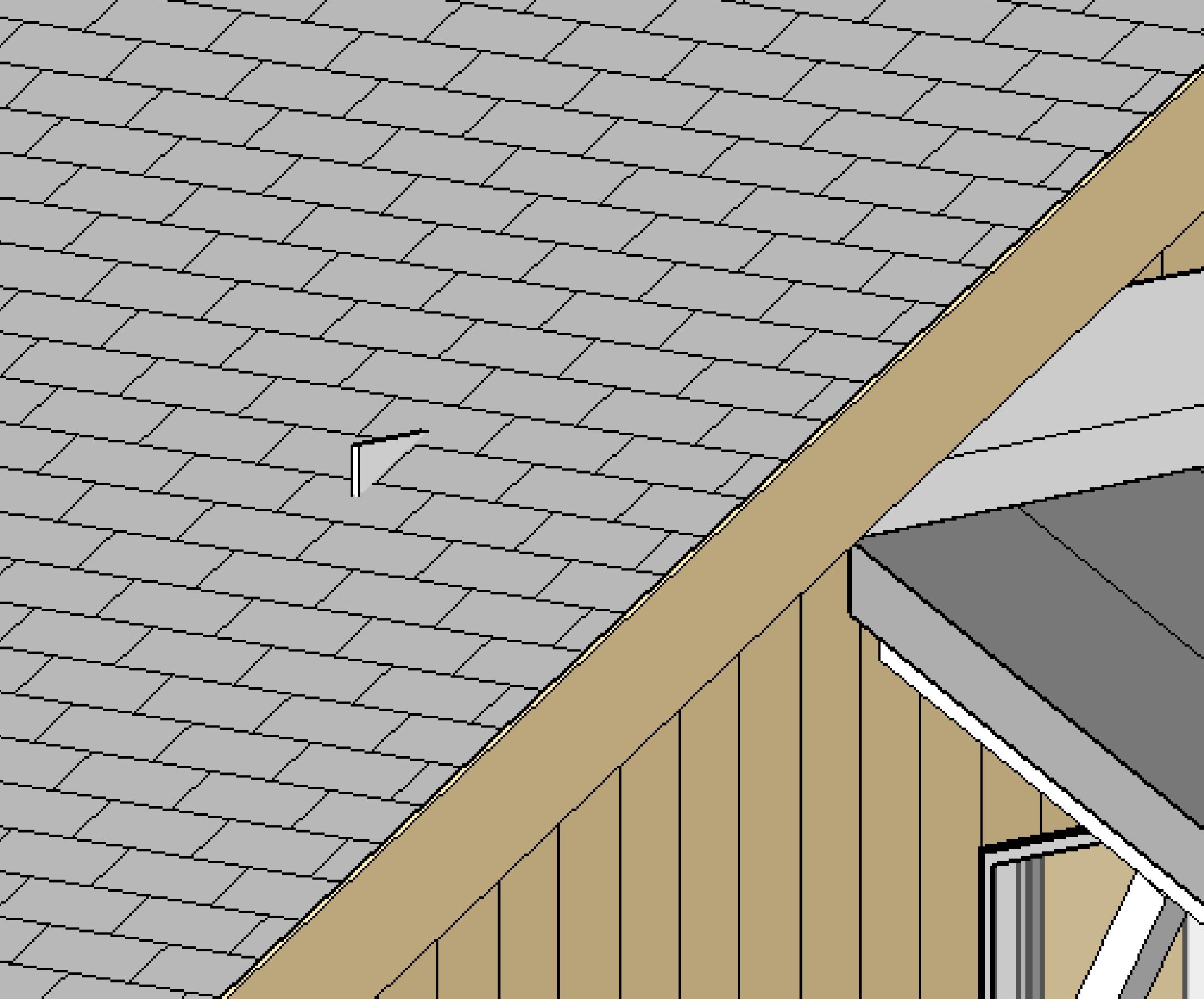

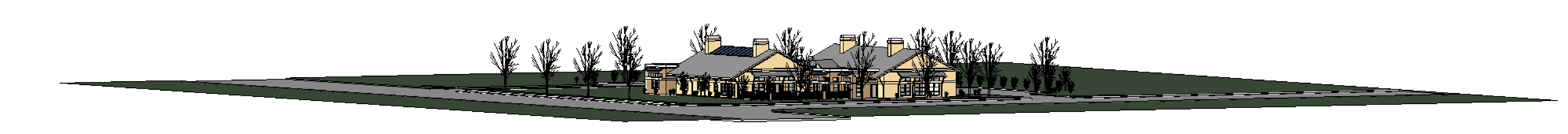

I tryed to click on the trim and then drag it back until it was no longer poking through the roof, but now I can see that the bottom edge doesn't go all the way to the end of the wall.  Is this the method you were referring to?  Does anyone know how to get the best of both worlds?  I would like the trim to go all the way to the edge of the wall without poking through the top of the roof.

Attached Images


-----------------------------------
ArchWestCY

This user is offline



Fri, Jan 19, 2007 at 3:26:27 PM | Trimming Wall Sweeps

#4

ArchWestCY


active

Joined: Wed, Mar 29, 2006
197 Posts
4.5 Stars: 7 Votes

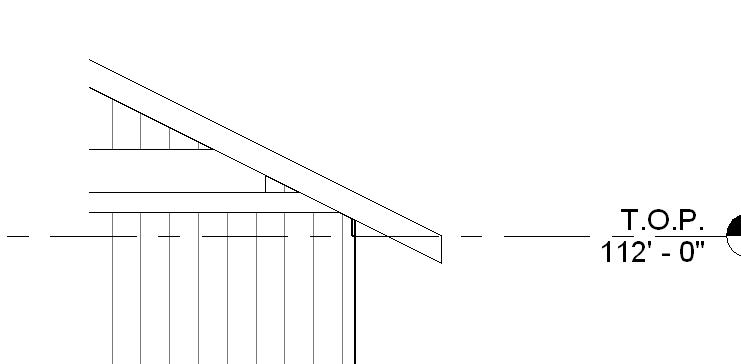

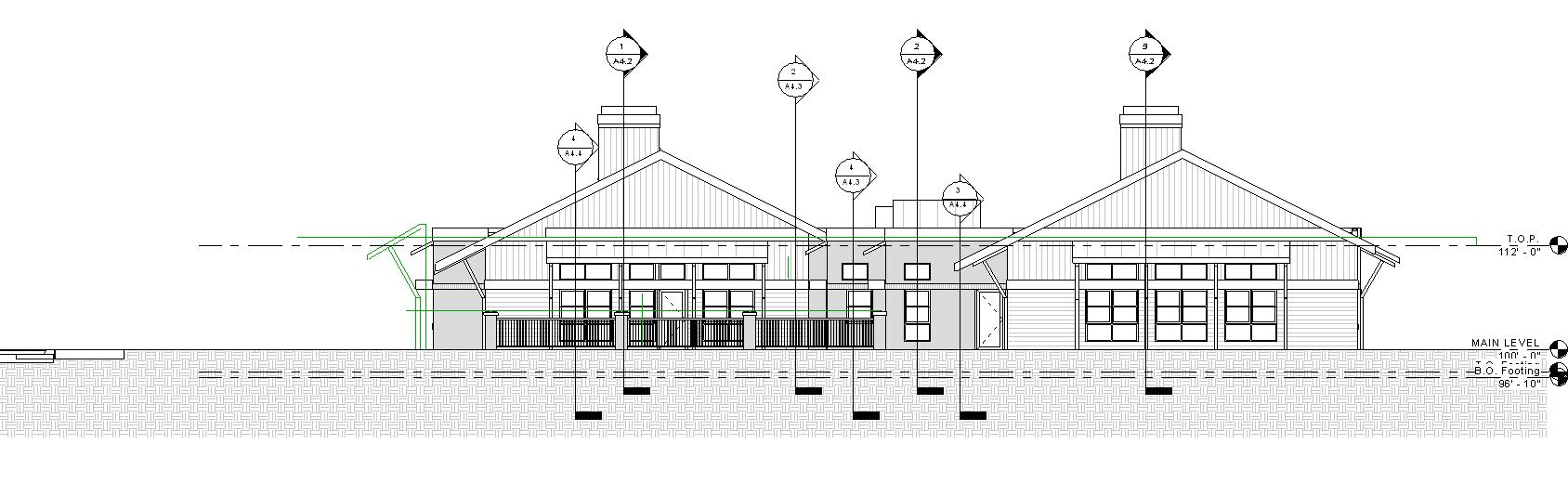

Well those photos didn't really tell the story.  Sorry.  Here is the hidden line image again.

Attached Images


-----------------------------------
ArchWestCY

This user is offline



Fri, Jan 19, 2007 at 10:44:14 PM | Trimming Wall Sweeps

#5

framerman


active

Joined: Tue, Jun 29, 2004
543 Posts
4 Stars: 12 Votes


what I found you have to do there is an in place family so you can use a void to clip the angle of the roof off.



not completely a great feature, the wall sweep


This user is offline

View Website
