Forums >> Revit Building >> Technical Support >> Punched hole in shear wall visibility issues

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Dec 20, 2006 at 9:18:30 PM | Punched hole in shear wall visibility issues

#1

MrCampy


active

Joined: Mon, Oct 31, 2005
14 Posts
No Rating

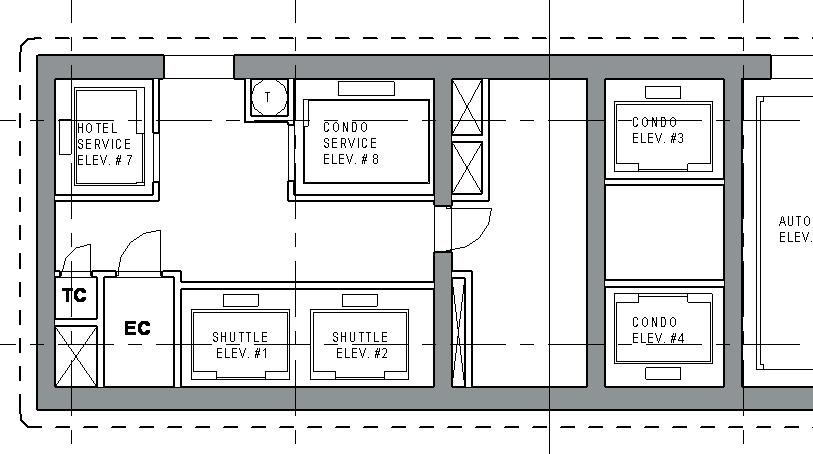

When I punch a  hole in a concrete wall to have an opening, there are lines left on the concrete floor that seem to indicate that we have a threshold even though we do not. I have checked all visibility issues and view depths and still cannot rid myself of these lines. They plot and they are visible on screen and I do not want them to be. Any ideas? I have attached an jpeg of the area in question with the lines visible. Any help would be greatly appreciated.

Attached Images


This user is offline



Tue, Dec 26, 2006 at 10:19:43 PM | Punched hole in shear wall visibility issues

#2

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


Does your wall continue down further than the floor level?



If you cut a section at the threshold it may be clearer.




-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website
