Forums >> Revit Building >> Technical Support >> Angling Wall Sweeps

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Oct 20, 2006 at 3:42:21 PM | Angling Wall Sweeps

#1

MrBob


active

Joined: Thu, Oct 19, 2006
63 Posts
3 Stars: 2 Votes


I want to put a freize board where the wall meets the roof. I was going to use wall sweeps but I can't figure out to get the wall sweeps to angle where there is a gable roof. Is this possible with wall sweeps or do I need to look at doing it differently? Any help would be appreciated. Thanks.

This user is offline



Fri, Oct 20, 2006 at 3:54:56 PM | RE: Angling Wall Sweeps

#2

framerman


active

Joined: Tue, Jun 29, 2004
543 Posts
4 Stars: 12 Votes


The best way I found is to use a roof fascia sweep, attach it to the outside edge of the roof, then you have to manually move it against the wall. Hope this helps

This user is offline

View Website

Fri, Oct 20, 2006 at 5:08:20 PM | RE: Angling Wall Sweeps

#3

MrBob


active

Joined: Thu, Oct 19, 2006
63 Posts
3 Stars: 2 Votes


Thanks Framerman! Just what I needed.

This user is offline



Fri, Jan 4, 2008 at 4:56:43 PM | Angling Wall Sweeps

#4

BRIANDHADLEY


active

Joined: Thu, Jun 8, 2006
64 Posts
1 Stars: 1 Votes


Is there an easier way to do this?


This user is offline



Sat, Sep 25, 2010 at 1:16:30 AM | Angling Wall Sweeps

#5

ckplanners


active

Joined: Thu, Aug 26, 2010
3 Posts
No Rating


Use reference lines. not reference planes to make the angle reference you need. Reference lines have end points and are designed specifically for that purpose.

I hope this helped.


This user is offline

View Website

Mon, Aug 15, 2011 at 5:32:02 PM | Angling Wall Sweeps

#6

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes


Did this change for version 2011?  I created a roof fascia but it will not let me move it.  We jumped a few versions and am still trying to figure out where things are.  How do you make a reference line?


This user is offline

View Website

Mon, Aug 15, 2011 at 6:04:53 PM | Angling Wall Sweeps

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


There is a vertical profile offset that can be used to move teh facia up/down in relation to the roof edge.



BTW - The poster above yours that said to use reference lines .... If they know how to have reference lines in the model, I would like to know.  They are available in the family editor, including in-place families but not in the model environment.


This user is offline



Mon, Aug 15, 2011 at 6:10:35 PM | Angling Wall Sweeps

#8

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes


How do you move it back to the wall @ gable roof locations?


This user is offline

View Website

Mon, Aug 15, 2011 at 6:26:41 PM | Angling Wall Sweeps

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes

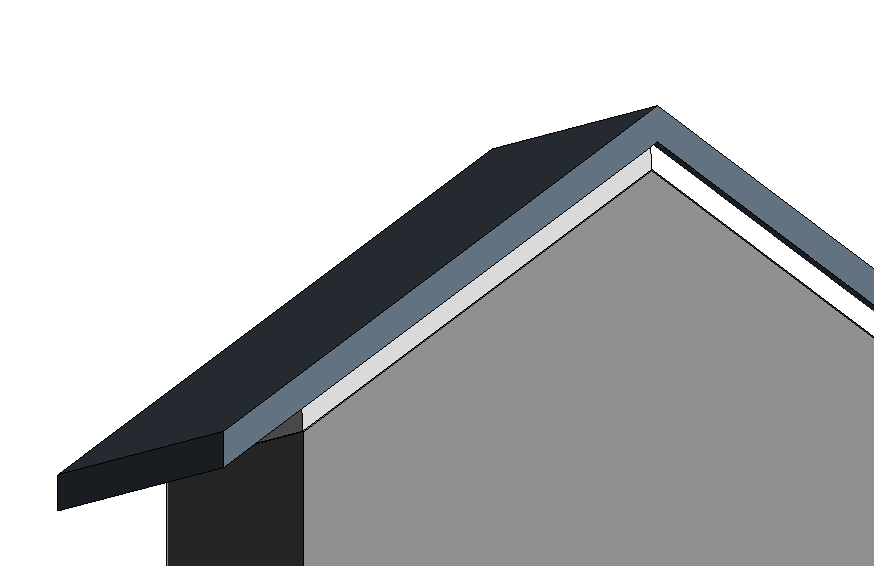

There is also a horizontal offset but your question suggests you need a different solution.  Attached is a simple in-place sweep that will automatically join at the corners.



Edited on: Mon, Aug 15, 2011 at 1:27:13 PM

Attached Images


This user is offline
