Tue, Oct 10, 2006 at 1:13:21 PM | A Sloped Curve Wall

#1

m10allen


active

Joined: Mon, Oct 9, 2006
7 Posts
No Rating


I have viewed several postings on sloping walls and I have tryed them also and have found that I must be doing something wrong. Can anyone provide me with a step-by-step way to create a sloped top, curved wall? Or point me in the direction to find this help. Thanks.

This user is offline



Tue, Oct 10, 2006 at 2:09:40 PM | RE: A Sloped Curve Wall

#2

stevelj


active

Joined: Mon, Jan 9, 2006
23 Posts
No Rating


Just use a ref plane. Set the angle you want and use attach top to make it so.

This user is offline



Tue, Oct 10, 2006 at 2:31:16 PM | RE: A Sloped Curve Wall

#3

m10allen


active

Joined: Mon, Oct 9, 2006
7 Posts
No Rating


Thanks, Steve!!! It worked perfectly!!!

This user is offline



Thu, Aug 7, 2008 at 7:17:30 PM | A Sloped Curve Wall

#4

AbelGoddard


active
AbelGoddard Avatar

Joined: Fri, Mar 28, 2008
15 Posts
No Rating

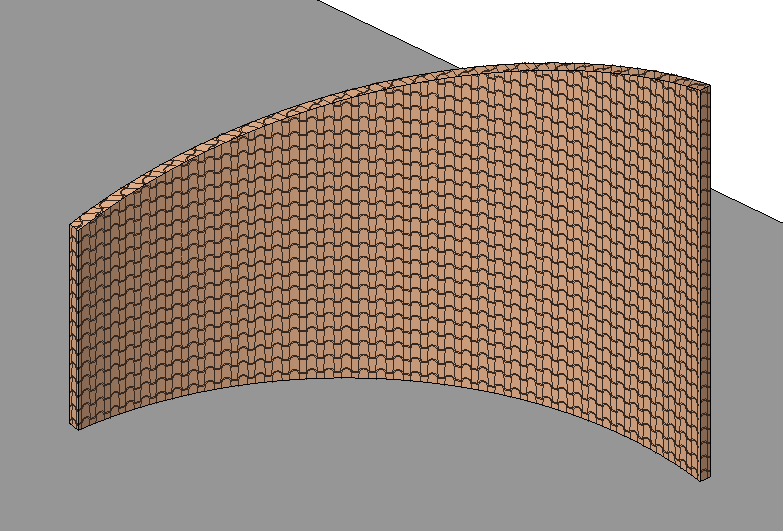

May have worked perfectly for HIM, but see attached for what MINE looks like. NOT perfect.  :-(

Attached Images


-----------------------------------

Helping you Be Able to be the person you want to be!

Sign up for my free newsletter, Being Able, at http://www.AbelGoddard.com

This user is offline

View Website

Thu, Aug 7, 2008 at 7:51:48 PM | A Sloped Curve Wall

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


ABEL, i don't forgot this question, but right now i'm in the middle of a render, when "HE" finish i take a look of this, OK?

I think it could better use REFERENCE LINES and nor REF. PLANES but will see....





Edited on: Thu, Aug 7, 2008 at 3:11:12 PM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Aug 7, 2008 at 8:52:25 PM | A Sloped Curve Wall

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


Abel ... you found out what happens when you take the advice that was given.  You want the top of the wall flat across the normal (pirpendicular) and the previous advice will not do that.  In 2009, you could create your wall as an inplace blended sweep.

This user is offline



Thu, Aug 7, 2008 at 9:16:53 PM | A Sloped Curve Wall

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

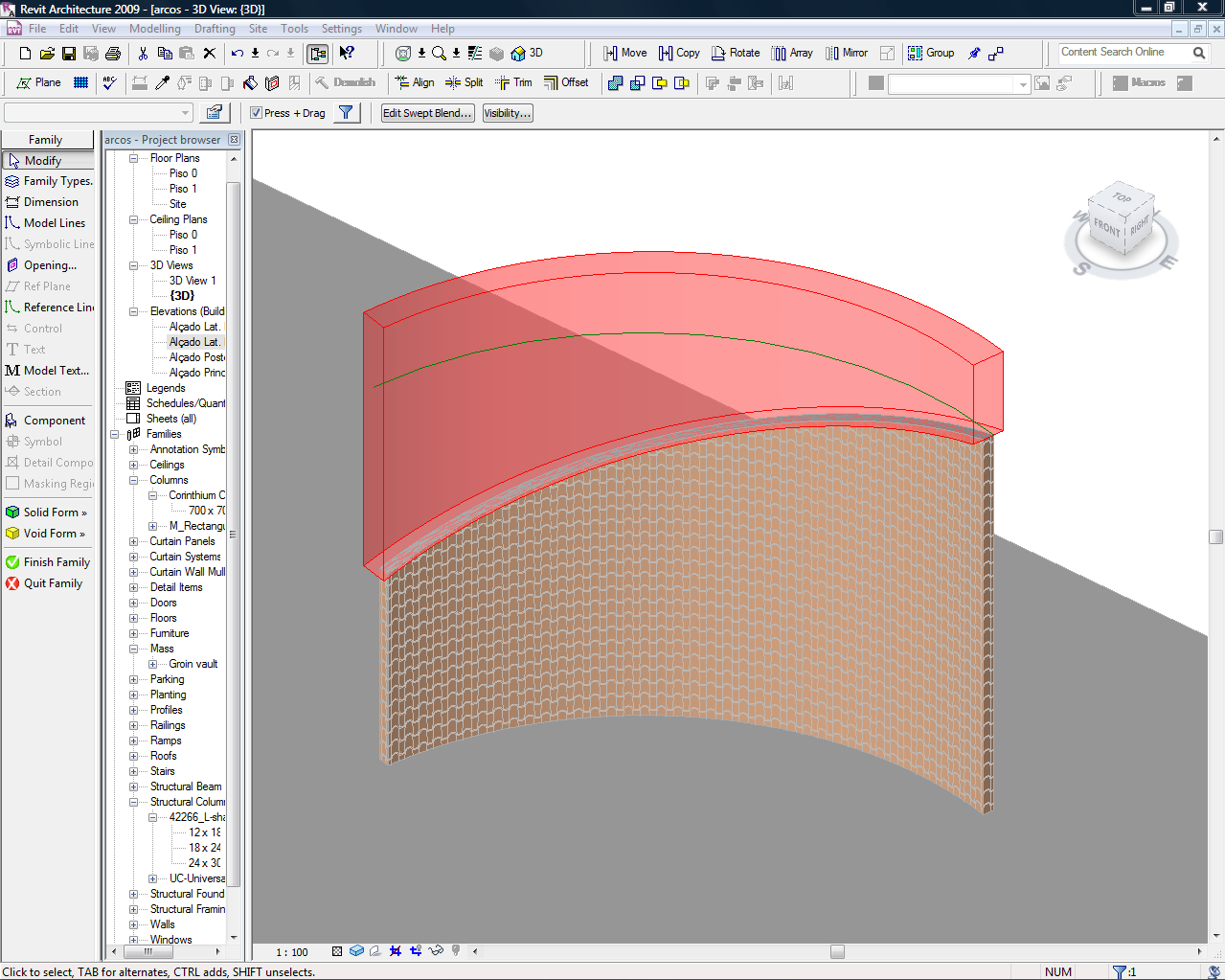

Hi abel, you dont need REF PLANE or REFERENCE LINE, WWHUb was right, a "Void Sweep"solve the problem...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Aug 7, 2008 at 9:17:27 PM | A Sloped Curve Wall

#8

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


i like the inplace blended sweep suggestion also.

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline
