Forums >> Revit Building >> Technical Support >> Rotating View Titles

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Sep 25, 2006 at 6:31:09 PM | Rotating View Titles

#1

dwallis


active

Joined: Thu, Nov 17, 2005
1 Posts
No Rating


I've rotated my viewport 90 degrees on the sheet, but the viewport title rotated 90 as well. Does anyone know how to keep the viewport rotation intact while rotating the view?

This user is offline

View Website

Fri, Feb 6, 2015 at 5:07:56 AM | Rotating View Titles

#2

KYLIEBRAITHWAITE


active

Joined: Wed, Aug 6, 2014
0 Posts
No Rating


i am also having this problem. i created a dupilicate view title (rotated 90degrees) having difficulty changing the view title to my new view title.



all help welcome


This user is offline



Fri, Feb 6, 2015 at 5:52:08 AM | Rotating View Titles

#3

KYLIEBRAITHWAITE


active

Joined: Wed, Aug 6, 2014
0 Posts
No Rating


http://blogs.rand.com/architectural/2014/08/view-titles-for-views-rotated-on-the-sheet.html



THIS IS GREAT. EXPLAINS IT WELL AND IT WORKS........BUT........



MY VIEW NAME, VIEW SCALE AND NUMBER HAVE ROTATED BUT NIOT THE CIRCLE AND LINE!!!!!!!!!!!






This user is offline



Fri, Feb 6, 2015 at 7:04:53 AM | Rotating View Titles

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Why are you rotating view titles?  If you click on a view on a sheet, you will see the option on the option's bar to rotate the view on the sheet.   The view title will rotate with it.


This user is offline



Fri, Feb 6, 2015 at 9:08:00 AM | Rotating View Titles

#5

KYLIEBRAITHWAITE


active

Joined: Wed, Aug 6, 2014
0 Posts
No Rating


we want the view rotated but not the view title.



if you untick 'extension line' in edit type then you won't have the (unrotated) line mucking up your rotated view title family type.

ps. if view is rotated 90 degrees anti-clockwise, rotate the view title in teh family 90 degrees clockwise (do opposite).

hope this makes sense Smile


This user is offline



Fri, Feb 6, 2015 at 9:11:42 AM | Rotating View Titles

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


If you want the view rotated instead of the rotate view on the sheet, then rotate the view!   In the view, pick the crop window and rotate it.  All model elements and dimensions will rotate.  Tags and text will stay normal with the rotated view but will stay in the new location.


This user is offline



Fri, Feb 6, 2015 at 9:19:40 AM | Rotating View Titles

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Look at the attached.   Copied with detailing plan views.... All the same model and same sheet.



Edited on: Fri, Feb 6, 2015 at 9:32:28 AM

Attached Images


This user is offline



Fri, Feb 6, 2015 at 10:03:36 AM | KYLIEBRAITHWAITE

#8

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


Quoting KYLIEBRAITHWAITE from 2015-02-06 09:08:00

"

we want the view rotated but not the view title.



if you untick 'extension line' in edit type then you won't have the (unrotated) line mucking up your rotated view title family type.

"

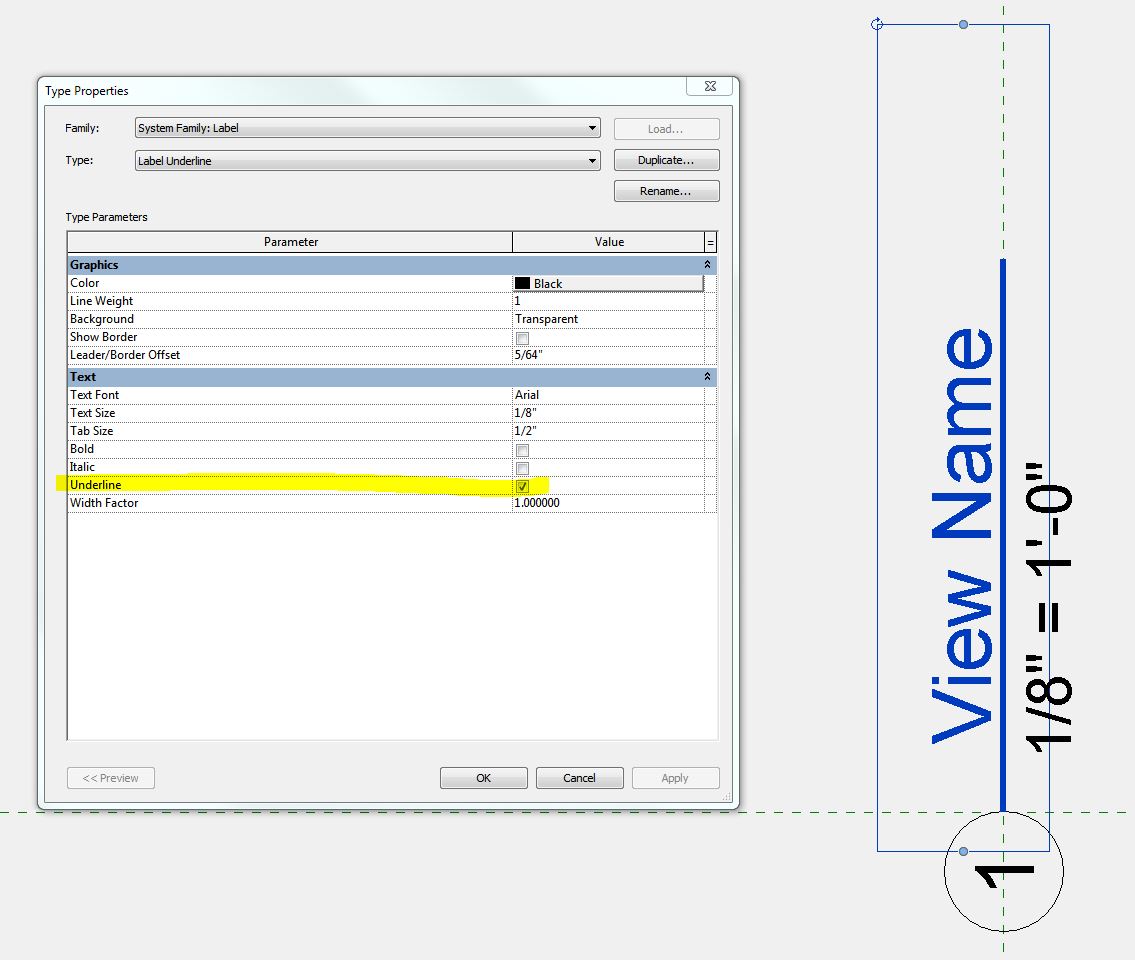

You can use underline text in your label, to get the extension line. It will adjust to the text length.



Attached Images


This user is offline



Fri, Feb 6, 2015 at 11:21:52 AM | Rotating View Titles

#9

KYLIEBRAITHWAITE


active

Joined: Wed, Aug 6, 2014
0 Posts
No Rating


OH I SEE WHAT YOU MEAN NOW WWHUB!

I DIDNT KNOW YOU COULD ACTIVATE VIEW AND ROTATE VIEW THAT WAY WITHOUT MOVING VIEW TITLE ALONG WITH IT.

I HAVE MY SHEETS SET UP AND ALIGNED SO WILL KEEP IT THE WAY I HAVE IT AS THIS ALSO WORKS.



THANKS FOR UNDERLINE LABEL TIP Smile


This user is offline



Fri, Feb 6, 2015 at 11:30:25 AM | Rotating View Titles

#10

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


I've answered this question many times over the years and it seems it is always hard to get across.   I had never done the image of the 3 possibilities before and I should have.



BTW - The rotate view on sheet is only 90 degree increments but the rotate view is any angle.  Really usefull if you have a portion of your plan at an angle.  Simply rotate the view to work in that area and everything in that area will be orthographic 0/90 while working.


This user is offline



Sun, Feb 8, 2015 at 2:10:09 PM | Rotating View Titles

#11

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


Unfortunately, rotating the view is ‘messing up’ the annotations. Could be an issue when all the annotations are already in place. Personally, if I have to rotate the view (let’s say for a few plots on a different paper size, other than it was set up at the beginning), I do it on the sheet without rotating the view title though. To read the drawing, one needs to rotate the sheet, and the view title calls for that.

Just my 2 cents.


This user is offline
