Tue, Sep 12, 2006 at 2:44:19 PM | Help making a family

#1

allstate45


active
allstate45 Avatar

Joined: Thu, Jan 26, 2006
77 Posts
3 Stars: 2 Votes

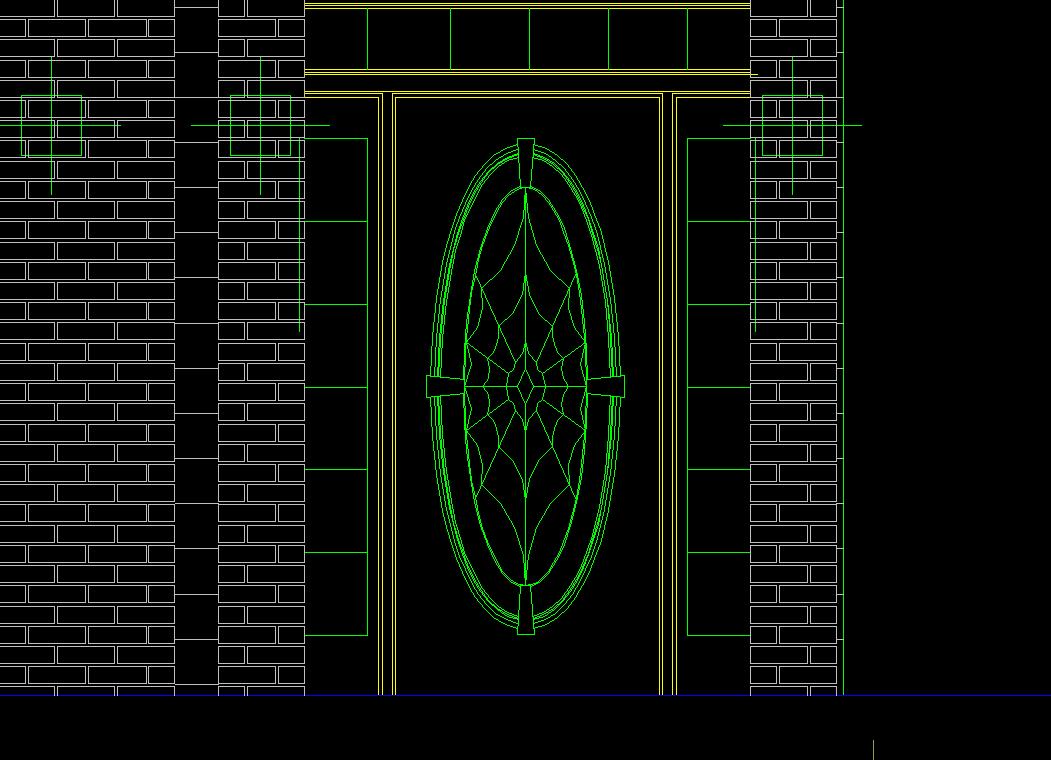

I am not know how to make a door family. I need to design a door with a design in the middle. I was hoping that someone could design it for me. If someone could I would really appreciate it. Here is the door. Oh just found out that I have to make a matching window with the same design

Attached Images


This user is offline

View Website

Tue, Sep 12, 2006 at 2:56:26 PM | RE: Help making a family

#2

rubiks cube


active

Joined: Mon, Jul 5, 2004
31 Posts
No Rating


I would start by first cutting an oval hole in the door using VOID EXTRUDE then and EXTRUSION along an oval shaped path which will define your frame. Then a thin oval EXTRUSION for your glazing Then 4 EXTRUSIONS for the 4 mullions. Then 3D LINEWORK lines for the design in the middle Add oval trim EXTRUDE cc

This user is offline



Tue, Sep 12, 2006 at 3:31:56 PM | RE: Help making a family

#3

derxaj


active

Joined: Thu, Oct 13, 2005
91 Posts
3.5 Stars: 3 Votes


Yah...I would create it exactly like Rubicks described....if you're really new to this, which it seems like you are, the one thing you might not understand from the way Rubicks explained it is to create the extrustions on the correct working planes. You can create extrustions based on any plane in the project, either reference planes drawen in, or planes of faces from previously created soilds. It takes a different mindset to work in 3D then it does in 2D CAD, and it takes some people awhile to grasp the concepts, but whatever you do don't let someone else create it for you, do it yourself, or else you'll never learn. Adam

This user is offline



Tue, Sep 12, 2006 at 4:14:55 PM | RE: Help making a family

#4

allstate45


active
allstate45 Avatar

Joined: Thu, Jan 26, 2006
77 Posts
3 Stars: 2 Votes


Thanks guys. I'm working on it now. I am just modifing an existing door. I will post it when I am finished.

This user is offline

View Website

Tue, Sep 12, 2006 at 4:41:03 PM | RE: Help making a family

#5

allstate45


active
allstate45 Avatar

Joined: Thu, Jan 26, 2006
77 Posts
3 Stars: 2 Votes


I draw the spider web on the wrong Ref plane. how do i move it to the right one?

This user is offline

View Website

Tue, Sep 12, 2006 at 5:08:03 PM | RE: Help making a family

#6

derxaj


active

Joined: Thu, Oct 13, 2005
91 Posts
3.5 Stars: 3 Votes


Select the lines and change the reference planes...you might have to pick each one seperately not selecting them all, or you can just cut and paste them to the right plane

This user is offline
