Forums >> Revit Building >> Technical Support >> wall recess problem

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Sep 11, 2006 at 5:34:24 PM | wall recess problem

#1

ishpalsingh


active

Joined: Thu, Feb 9, 2006
6 Posts
No Rating

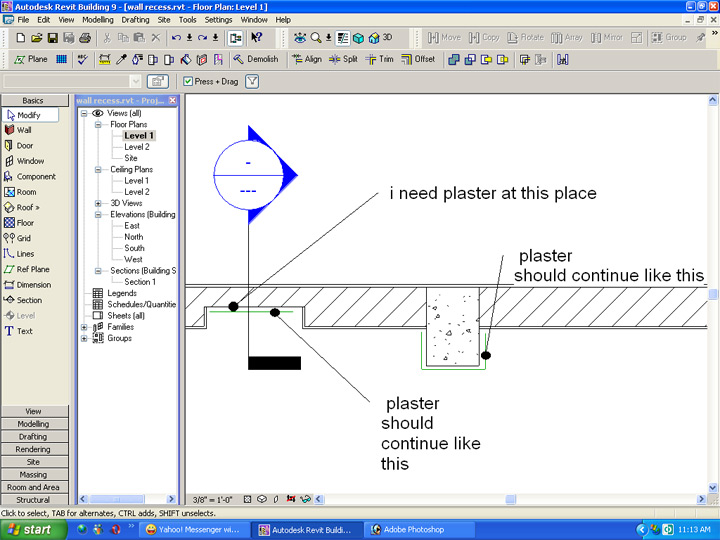

i created a wall type with 9" brick core and 0.5" th plaster on both sides i.e total 10" thick wall when i created a niche family from a generic wall based family by cut geometry with void tool and inserted into that 10" wall, the plaster layer does not wrap itself on the cut in plan and section i checked with wrap at ends and wrap at inserts both i am confused plz help

Attached Images


This user is offline



Mon, Sep 11, 2006 at 5:35:20 PM | RE: wall recess problem

#2

ishpalsingh


active

Joined: Thu, Feb 9, 2006
6 Posts
No Rating

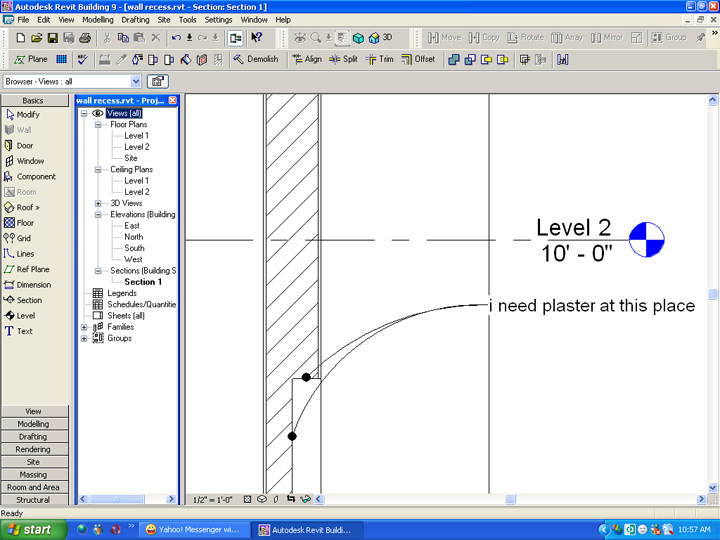

section

Attached Images


This user is offline



Mon, Sep 11, 2006 at 10:27:08 PM | RE: wall recess problem

#3

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 91 Votes


Wrap at inserts only works on inserts that use an opening rather than a void... Best bet would be to model the finishes parametrically within the niche family.

This user is offline

View Website

Tue, Sep 12, 2006 at 2:11:08 AM | RE: wall recess problem

#4

ishpalsingh


active

Joined: Thu, Feb 9, 2006
6 Posts
No Rating


did u mean over the column also that means i have to model it in columnfamily but how will u remove the joint line? as it won't do with joint geometry also when i click save while working in a file revit creates 2-3 backup file at the same place is there any setting where i can reduce the number Post edited on 2006-09-11 21:21:24

This user is offline



Tue, Sep 12, 2006 at 5:18:09 AM | RE: wall recess problem

#5

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 91 Votes


That's correct join geometry will not work in this circumstance. You'd either have to put up with it or model small bits of plasterboard wall separately, as well as a plasterboard floors... Will be a nightmare to change though. I'd put up with the lines and use the linework tool to remove them where they are an issue. HTH.

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website
