Tue, Aug 29, 2006 at 6:46:05 PM | multi-faceted roof

#1

gdoorn


active

Joined: Thu, Jan 26, 2006
118 Posts
1 Stars: 1 Votes

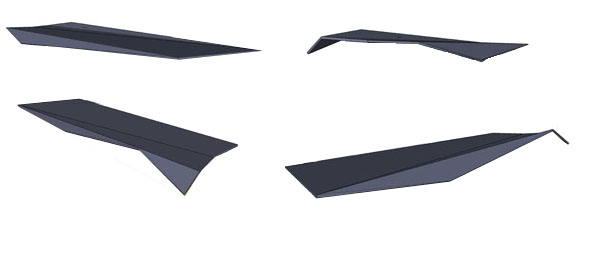

i have a roof that a simple roof-by-footprint cant handle. the slope of each component is not perpendicular to the edge of the roof. what is the best way to create an roof like this. it has an irregular footprint, and 5 faceted sides, each with a different slope. are there any ideas? thank you

Attached Images

3d views1.jpg

This user is offline



Wed, Aug 30, 2006 at 9:59:50 AM | RE: multi-faceted roof

#2

gdoorn


active

Joined: Thu, Jan 26, 2006
118 Posts
1 Stars: 1 Votes


does anyone know? this is annoying me to no end Post edited on 2006-08-30 11:54:25

This user is offline



Wed, Aug 30, 2006 at 6:49:43 PM | RE: multi-faceted roof

#3

archdan


active

Joined: Wed, Nov 10, 2004
82 Posts
3.5 Stars: 2 Votes


I can think of two quick ways you can model it. Either model in separate pieces and then join the pieces together, or model it as an inplace roof family using solids and voids.

This user is offline



Mon, Jul 2, 2007 at 2:35:15 PM | multi-faceted roof

#4

jboelkins


active

Joined: Tue, Mar 6, 2007
1 Posts
No Rating


i've built all the sections of a roof that actually do have a side that defines the slope, then exported them to autocad.  for the sections that have a cross-slope (no edge that defines the slope) i trace their perimter in autocad with a 3d polyline & then extrude it.  from there, you can inport it inside of creating a mass, then convert it to a roof by face.  this will at least allow you to assign the same properties to this part of the roof as the others that were created inside revit.  if you manage your exports and imports carefully, you can keep it fairly streamlined so you can edit the imported sections as needed.  hopt this helps.
