Mon, Aug 21, 2006 at 6:48:39 AM | shaped opening on curved wall.

#1

mmetin


active
mmetin Avatar

Joined: Sun, Jun 5, 2005
46 Posts
No Rating


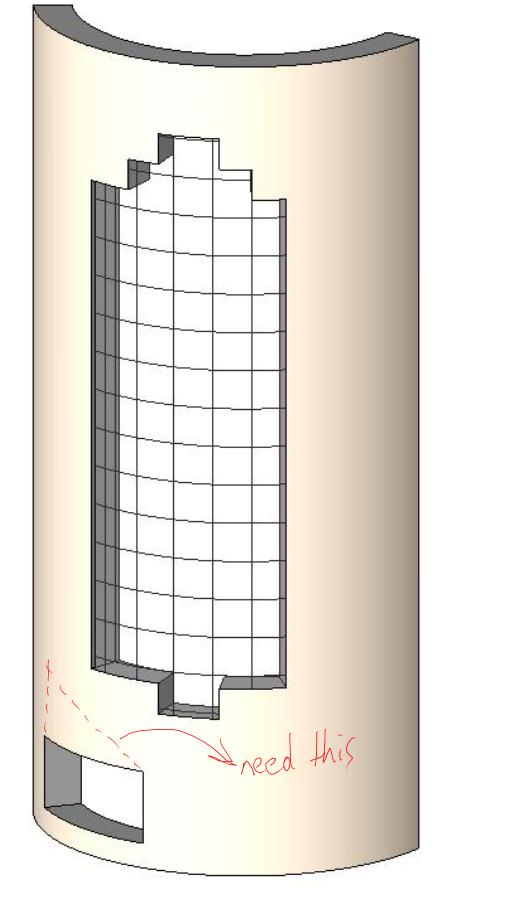

is there a way to cut curved walls by a shaped opening (triangular or curvy linear).. edit profile works on straight walls but not in curved ones.

Attached Images


This user is offline

View Website

Mon, Aug 21, 2006 at 10:26:17 PM | RE: shaped opening on curved wall.

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes

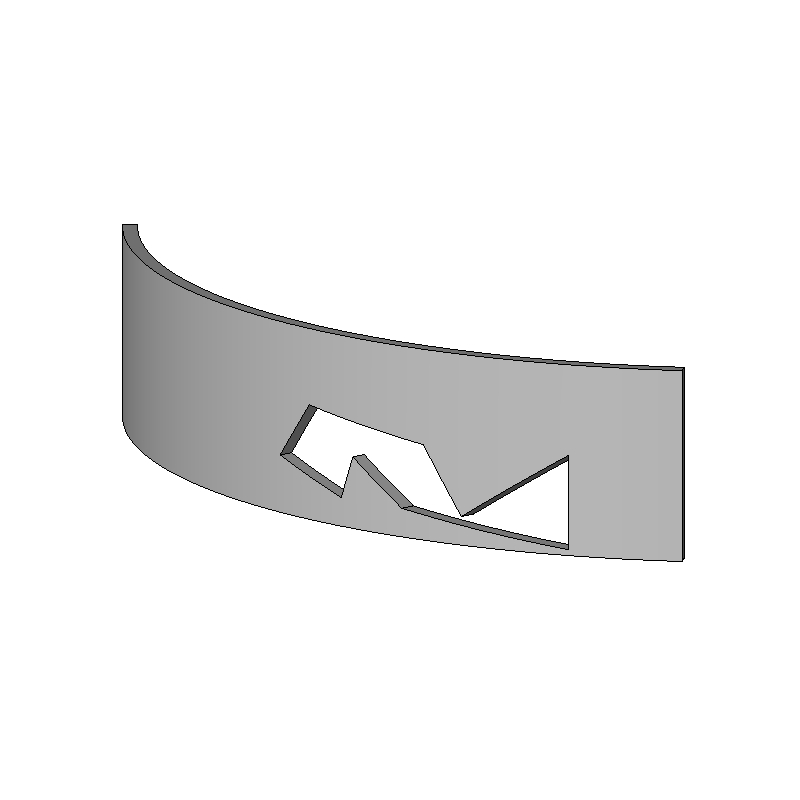

DO YOU MEAN LIKE THIS? Smile all you need to do is draw a reference line in plan, infront of you wall, set the work plane to the reference plane yo have drawn (top left button it's called "Plane"Winking it will ask you what view to open, if you have a section line infront looking at your wall in elevations, pick it. create a void family, draw your shape and make sure you cut the geometry off the wall when you finish Smile HTH Post edited on 2006-08-21 17:29:51

Attached Images

CURVED WALL OPENING.jpg

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Tue, Aug 22, 2006 at 5:40:25 AM | RE: shaped opening on curved wall.

#3

mmetin


active
mmetin Avatar

Joined: Sun, Jun 5, 2005
46 Posts
No Rating


thank you..it worked.

This user is offline

View Website

Wed, Aug 23, 2006 at 2:19:03 PM | RE: shaped opening on curved wall.

#4

amjhd


active
amjhd Avatar

Joined: Thu, Mar 23, 2006
70 Posts
2.5 Stars: 3 Votes


thank you mr. eldados I also needed to know this

This user is offline



Wed, Aug 23, 2006 at 2:40:07 PM | RE: shaped opening on curved wall.

#5

Aubrey


active

Joined: Wed, Aug 18, 2004
12 Posts
No Rating

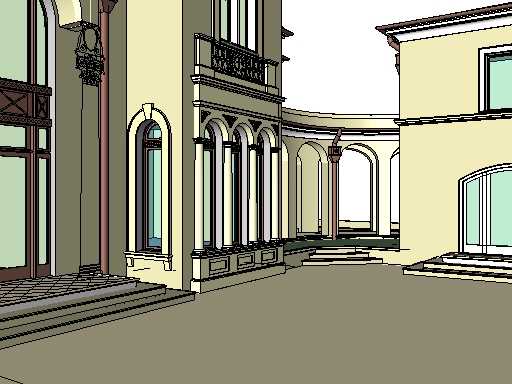

mmetin, For some shapes you may want to create a void blend so the opening flares to follow the arc. Play and have fun! This is one of the most useful tips I ever stole from this site. ;>Winking Yours, Aubrey

Attached Images

Jacobs 6 - Courtyard - view to NW.jpg

This user is offline



Thu, Jun 28, 2007 at 9:58:54 AM | shaped opening on curved wall.

#6

valkanov2001


active

Joined: Wed, May 16, 2007
2 Posts
No Rating


Thank you a lot. Really useful

This user is offline



Tue, Feb 5, 2008 at 3:54:36 PM | shaped opening on curved wall.

#7

mmonti


active

Joined: Thu, Dec 13, 2007
2 Posts
No Rating


Eldados, thank you very much for this explanation because it answered how to do this to many people but I'm a bit new as a revit user and I couldn't understand Puh I think people like me need more attached drawings of the process (some kind of tutorial) to really understand. If you have the time to do that it would be of so much help to more of us.

Thanks,








This user is offline



Thu, Sep 30, 2010 at 11:24:08 AM | shaped opening on curved wall.

#8

iluzek


active

Joined: Mon, Sep 27, 2010
4 Posts
No Rating


Hi there. I'm new to the revit and i'm in college atm doing it. I'm eager to learn more and i'm interested in doing what was described in this thread however i find myself a bit too fresh in revit to grasp how to do it...Not to mention that my teacher seem to be freesher than myself. Would really apriciate if someone could make a video or descibe it in step by step for me. Thanks in advance -  my msn : krzysztofgoszka1@tlen.pl

-----------------------------------

Nothing is impossible.

but

Nothing is ever easy.

This user is offline



Fri, Jun 3, 2011 at 5:30:14 AM | shaped opening on curved wall.

#9

ubi1


active

Joined: Fri, Aug 21, 2009
9 Posts
No Rating

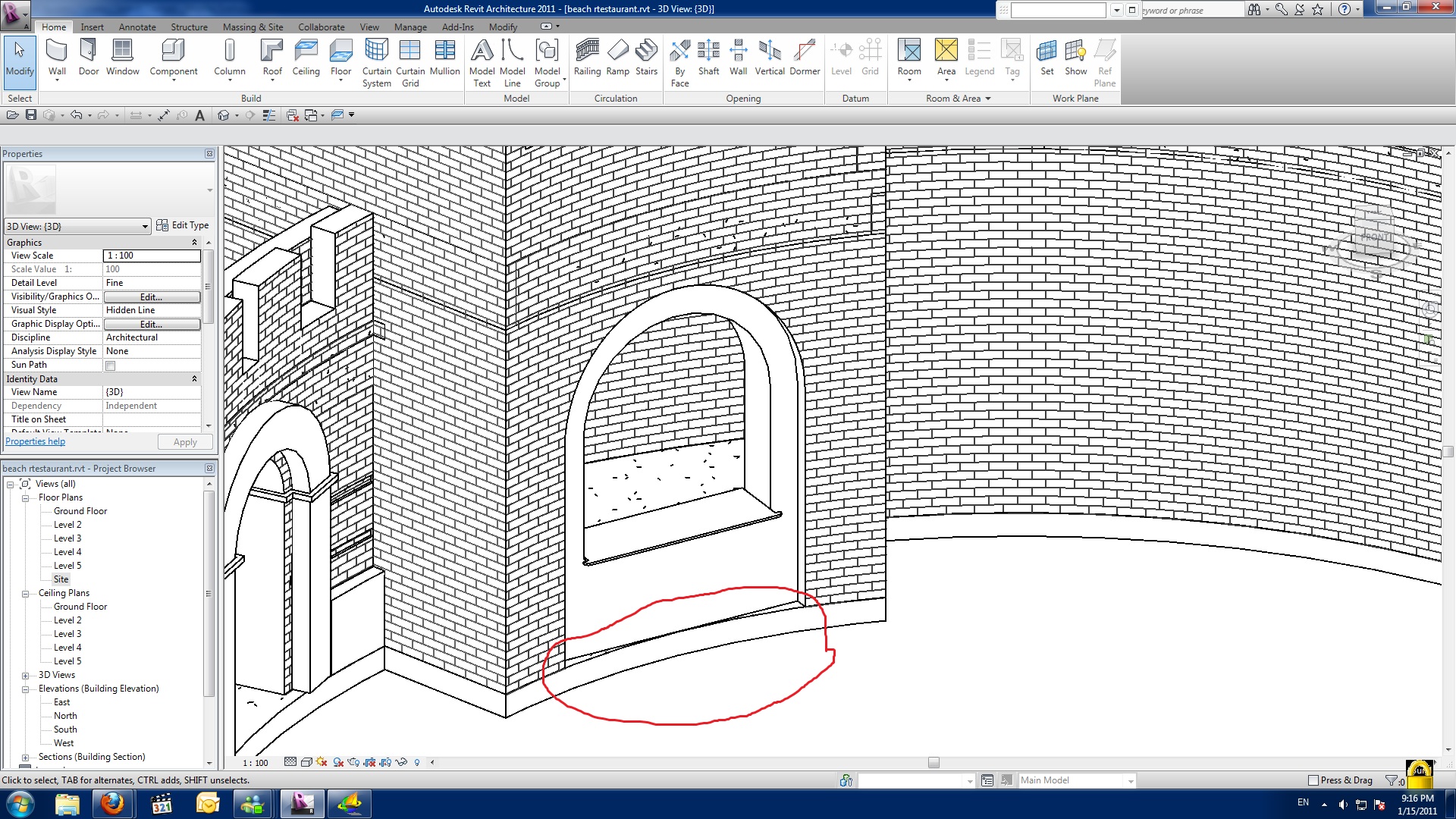

I can't make a recess in the wall to be curved the same as the original wall.what i did in the attached photo, is a Family , void object cut in the wall to form arched opening,but the result is what you see , any ideas



Attached Images


This user is offline



Sun, Nov 6, 2011 at 7:52:50 PM | shaped opening on curved wall.

#10

jodyb166


active

Joined: Wed, Apr 28, 2010
1 Posts
No Rating


I am trying to create a curved glass wall 1' thick, with circular openings for wine bottles. Is there any way to create the voids in the curved wall for the bottles?


This user is offline
