Forums >> Revit Building >> Technical Support >> Canted beams (vertical axis following roof)

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jul 24, 2006 at 3:13:57 PM | Canted beams (vertical axis following roof)

#1

marsupilami


active

Joined: Wed, Jul 12, 2006
11 Posts
No Rating


I am trying to model a roof where I have to add horizontal beams that follow the angle of the roof. At the moment, all beams seem to be locket at a vertical axis, although you can have the ends at different heights. How can I tilt a beam?

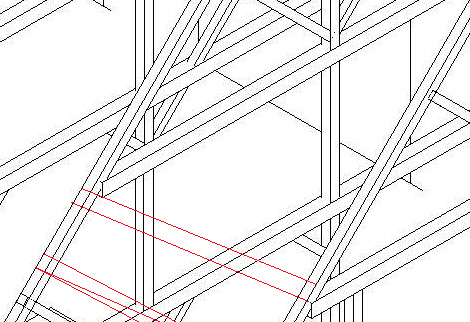

Attached Images


This user is offline



Mon, Jul 24, 2006 at 3:25:25 PM | RE: Canted beams (vertical axis following roof)

#2

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


Try adding a reference plane at the roof slope, name it (properties), then set work plane to the newly named reference plane then place the beams. HTH Tom

This user is offline

View Website

Mon, Jul 24, 2006 at 3:35:44 PM | RE: Canted beams (vertical axis following roof)

#3

marsupilami


active

Joined: Wed, Jul 12, 2006
11 Posts
No Rating


Thanks, Tom I am new to Revit (my second week now) and of course it worked with reference planes! Thomas

This user is offline
