Forums >> Revit Building >> Technical Support >> My walls do not appear in an underlay on my roof plan.

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jul 17, 2006 at 2:10:13 PM | My walls do not appear in an underlay on my roof plan.

#1

malfonsi


active

Joined: Tue, Feb 28, 2006
20 Posts
4.5 Stars: 2 Votes

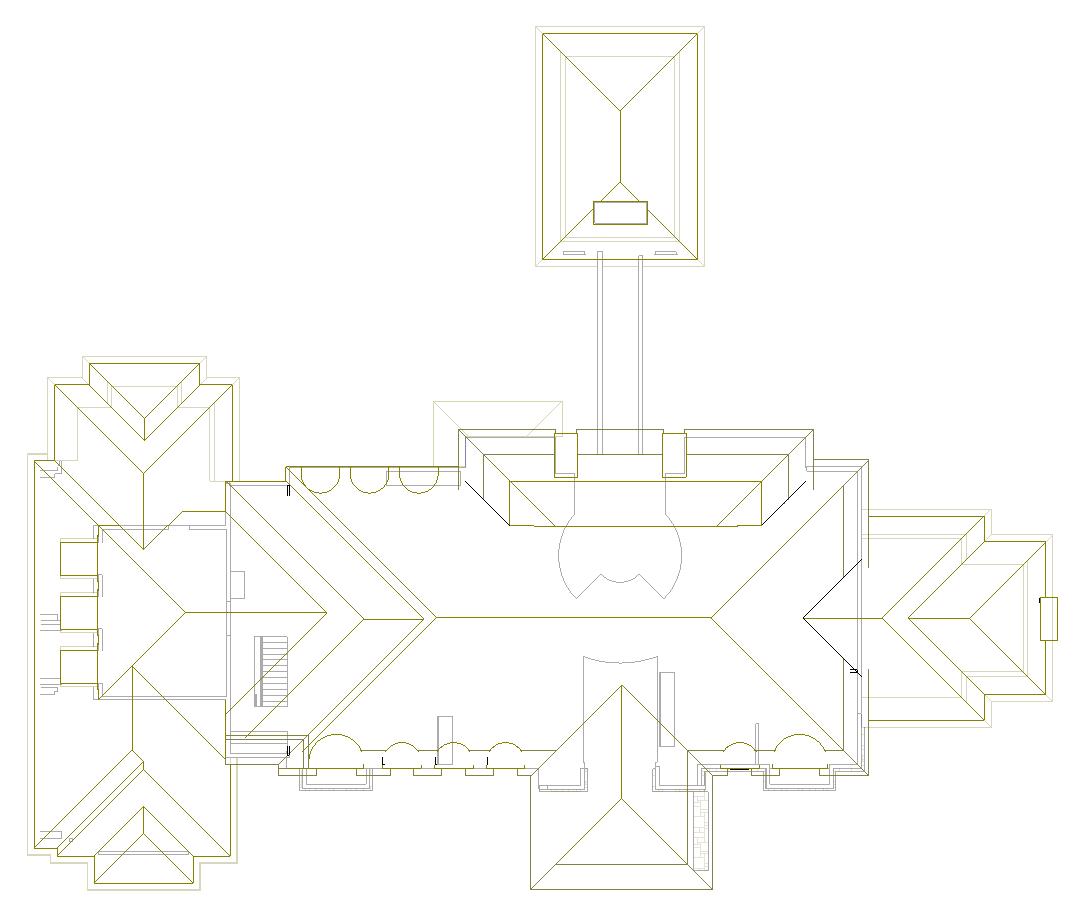

I am trying to show the Upper Level walls in my roof plan as an underlay. It does not show any interior walls and most of the exterior walls. It will show the plumbing fixtures (I turned them off in this view) the base cabinets, stairs, etc. When I use the Main Level as an underlay (for testing) all of the walls show up. Please help me!

Attached Images

Roof Plan.JPG

This user is offline



Mon, Jul 17, 2006 at 2:56:32 PM | RE: My walls do not appear in an underlay on my roof plan.

#2

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


check out this link, the second one sounds like your problem http://revitbeginners.blogspot.com/2006/07/view-range-visibility-lessons.html HTH

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Mon, Jul 17, 2006 at 3:13:00 PM | RE: My walls do not appear in an underlay on my roof plan.

#3

malfonsi


active

Joined: Tue, Feb 28, 2006
20 Posts
4.5 Stars: 2 Votes


Thanks for your help. Funny. thing... I remember meeting you about 4 years ago at a Revit seminar and we were both looking into using Revit or ArchiCAD. I see you went the same route we did except we started up on it a little slower than you did. Very Wise.

This user is offline



Mon, Jul 17, 2006 at 3:28:36 PM | RE: My walls do not appear in an underlay on my roof plan.

#4

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


sorry, they didin't listen. we just started too.

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Fri, May 29, 2009 at 12:14:04 AM | My walls do not appear in an underlay on my roof plan.

#5

sudanhafif


active

Joined: Thu, May 7, 2009
14 Posts
No Rating


I am having the same problem. some of My second floor walls are not showing below roof plan. The link posted here is not available anymore. Could somebody help

thanks

sudanhafif


This user is offline



Fri, May 29, 2009 at 12:27:34 PM | My walls do not appear in an underlay on my roof plan.

#6

malfonsi


active

Joined: Tue, Feb 28, 2006
20 Posts
4.5 Stars: 2 Votes


The link worked for me. The following is what the link goes to...........

While in the second floor plan we underlayed the 1st floor plan but the 1st floor plan walls were not visible while doors, windows, and fixtures were. That's because if the top of the wall below intersects the primary range (bottom clip plane) of the floor plan above, then Revit won't include the walls in the underlay. So we had to raise the bottom clip plane which shouldn't have been below the floor level anyway.



I hope this helps


This user is offline
