Forums >> Revit Building >> Technical Support >> hole in the second level for stairs?

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jul 11, 2006 at 4:57:25 PM | hole in the second level for stairs?

#1

drclay


active

Joined: Tue, Jul 11, 2006
6 Posts
No Rating


I am working on the 'basic' tutorial that comes with the Revit Series. I am at the stairs and the hole for the stairs on page 46-7. A hole doesn't occur. I have tried the 'opening' option, without success. Any thoughts?

This user is offline



Tue, Jul 11, 2006 at 5:12:08 PM | RE: hole in the second level for stairs?

#2

amjhd


active
amjhd Avatar

Joined: Thu, Mar 23, 2006
70 Posts
2.5 Stars: 3 Votes


just edit your floor, draw your hole with the linework tool and finish your floor.

This user is offline



Tue, Jul 11, 2006 at 7:23:01 PM | RE: hole in the second level for stairs?

#3

drclay


active

Joined: Tue, Jul 11, 2006
6 Posts
No Rating


That's the way I read it too. But, I can't seem to get it to work. I get message about intersecting lines or open-ended shape when I click 'finish'. I tried it sketch again not connected to side of floor closest to the stairs and the it seemed to complete. but, when I moved the stairs over to align with what I thought was the hole...there was no hole. Obviously, I am doing something incorrect. have a look at this one. by-the-way, thanks for your

This user is offline



Tue, Jul 11, 2006 at 8:36:23 PM | RE: hole in the second level for stairs?

#4

archdan


active

Joined: Wed, Nov 10, 2004
82 Posts
3.5 Stars: 2 Votes


Instead fo using the Opening tool, select your floor and edit the lines which make it up. When doing this make sure that there are no gaps between newly created lines and that everything is a closed loop. Check using the trim tool at all corners. Also loops can not overlap one another, so I would check for that as well.

This user is offline



Thu, Jul 13, 2006 at 3:51:10 PM | RE: hole in the second level for stairs?

#5

drclay


active

Joined: Tue, Jul 11, 2006
6 Posts
No Rating


Thanks for the help.

This user is offline



Sat, Apr 25, 2009 at 1:01:10 AM | hole in the second level for stairs?

#6

Mufu


active

Joined: Sun, Apr 19, 2009
25 Posts
No Rating


hey guys i am newbie aswell i cnt create the same opening on the floor slab to accomodate the stairs whereas i can manage to do more complex things then that plz let me knwo how to do it?

 Muf


This user is offline



Sat, Apr 25, 2009 at 2:42:58 AM | hole in the second level for stairs?

#7

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

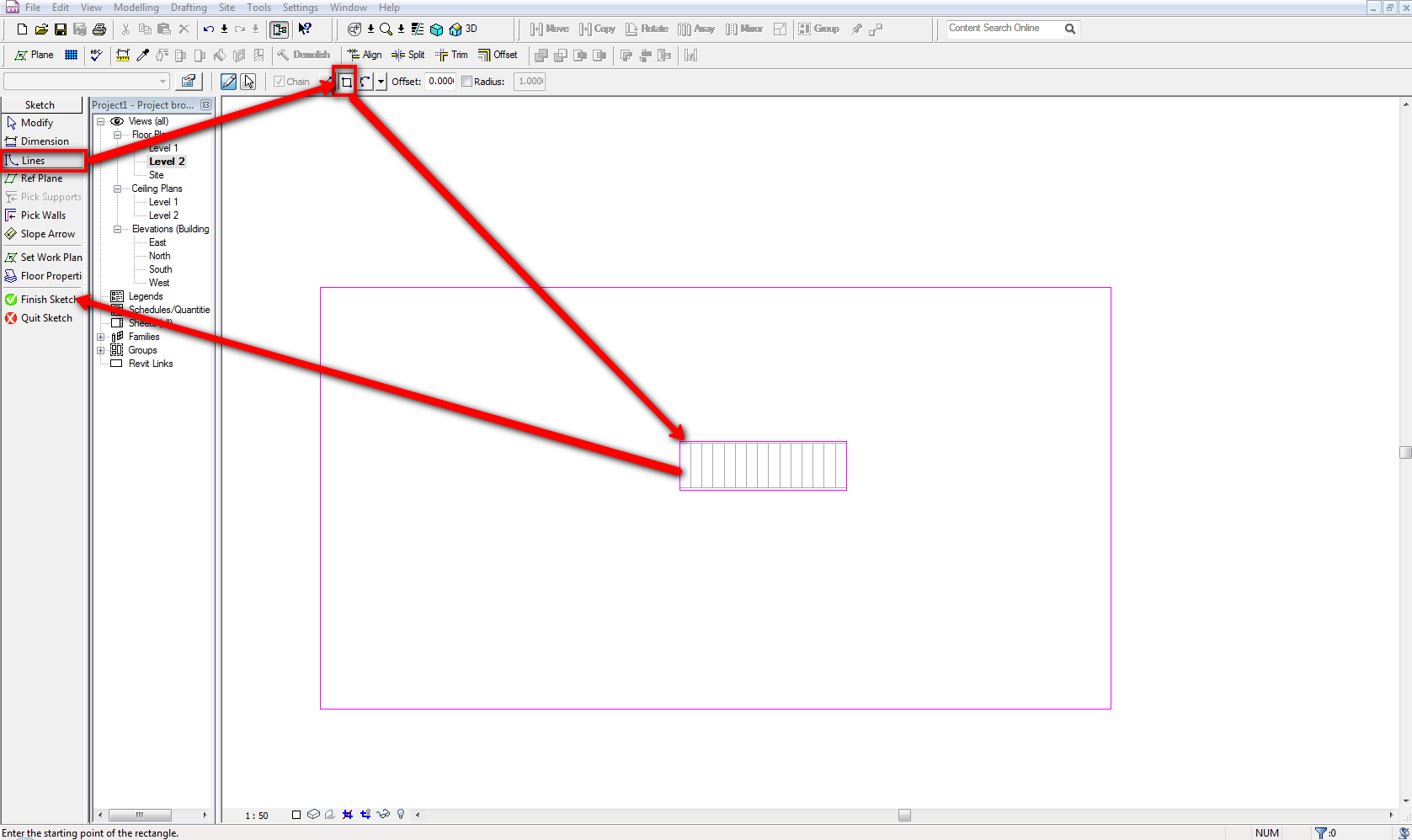

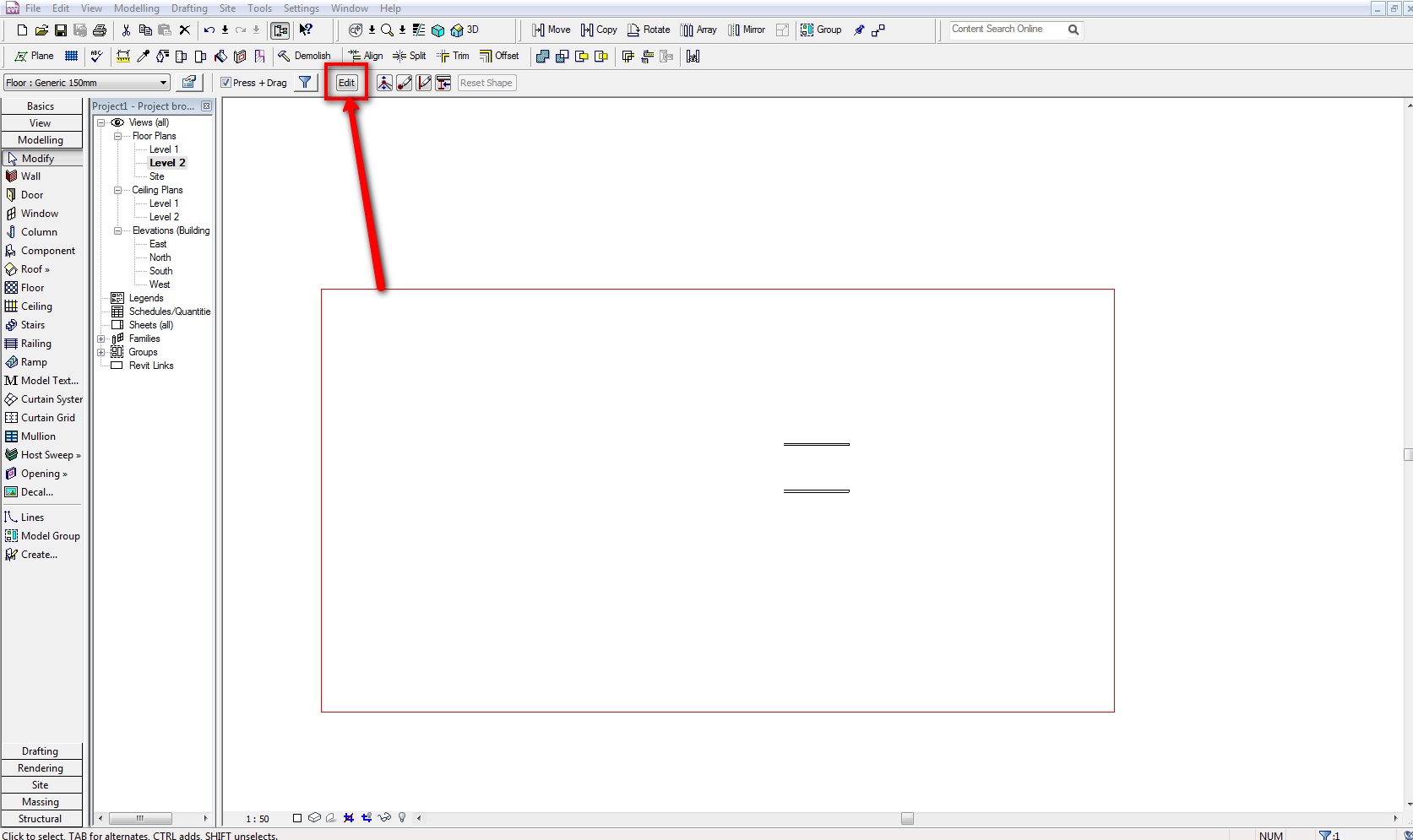

Hi Mufu, to create a hole on your slab just edit it, sketch with lines the shape of your stairs and then click "Finish Sketch" (see images)

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline
