Forums >> Revit Building >> Technical Support >> My section cut symbols don't show on the floor plans

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 20, 2006 at 2:36:27 PM | My section cut symbols don't show on the floor plans

#1

malfonsi


active

Joined: Tue, Feb 28, 2006
20 Posts
4.5 Stars: 2 Votes

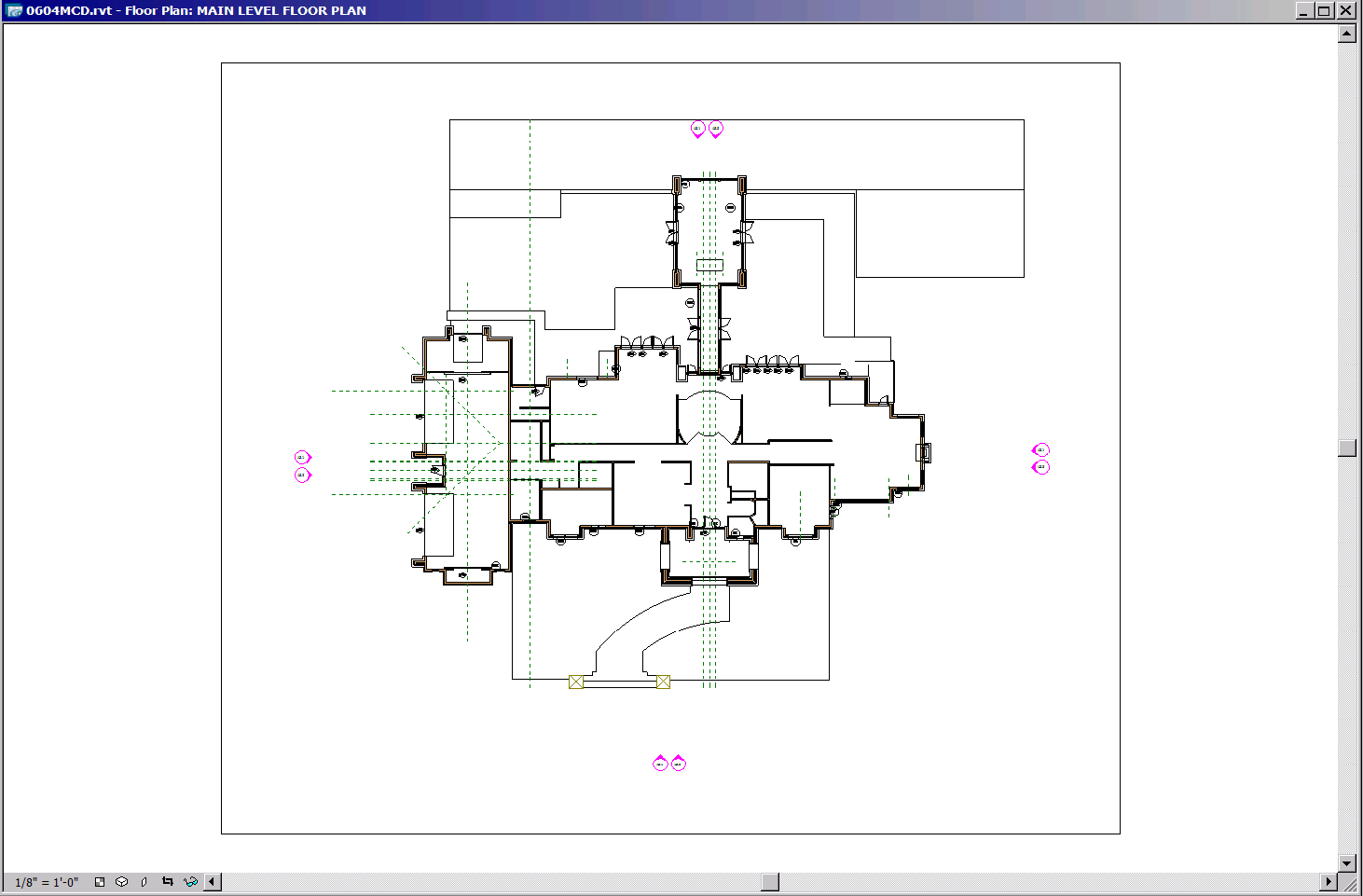

First, I am a newbie, and this is this offices first complete project on Revit. For some reason, I cannot see my section cuts on all of my plan views. I checked my view graphics and the "sections" visibility is on. They also do not show up in my elevations. However, the section cuts show up in my building section view where the sections cross. Please help me, this is driving me crazy!!!

Attached Images

Floor Plan.jpg

This user is offline



Tue, Jun 20, 2006 at 4:53:49 PM | RE: My section cut symbols don't show on the floor plans

#2

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


Check to properties of the section. There is a "hide at scales courser than" setting. If you cut the section in an elevation and the elevation was at 1/4"=1' then that setting by defaul will be 1/4" whcih means that if your floor plan is at 1/8" the section will not be visible. HTH Tom

This user is offline

View Website

Tue, Jun 20, 2006 at 6:27:55 PM | RE: My section cut symbols don't show on the floor plans

#3

malfonsi


active

Joined: Tue, Feb 28, 2006
20 Posts
4.5 Stars: 2 Votes


Thanks! That was really drinving me crazy!

This user is offline



Fri, Apr 11, 2008 at 1:08:11 AM | My section cut symbols don't show on the floor plans

#4

verdeluz


active

Joined: Fri, Dec 21, 2007
1 Posts
No Rating


Aha!  Thanks!  This was driving me crazy too!

This user is offline
