Forums >> Revit Building >> Technical Support >> Spiral Stair: Railing slanting malfunction?

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Oct 3, 2022 at 10:03:20 AM | Spiral Stair: Railing slanting malfunction?

#1

Fryingpanman


active

Joined: Mon, Sep 15, 2014
0 Posts
No Rating


Hi,

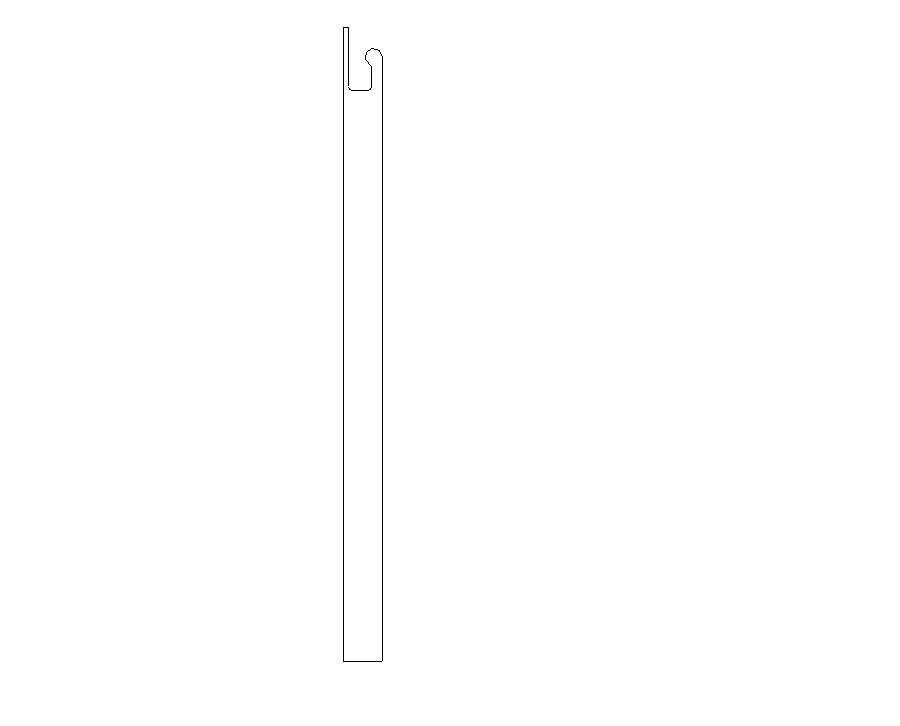

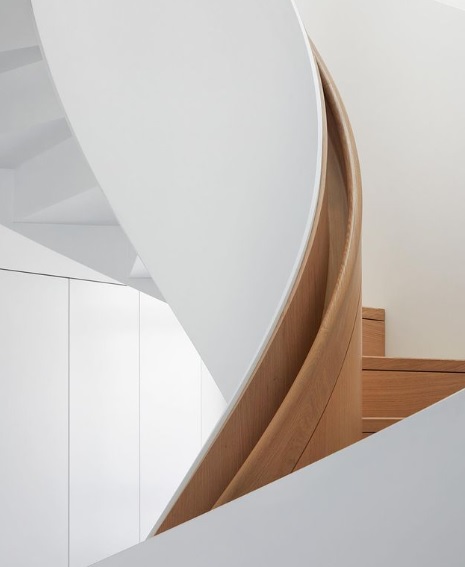

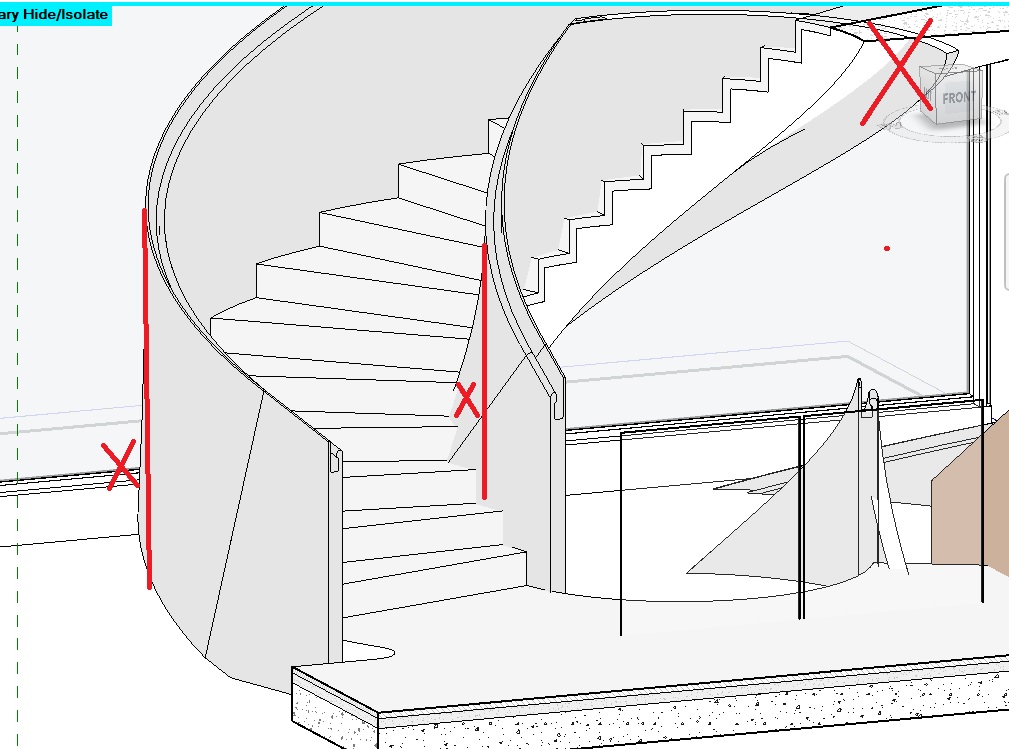

Revit Architecture Ver. 2022. I've created a spiral stair, with a vertical profile for the railing (it'll be a continuous timber "upstand" as per the first image attached below). I attached a second image (screenshot) of the profile I've created. The last image (screenshot) shows hows the railing-top sits correctly, but the bottom is bent / slanted inwards toward the stairs-clashing with the stairs. All settings (offset, etc.) are correct - no slants specified.

Any ideas what may cause this?

Cheers!
