Wed, Aug 4, 2021 at 4:07:06 PM | model edges super fat

#1

Warchitect


active

Joined: Thu, Aug 21, 2008
318 Posts
4 Stars: 5 Votes


So Ive got my elevations sort of set up but its applying a super fat edge lines making the model look cartoonish. I cant find the setting for this. ie. graphic discplay options > show edges> fat lines...

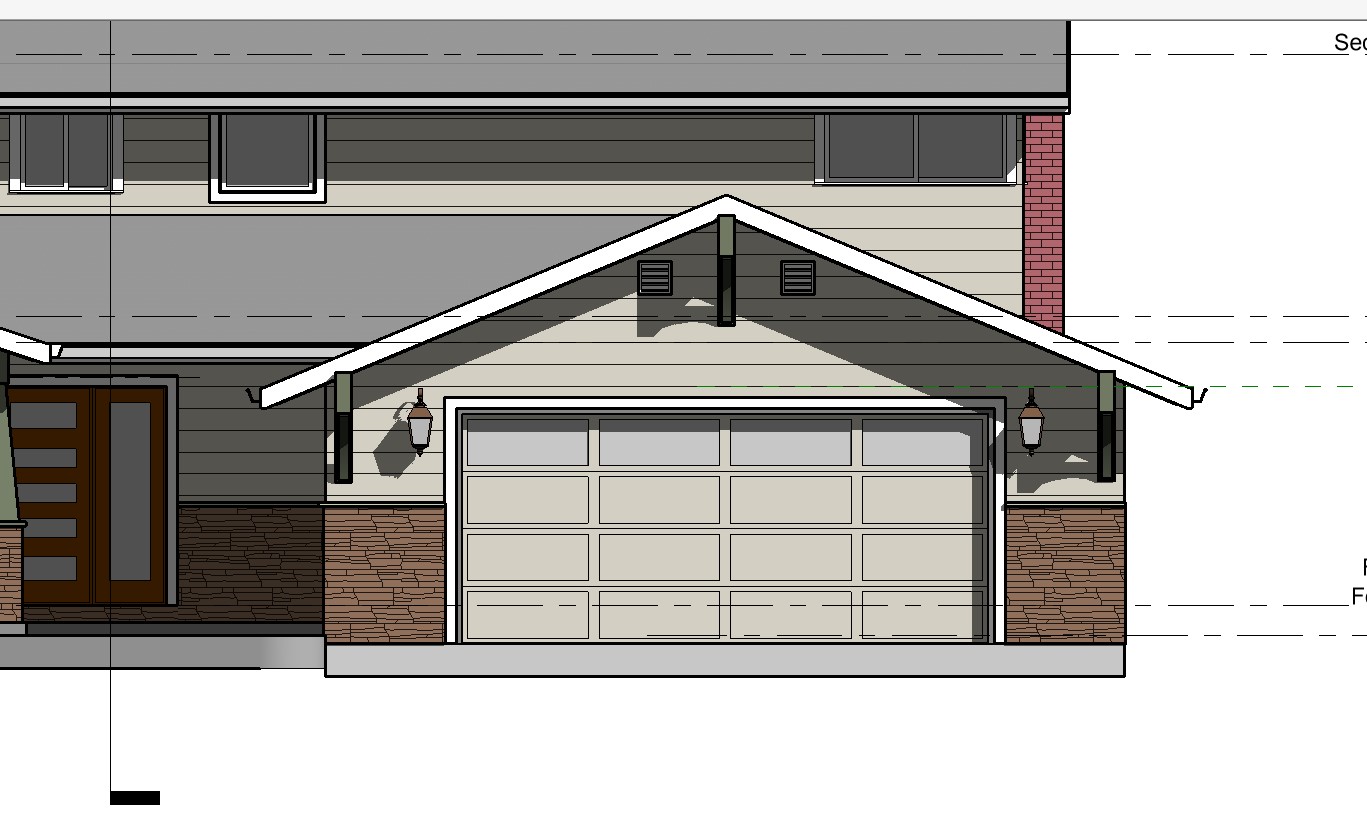

I had to make new elevations, to get regular linework. But dont want to have to do that with all my elevations. Can someone tell me where this setting is. see pic.





Attached Images


This user is offline

View Website

Wed, Aug 4, 2021 at 6:43:25 PM | model edges super fat

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


This should help:  https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/Revit-DocumentPresent/files/GUID-D40E5868-13E9-40A9-A70B-7F9A0110894E-htm.html
