Im newish on Revit. How would I model a half teepee style conserative on the gable of a house.

Thats like a half indian tent.

Thanks

Paddy

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

This would be a roof element so model it as such using a roof plan sketch.

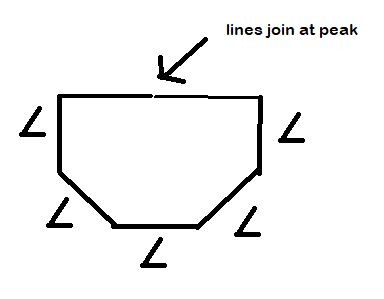

I don't have Revit here but this is a plan of what you do.  All of the faceted side eaves would have a set slope. No slope for the rake side which is two seperate lines that meet at the apex.

Attached Images

This user is offline

phynes

active

Joined: Thu, Nov 1, 2012
5 Posts
No Rating

Thanks, I have done that and changed it to glazing but now i need to show frames at the junctions of the glass.

This is the part im having the problem with.

Again thanks

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Ah ... I missed the term "conservatory", we do not use that term in the US.

I would think about using an in-place family, an extrusion along one of the ridges.  Then copy / rotate tha from the center (apex) to the other angles.
