Forums >> Revit Building >> Technical Support >> Revit wall join

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Mar 3, 2021 at 8:25:33 AM | Revit wall join

#1

Dimsh


active

Joined: Sat, May 30, 2015
0 Posts
No Rating


Hi,

I am trying to correctly show wall join of brick veneer and dividing party wall on the drawing. The wall structure is as the following:

Brick veneer wall

- Outer brick layer 110mm

- Air layer 40mm

- Stud 90mm

Party wall

- Stud 90mm

- Air layer

- Shaft Liner

- Air layer

- Stud 90mm

What I want to see if for revit to join Party wall studs to the brick veneer wall studs and for shaft liner to go all the way and join to the outer brick layer of the brick veneer wall. At the moment, if I disallow join the shaftliner can be dragged to butt against against the bricks but studs do not join on each side.

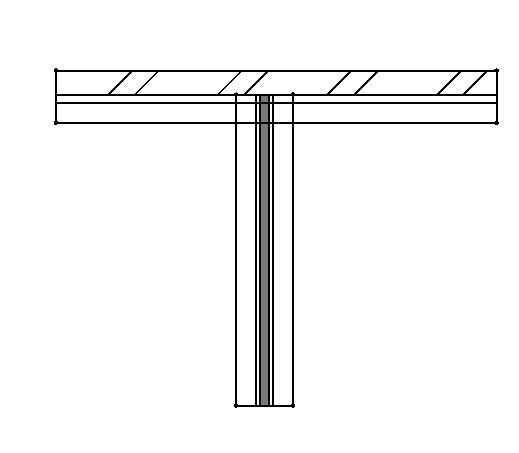

I would appreciate if anyone could provide a solution to how I can modify wall structure so it correctly joins. I have attached a screenshot with how the wall joins when I disallow the join.



Attached Images


This user is offline



Wed, Mar 3, 2021 at 12:58:39 PM | Revit wall join

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes

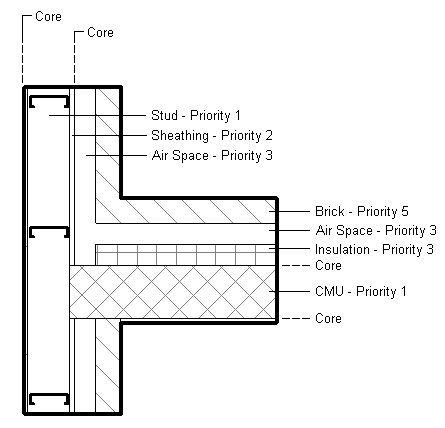

Read this from your HELP: https://help.autodesk.com/view/RVT/2019/ENU/?guid=GUID-1CCD1005-CBDA-4338-8D60-489095D4BB25





Edited on: Wed, Mar 3, 2021 at 7:00:01 AM

Attached Images


This user is offline
