Forums >> General Discussion >> Revit Project Management >> Revit Exporting to Autocad Changes the Justification and Margines of Texts

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Jan 16, 2021 at 10:41:27 AM | Revit Exporting to Autocad Changes the Justification and Margines of Texts

#1

Ahankhah


active

Joined: Thu, Apr 8, 2010
0 Posts
No Rating

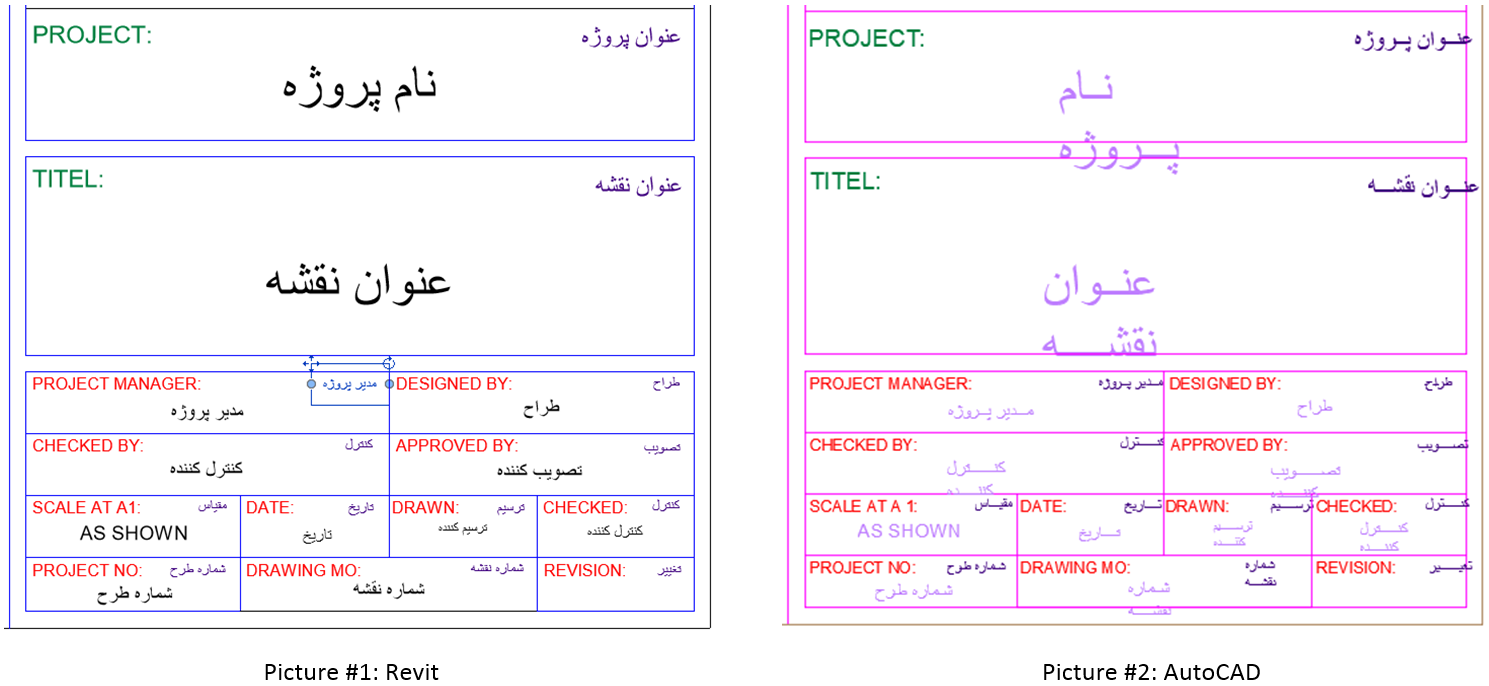

Hi all,I encountered a severe problem today exporting from Revit to AutoCAD (DWG).As shown in picture #1, in Revit all texts are in normal condition.Picture #2 shows AutoCAD DWG file made by Revit via EXPORT command.As seen comparing two pictures, the problem is changing the alignment of all Text (Mtext) objects to "Top-Left" ignoring the definition of Texts in Revit. Another problem is that changes in the margines of TEXT, wraps some MTexts in AutoCAD.Should any one can solve the problem?I apprecate any help or clue guiding me to study.



Attached Images


This user is offline



Sat, Jan 16, 2021 at 12:25:26 PM | Revit Exporting to Autocad Changes the Justification and Margines of Texts

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 378 Votes


Looking at your images, I believe your problem is your text width.  The individual text characters are wider in the autocad image and that forces the text to be split into two lines.  See how you can change those settings.




This user is offline



Sat, Jan 16, 2021 at 1:06:11 PM | Revit Exporting to Autocad Changes the Justification and Margines of Texts

#3

Ahankhah


active

Joined: Thu, Apr 8, 2010
0 Posts
No Rating


Thanks a lot for your reply,



you are right. AutoCAD changes text objects in Persian and other languages in which some letters are attached to each other and fills between some of adjacent letters "kashideh". Unfortunately there is no way to prevent AutoCAD from doing this work.




This user is offline
