Forums >> Revit Building >> Technical Support >> rated walls using filters
|
|
|
active
Joined: Fri, Jun 26, 2020
0 Posts
No Rating |

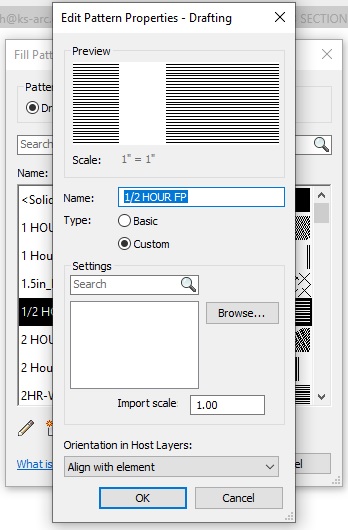

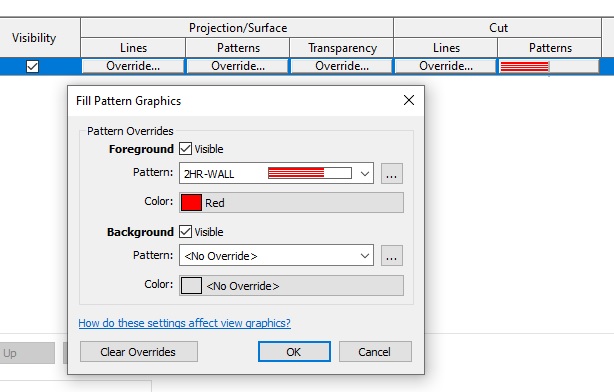

I cant get the rated wall to work using the filters, .pat files and visibility graphics routine. Tried differed scales in the pattern, different orientations, course display but it comes out solid or fine. I need the dashed wall type. What am I doing wrong?
|
This user is offline |
|
 | |
|
|
active
Joined: Mon, Nov 19, 2007
93 Posts
 |

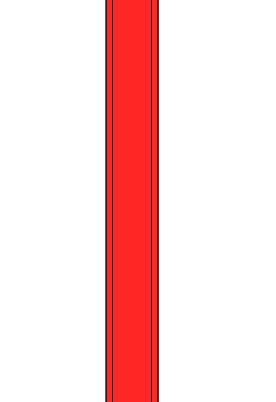

Use a solid fill. Red, green, orange, yellow. A wall is tiny in cut plan. Filling it with a tiny pattern will just end up as a blur.
Check you have the filter set up correctly. Are walls category selected in drop down on right?
Follow link below for overview.
https://blogs.rand.com/support/2013/09/revit-using-filters-to-show-fire-rated-walls.html
-----------------------------------
__________I'm the guy they come to when they didn't follow my recommended workflows.__________ |
