Forums >> Revit Building >> Technical Support >> dimension tool for mass- non orthogonal faces

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jul 30, 2020 at 8:40:05 PM | dimension tool for mass- non orthogonal faces

#1

mihaela


active

Joined: Sat, Apr 8, 2006
2 Posts
No Rating


Hello,

1st problem- beginner level

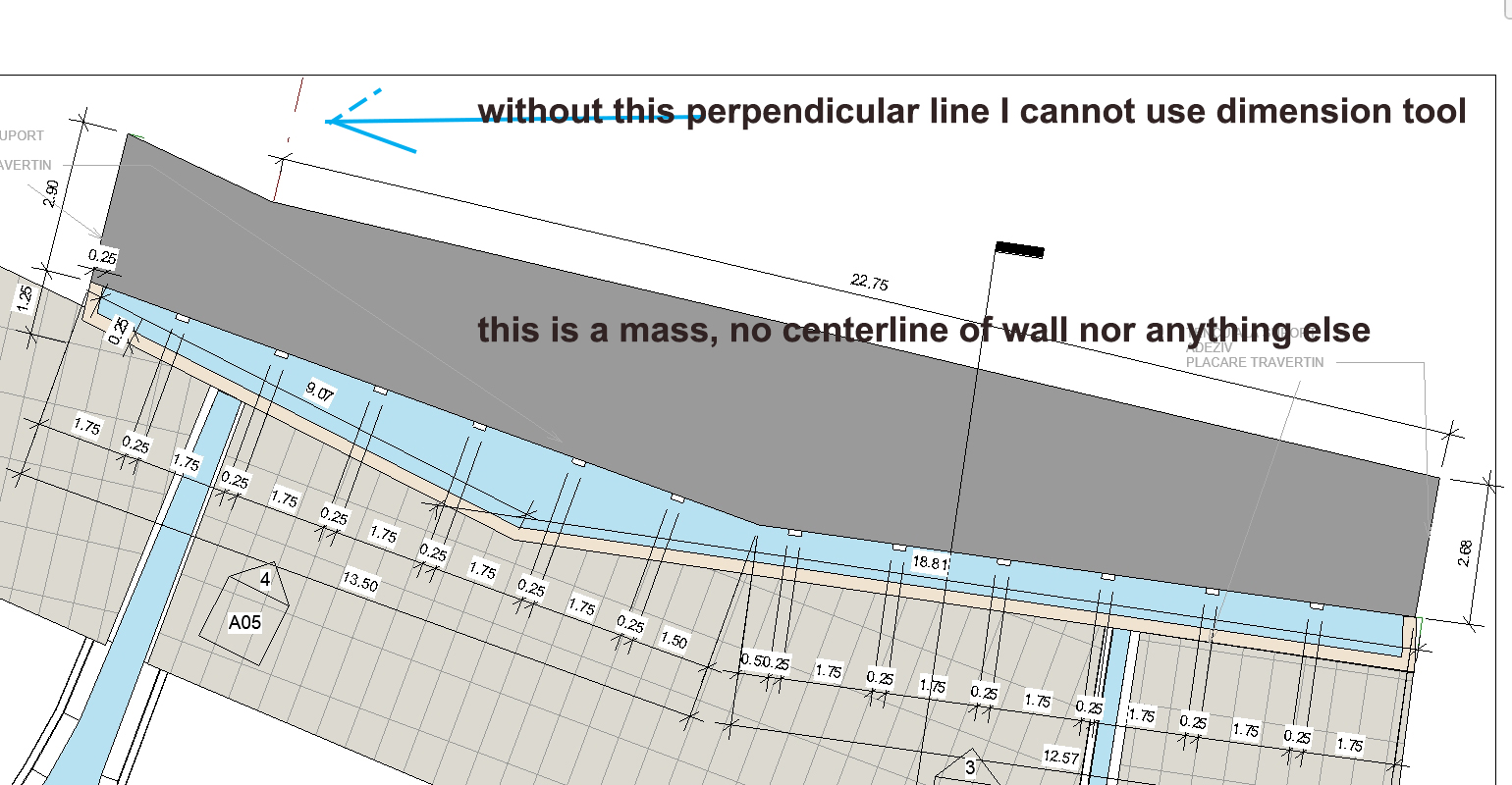

I'm sorry if i skipped some beginer's lessons but i cannot dimension this mass witout perpendicular helping lines on every non ortho line

see the img attached, i've tried with walls, sometimes works, sometimes not. but i have a site plan with long alleys and life is short .

2nd.... how can I add the TYPE parameter to a mass- generic model or model in place- wall. floor or wthatever (not made inside a family), i need that parameter for schedules. I can add a new made by me parameter but for a bench lets say i dont want to fill the other 20more objects that parameter

thank you very much



Attached Images


This user is offline



Fri, Jul 31, 2020 at 10:49:20 AM | dimension tool for mass- non orthogonal faces

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 359 Votes


Revit dimensions are very precise.  If two objects are NOT parallel, you can not dimension between them.  Often, that is a problem with people that start with visually created mass objects.



For the dimension in question, I see the dimensions on the other side worked.  Why?  Learn how too dimension and how to use snaps.  Read this and it's references: https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/Revit-Customize/files/GUID-A3947840-1F30-41D7-AF75-B61687952A07-htm.html




This user is offline



Fri, Jul 31, 2020 at 12:02:07 PM | dimension tool for mass- non orthogonal faces

#3

mihaela


active

Joined: Sat, Apr 8, 2006
2 Posts
No Rating


They didnt work, i created those helping lines, every dimension must have a perpendicular line on the one i want to measure, as much as I try I cannot snap on both points and have an aligned dimension, i must have a line and a point- at least i dont have to create 2 lines.

is something that i miss with snaps? can you snap on both points of the ends of a line and get a proper dimension?



thanks





Edited on: Fri, Jul 31, 2020 at 7:03:08 AM

This user is offline



Fri, Jul 31, 2020 at 1:14:08 PM | dimension tool for mass- non orthogonal faces

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 359 Votes


You can snap to both points and the dimension will be aligned.  Read how to use your snaps!




This user is offline



Fri, Jul 31, 2020 at 2:14:30 PM | dimension tool for mass- non orthogonal faces

#5

mihaela


active

Joined: Sat, Apr 8, 2006
2 Posts
No Rating


Thank you!

Now I know how to use snaps! Problem solved



(7tabs to get the point thou)


This user is offline



Fri, Jul 31, 2020 at 9:40:36 PM | dimension tool for mass- non orthogonal faces

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 359 Votes


You should read more of the knowledge item I posted and you would see how to use keyboard shortcuts.


This user is offline
