Forums >> Revit Building >> Technical Support >> Roof finish to turn at eaves, rake and fascia

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, May 5, 2020 at 5:16:57 AM | Roof finish to turn at eaves, rake and fascia

#1

elizabethpetermathew


active

Joined: Sun, Jul 15, 2012
0 Posts
No Rating


Hello,

We are modeling a standing seam metal roof that will have  the vertical seams continue into the eave. This will appear in the Revit model and the rendered view. How can I make this adjustment in the model material? The finish that is applied does not appear at eaves or rake. See attached.

Thank you.



Attached Images


This user is offline



Tue, May 5, 2020 at 12:14:24 PM | Roof finish to turn at eaves, rake and fascia

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 353 Votes


I'm lost.....?

Not sure what you mean by into the eaves and rake.  The roof should extend over the eaves and over the rake.  But typically, it does not over the face of thes or under them.

Have you built your roof correctly so that it does that?




This user is offline



Tue, May 5, 2020 at 2:05:10 PM | Roof finish to turn at eaves, rake and fascia

#3

marmiketin1


active

Joined: Wed, Aug 19, 2015
0 Posts
4 Stars: 5 Votes


If I am understanding correctly you are wanting the metal roof to go down the fascia? You can accomplish this by going to Modify Tab -> Geometry -> Paint and select the material you want and then paint the edges of the roof. You can then align the patterns how you need.


This user is offline



Tue, May 5, 2020 at 11:04:23 PM | Roof finish to turn at eaves, rake and fascia

#4

elizabethpetermathew


active

Joined: Sun, Jul 15, 2012
0 Posts
No Rating


Yes I want the roof finish in rendered image to go down the eave edge, rake and soffit. So it appears as one continuus finish. CAn I use the paint command for renderings? My rendered image of the roof is a jpeg file. Thank you.


This user is offline



Tue, May 5, 2020 at 11:29:22 PM | Roof finish to turn at eaves, rake and fascia

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 353 Votes


Come on now....one of the great things about Revit or even CAD is you can try something and go backwards if needed.  If you never learn that, then you will learn very lettle else.




This user is offline



Wed, May 6, 2020 at 6:23:34 AM | Roof finish to turn at eaves, rake and fascia

#6

elizabethpetermathew


active

Joined: Sun, Jul 15, 2012
0 Posts
No Rating


Great thank you, it worked!


This user is offline



Wed, May 6, 2020 at 10:50:35 AM | Roof finish to turn at eaves, rake and fascia

#7

GenByle


active

Joined: Wed, Mar 25, 2020
0 Posts
No Rating


How did you make such a roof?



Attached Images


This user is offline



Wed, May 6, 2020 at 11:02:07 AM | Roof finish to turn at eaves, rake and fascia

#8

oskokos


active

Joined: Sat, Aug 17, 2019
0 Posts
5 Stars: 1 Votes

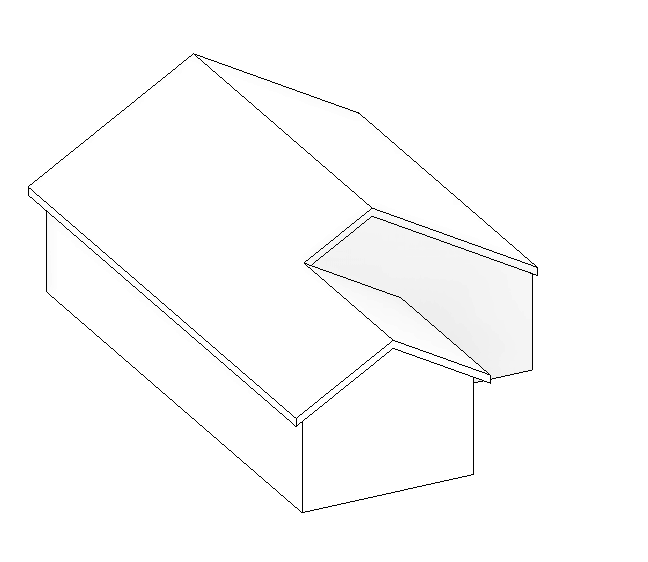

- Architecture - roof - roof by footprint

Check Defines Roof Slope like on a picture

Enjoy Smile





Attached Images


This user is offline



Wed, May 6, 2020 at 11:05:50 AM | Roof finish to turn at eaves, rake and fascia

#9

GenByle


active

Joined: Wed, Mar 25, 2020
0 Posts
No Rating


how did you make the walls?


This user is offline



Wed, May 6, 2020 at 10:56:54 PM | Roof finish to turn at eaves, rake and fascia

#10

elizabethpetermathew


active

Joined: Sun, Jul 15, 2012
0 Posts
No Rating


Not sure I understand the question. The image of the standing seam roof finish is part of the rendered appearance of the roof finish (took scan of the roof finish and cropped it) and the walls have 1/2" reveals on stucco.

These are tonwhomes, each is a linked model.


This user is offline



Sun, May 10, 2020 at 2:36:26 AM | Roof finish to turn at eaves, rake and fascia

#11

oskokos


active

Joined: Sat, Aug 17, 2019
0 Posts
5 Stars: 1 Votes


"how did you make the walls?" - Select wall and click ATTACH TOP/BASE

If you want to learn how to make roofs, check out this example file with different roofs: https://measuredsurvey365.co.uk/revit-roof-forms/


This user is offline
