Forums >> Revit Building >> Technical Support >> sloped steel?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jun 8, 2006 at 6:33:50 PM | sloped steel?

#1

sweetiedarling


active

Joined: Thu, Dec 1, 2005
38 Posts
No Rating


hello all - how do i slope steel beams for a roof? i can angle the steel around its cross section, but i can't figure out how to rotate the length of the steel. how thoughts? thanks so much!

This user is offline



Tue, May 19, 2009 at 12:02:41 AM | sloped steel?

#2

Tim130


active

Joined: Wed, Apr 29, 2009
15 Posts
No Rating


Hi

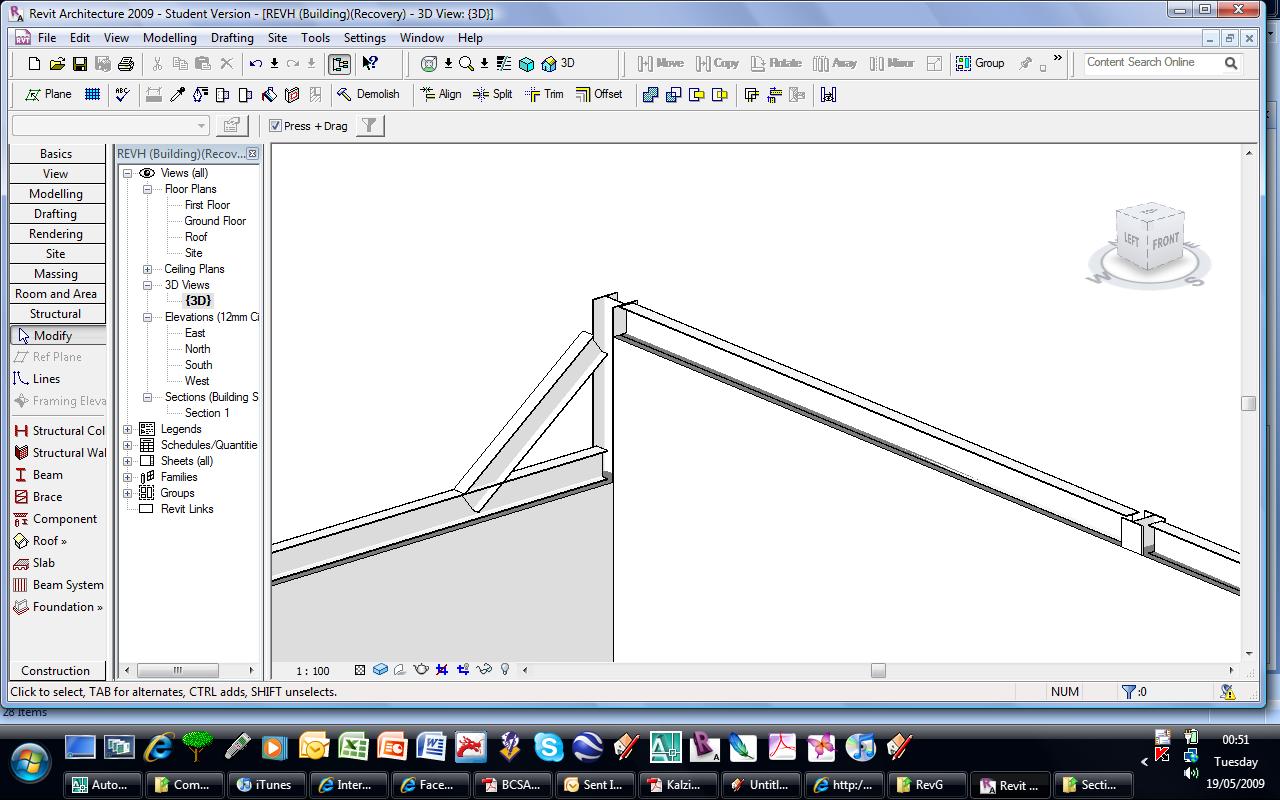

 Does any one have a solution to previous question, I would like to have the sloping steel which is shown connecting to the beam and the column, can this be cut in any way... I am am using Revit 2009, Cheers



Attached Images


This user is offline



Mon, Mar 29, 2010 at 2:01:20 PM | sloped steel?

#3

testoni1977


active

Joined: Mon, Mar 1, 2010
1 Posts
No Rating


Cut the beam with a reference plane should work, see link



http://www.augi.com/publications/hotnews.asp?page=899


This user is offline



Tue, Mar 30, 2010 at 11:52:17 PM | sloped steel?

#4

my68spit


active

Joined: Wed, Feb 24, 2010
3 Posts
No Rating


- in a section view or elevation, draw a reference plane along the slope that you want.

- name it something pertinent (Slope @ north vestibule)

- In your "Home" menu, set your plane to the reference plane you just created.

- In plan view, draw your beam.

 - Done.

Hope this helps if you haven't figured it out by now.


This user is offline



Thu, Apr 8, 2010 at 5:32:21 PM | sloped steel?

#5

eveline


active

Joined: Sat, Feb 11, 2006
29 Posts
No Rating


The slope of your beam can be determined by the parameters Start level offset and end level offset.

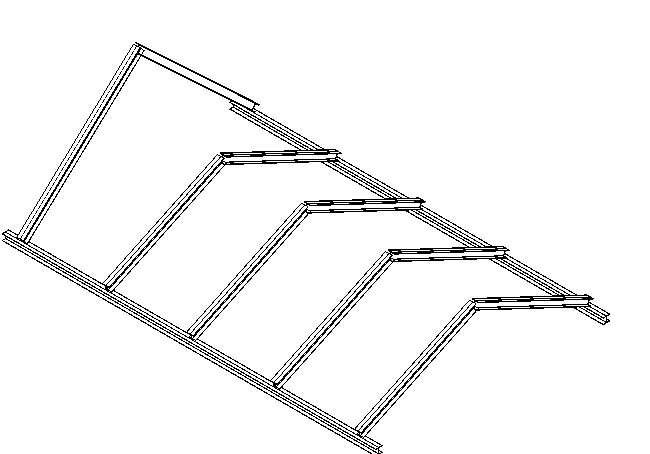

I would like to know how to "trim" sloped beams  that are in a vertical plane.



Eveline



Attached Images


This user is offline



Thu, Apr 8, 2010 at 5:44:00 PM | sloped steel?

#6

my68spit


active

Joined: Wed, Feb 24, 2010
3 Posts
No Rating


Eveline,

I am not sure what you are asking.  Which of the member sin the attached image are you trying to "trim"?  Are you wanting to modify the whay that they are joining together at the ridge?  Or you want to trim them on a vertical plane at the horizontal members?


This user is offline



Thu, Apr 8, 2010 at 7:24:46 PM | sloped steel?

#7

eveline


active

Joined: Sat, Feb 11, 2006
29 Posts
No Rating


Both, I want to control the way the beams are joined at the top of the roof and the way they connect to the horizontal beam.

This user is offline



Thu, Apr 8, 2010 at 10:51:25 PM | sloped steel?

#8

Sven


active

Joined: Mon, May 28, 2007
40 Posts
3.5 Stars: 3 Votes


I realise that this may be a long way around, and it doesn't actually allow you to join beams, but this will make it look visually correct. Try using the opening tool ('modify'>'openings'>'opening on face') - select the face of the beam, then draw the shape of the cut... like i said, its not necassarily the fastest method, but you can copy the cut profile between beams.

Alternatively, you could create your own beam family with a sloping cut on it.. there is a timber one in the download section of this site.

Good luck!


This user is offline
