Forums >> Revit Building >> Technical Support >> I-joists

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 3, 2020 at 8:48:34 PM | I-joists

#1

integrity


active

Joined: Wed, Nov 19, 2014
0 Posts
No Rating

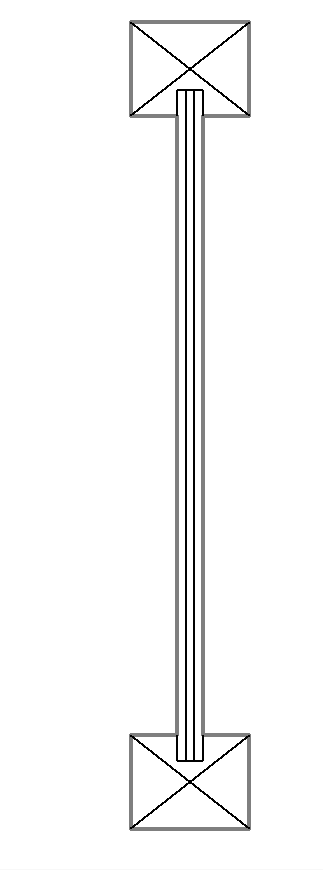

I can't get i-joists to show up in drawing with thins lines, only very heavy lines. I select a joist, edit family, select outline of joist, under vg,

select edit, select detail level ---fine, vg---object styles, select lt lines, load into project, still have very heavy lines. See attachments.

I'm stuck!



Attached Images


This user is offline



Wed, Mar 4, 2020 at 4:48:29 PM | I-joists

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 355 Votes


Did you look at the vg settings in your view?  Those can over-ride family settings.


This user is offline



Wed, Mar 4, 2020 at 10:30:36 PM | I-joists

#3

integrity


active

Joined: Wed, Nov 19, 2014
0 Posts
No Rating

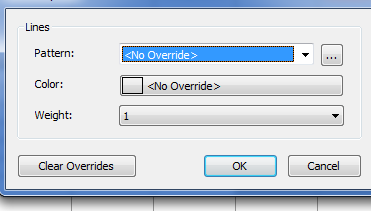

I did the vg override but no change in the line weight.



Attached Images


This user is offline



Wed, Mar 4, 2020 at 11:30:00 PM | I-joists

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 355 Votes


No, that is not what I was talking about.  VG Setting for the view.

https://www.youtube.com/watch?v=BAwoR4pzOuQ


This user is offline
