Forums >> Revit Building >> Technical Support >> Issues creating simple Fill Pattern

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jan 2, 2020 at 10:48:37 AM | Issues creating simple Fill Pattern

#1

penandink


active

Joined: Fri, Oct 11, 2019
0 Posts
No Rating


I am having problems creating a simple large dashed pattern (for a type of cable tray), the dash should be the width (in plan) of the cable tray. It seems very basic, not a fancy complex pattern, but after searching through many sites, I cannot find a solution. I am new to Revit, so maybe I am missing something obvious. (Revit version is Revit 201Shadey.

I tried looking for existing patterns, and a 'smoke' pattern was fairly close but had not fully solid dashes. (https://www.revitcity.com/forum_files/144698_fill_settings.JPG).

I tried creating a specific .pat file, but the closest I got was using (type: drafting, units: inches):

*LARGE DASH0, 0,0, 0,.01, .15,-.15

This looked reasonably Ok for horizontal cable trays at some scales, but only partially filled vertical cable trays.Any help would be greatly appreciated on this issue. Thanks.


This user is offline



Thu, Jan 2, 2020 at 3:55:40 PM | Issues creating simple Fill Pattern

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 359 Votes


It sounds like you are just showing your layout with lines only rather than actual elements?  Obviously you can do that but this is Revit.

I don't see how you can do this with fill patterns and for single linework only, understand that the linewidth is based on pen widths.

You could create a repeating detail for this.  https://www.revitcity.com/forums.php?action=viewthread&thread_id=42315

I would have probably used real cable trays: https://www.youtube.com/watch?v=TtCTlJOvtyQ


This user is offline



Thu, Jan 2, 2020 at 8:19:26 PM | Issues creating simple Fill Pattern

#3

CDWdavid


active

Joined: Mon, Aug 4, 2008
153 Posts
5 Stars: 5 Votes

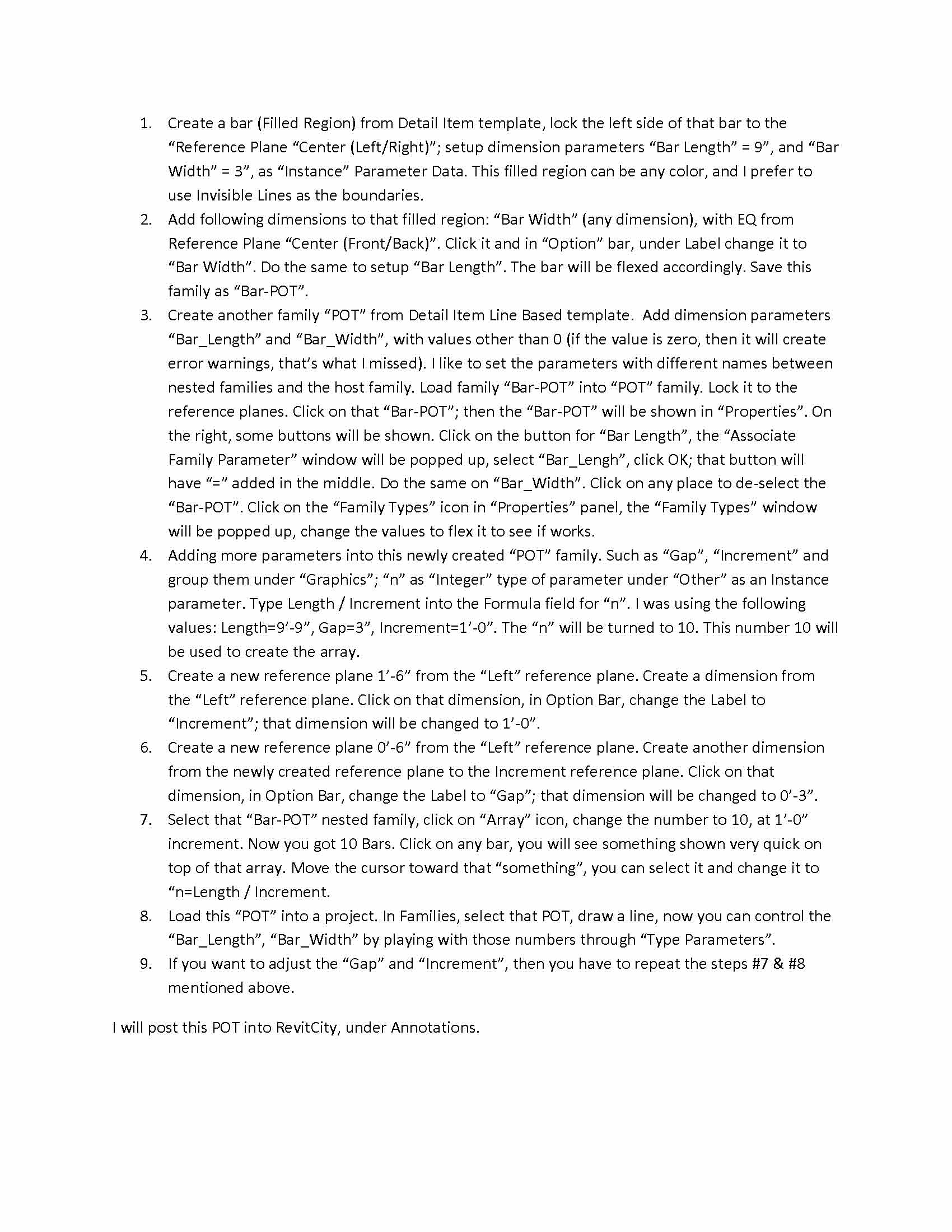

If you are just try to create a line based pattern, you may try the attached step-by-step tip.

Try this link to download the family file.

https://www.revitcity.com/downloads.php?action=downloadnow&object_id=18185&object_file_type=rfa



Edited on: Thu, Jan 2, 2020 at 2:36:35 PM

Attached Images


This user is offline



Thu, Jan 2, 2020 at 8:20:08 PM | Issues creating simple Fill Pattern

#4

penandink


active

Joined: Fri, Oct 11, 2019
0 Posts
No Rating


Thanks for the quick reply.

Let me clarify the issue.I am using the Revit Cable Trays, and have several types set up, using filters, each assigned a separate fill pattern. However, the company where I am an intern, use the required dash pattern for a specific type of cable tray.

I am attaching a (photoshopped) image of the pattern I require. It seems very basic, yet I cannot create it , using the custom pattern in Revit, creating .pat files. or using the HatchKit add-on.

Hopefully there is an easy solution to this problem.



Attached Images


This user is offline



Thu, Jan 2, 2020 at 8:39:06 PM | Issues creating simple Fill Pattern

#5

penandink


active

Joined: Fri, Oct 11, 2019
0 Posts
No Rating


Thanks CDWdavid for the detailed description. There is plenty of useful information there.

I am really looking for a fill pattern / .pat type solution, if that is possible. I did come fairly close but didn't succeed.

Any help in that area would be appreciated. Thanks.


This user is offline



Thu, Jan 2, 2020 at 9:21:45 PM | Issues creating simple Fill Pattern

#6

CDWdavid


active

Joined: Mon, Aug 4, 2008
153 Posts
5 Stars: 5 Votes


Hi Penandink,

Have you tried to download that POT, and place on a drawing? The only different would be that you can add a thin lines on both sides, and change the color to dark green. Revit is different from the AutoCAD, the Revit thick lines are all have round corners.



Edited on: Thu, Jan 2, 2020 at 3:23:15 PM

This user is offline



Fri, Jan 3, 2020 at 9:47:48 AM | Issues creating simple Fill Pattern

#7

penandink


active

Joined: Fri, Oct 11, 2019
0 Posts
No Rating


Hi CDWdavid,

I did download your annotation family, re-color it and have used it, and it is a solution.

However, it would be preferable if I could find a solution via a fill pattern, as it would allow continued use of the actual cable trays, which would be more flexible.

Thanks for your help and quick response.


This user is offline
