Forums >> Revit Building >> Technical Support >> Some beams don't appear from one side.

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Oct 14, 2019 at 2:38:49 PM | Some beams don't appear from one side.

#1

MehmetCad


active

Joined: Sun, Sep 29, 2019
0 Posts
No Rating

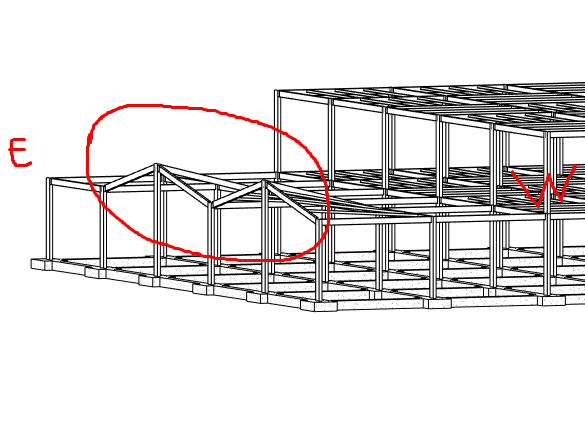

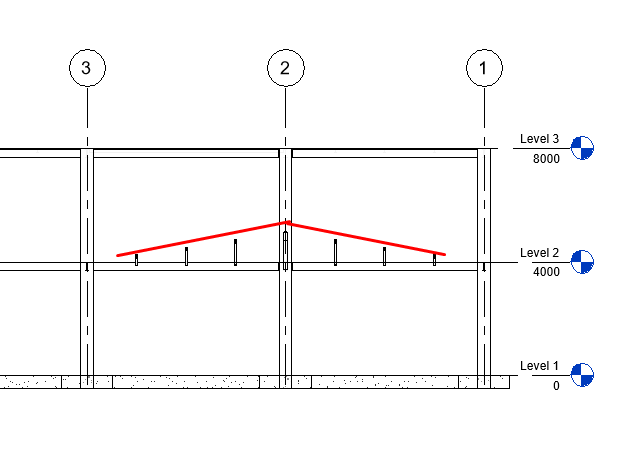

Some of my beams (the red lines i drew) don't appear from "West Elevation" look. And visibility is set as "Fine". Do you have any idea what may cause that ?







Attached Images


This user is offline



Mon, Oct 14, 2019 at 3:17:47 PM | Some beams don't appear from one side.

#2

MehmetCad


active

Joined: Sun, Sep 29, 2019
0 Posts
No Rating


Ops, i mean from "East Elevation"


This user is offline



Mon, Oct 14, 2019 at 3:45:17 PM | Some beams don't appear from one side.

#3

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 22 Votes

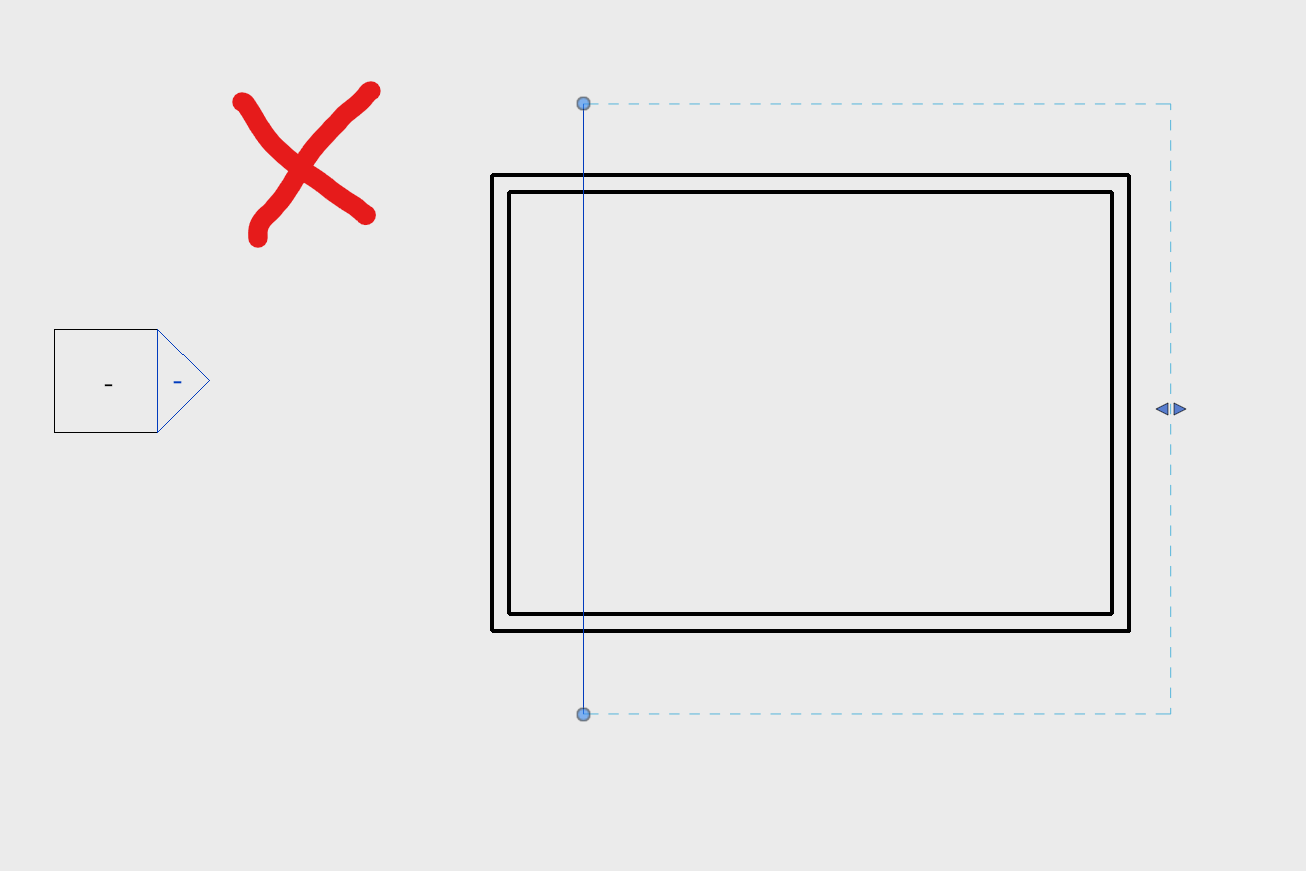

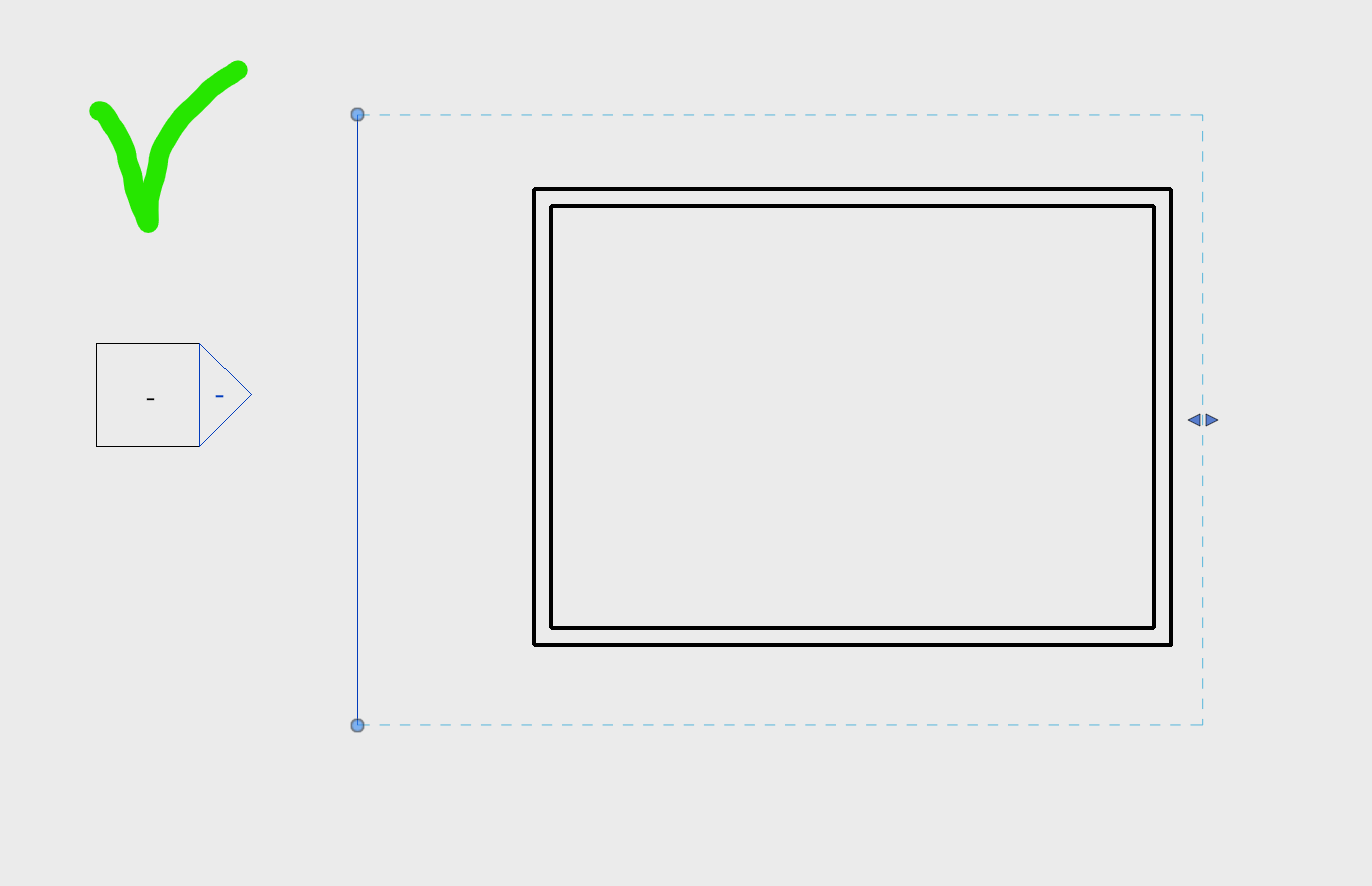

Make sure elevation cut line is in font of your building, not cutting through it.



Attached Images


This user is offline



Mon, Oct 14, 2019 at 5:50:59 PM | Some beams don't appear from one side.

#4

MehmetCad


active

Joined: Sun, Sep 29, 2019
0 Posts
No Rating


Oh, yes it fixed the problem. Thank you. Are there cut options for floors, too ?


This user is offline



Mon, Oct 14, 2019 at 7:04:50 PM | Some beams don't appear from one side.

#5

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 22 Votes


I'm not sure what you're asking for. Can you explain? What are you trying to do?


This user is offline



Tue, Oct 15, 2019 at 12:44:17 PM | Some beams don't appear from one side.

#6

MehmetCad


active

Joined: Sun, Sep 29, 2019
0 Posts
No Rating


For example, it shows a floor plan from level 1. Let's say our level 1 starts from 0 cm and ends at 300 cm. So does it cut from 100th cm ? 150th cm ? So i asked if there was an adjustment for cutting height for each level, too.


This user is offline



Tue, Oct 15, 2019 at 1:47:40 PM | Some beams don't appear from one side.

#7

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 22 Votes


Read this: http://help.autodesk.com/view/RVT/2020/ENU/?guid=GUID-58711292-AB78-4C8F-BAA1-0855DDB518BF




This user is offline
