Hi

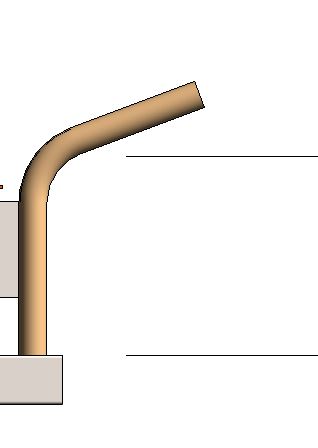

I would like to draw a circular tube column with a bend at 30 deg as shown in the attached picture. I tried as a sweep function creating a generic model but when it comes to dimension it, I can not dimension the generic model. Is there any solution or a different way to draw. Your help will be much appreciated.

Regards

Parm



Attached Images


This user is offline



Mon, Aug 26, 2019 at 3:09:12 PM | Column in revit

#2

archimade


active

Joined: Mon, Aug 21, 2017
0 Posts
No Rating


helloo

try open new family column project and try crating it by there and try loading it as a family in ur project..


This user is offline



Mon, Aug 26, 2019 at 7:14:47 PM | Column in revit

#3

CDWdavid


active

Joined: Mon, Aug 4, 2008
153 Posts
5 Stars: 4 Votes


You may use “invisible lines” in that generic model to create all snapping points for dimensioning purpose.
