Forums >> Revit Structure >> Technical Support >> Gusset Plate to column base plate

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jun 3, 2019 at 2:57:11 PM | Gusset Plate to column base plate

#1

otherguy


active

Joined: Mon, Jun 3, 2019
0 Posts
No Rating


I am very new to Revit and was just trying to input a brace connection to a column base plate using the Gusset plate to column base plate connection.  It's just a W-shape, HSS brace.

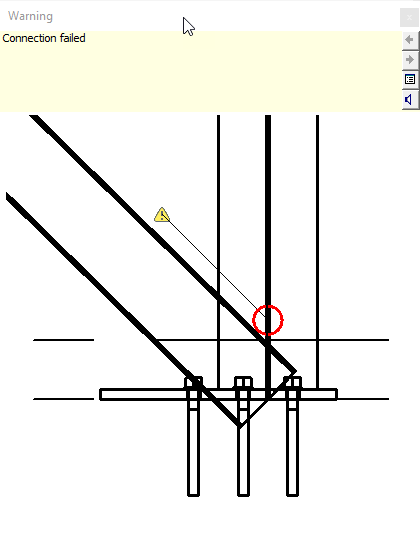

I get the error message I have attached, just figure it's something simple I am missing, but I have watched videos and read lots of other post but can't find anything on this yet.



Attached Images


This user is offline



Mon, Jun 3, 2019 at 7:48:23 PM | Gusset Plate to column base plate

#2

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


My guess is you need to switch the pimary / 2nd / 3rd connection elments. Click the connection itself in 3d and note the blue dots and connection order 1, 2, 3, etc. The small blue dot toggles the connection order.


-----------------------------------

.
