Forums >> Revit Building >> Tips & Tricks >> Cool Roof Tip

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Feb 4, 2019 at 5:49:55 PM | Cool Roof Tip

#1

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 31 Votes

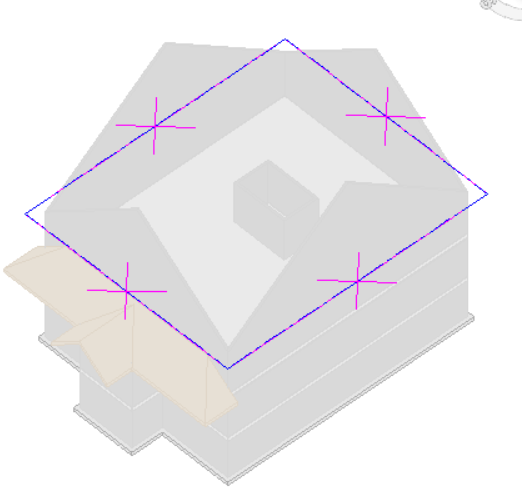

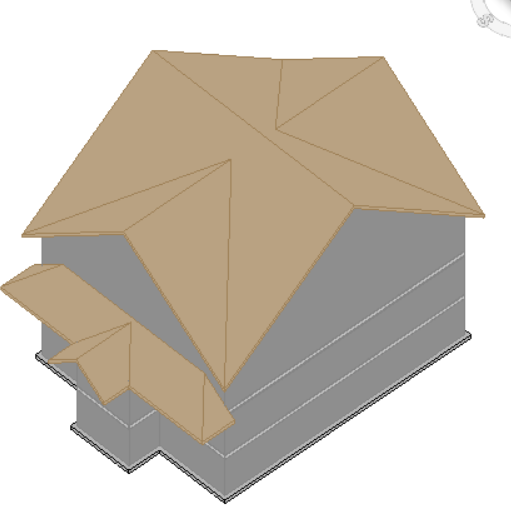

To make the roof attached in a single sketch draw a rectangle, split each segment in the middle and add slope arrows as shown. Works best with all roof surfaces at the same slope. Use 'slope' to define the slope arrow not 'head and tail offsets'.



Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Sat, Feb 16, 2019 at 6:07:59 AM | Cool Roof Tip

#2

vedika31


active

Joined: Sat, Feb 16, 2019
0 Posts
No Rating


Thank you for your wonderful tip..!!!


This user is offline

View Website
