Forums >> Revit Building >> Technical Support >> Revit 2017 Surface Pattern Not Visible

trigcove

active

Joined: Mon, Nov 15, 2010
0 Posts
No Rating

I created our company's template from the default Structural Template in Revit.  In 3D views I cannot get the surface patterns to show up (specifically wall patterns).  This appears to be a default setting in the default revit structural template.  When I start a new project with the architectural template and copy/paste the wall the surface patterns are there.

Is there a setting that will enable surface patterns to show up within a model started from the structural template?

- The walls surface where the pattern should be is facing outward.

- I have verified that the wall patterns have not been overridden (either in object styles, visibility/graphics, or override graphics in view).

- I am using a model fill pattern.

Thank you!

Attached Images

Attached Files 157895_Surface_Patterns-Structural_Template.rvt

This user is offline

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

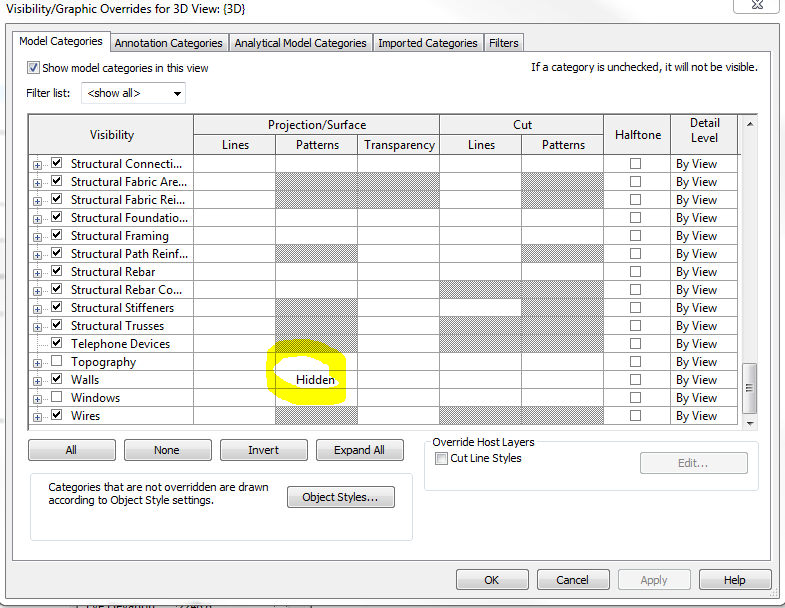

I have just varified on two seperate versions of REVIT that in the Default 3D view, in the OOTB Structural Template file that Wall Surface Patterns are in fact Hidden. That sure would explain your situation so I'd tripple check the VV in your 3D view. See image.

Attached Images

-----------------------------------

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150

This user is offline

View Website

trigcove

active

Joined: Mon, Nov 15, 2010
0 Posts
No Rating

Haha! I checked this like 5 times.  I keep highlighting 'Walls' and all the cells say Override..., which I thought meant they weren't overridden.  Just when I think Revit isn't playing by it's own rules I get put in my place.

Thank you!

Attached Images

This user is offline
