Forums >> Revit Building >> Technical Support >> arc slanted curtain wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Aug 31, 2004 at 10:33:55 AM | arc slanted curtain wall

#1

plule


active

Joined: Wed, Oct 29, 2003
2 Posts
No Rating


Hi all, I'm having some problems creating a cutainwall to wrap round a drum shaped building. Any idea how i can go about doing it??? Thanks

This user is offline



Tue, Aug 31, 2004 at 5:00:09 PM | RE: arc slanted curtain wall

#2

skisouth


active

Joined: Tue, Mar 30, 2004
45 Posts
5 Stars: 3 Votes


Make your wall with a typical wall type - 5" or whatever, to the arc you want. Select the wall and change the type to a storefront wall

This user is offline



Wed, Sep 1, 2004 at 5:22:04 AM | RE: arc slanted curtain wall

#3

plule


active

Joined: Wed, Oct 29, 2003
2 Posts
No Rating


Sorry... Probably i didn't state it properly...I actually meant a cone-shaped curtain wall... So id there anyway to create a cone shaped curtain wall?

This user is offline



Wed, Sep 1, 2004 at 5:43:25 AM | RE: arc slanted curtain wall

#4

Mr GG


active

Joined: Thu, May 13, 2004
184 Posts
3.5 Stars: 9 Votes


You can do it with Modelling > Create > Solid > Blend Thatīs my suggestion...

This user is offline



Wed, Sep 29, 2004 at 3:07:14 AM | RE: arc slanted curtain wall

#5

papurajx


active

Joined: Mon, Apr 5, 2004
11 Posts
No Rating


Create a 'Cone Shaped' roof using 'Revolve' command as an 'In-palce' family and convert to 'Glazed roof'. Use curtain grids and mulions to divide the panels.

This user is offline



Wed, Sep 29, 2004 at 4:05:01 AM | RE: arc slanted curtain wall

#6

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


You can do it using the ruled curtain wall system tool. Modelling--> Ruled Curtain wall. You would then need to draw a 3d line for the lower circle and then make the upper circle smaller on a different level, unfortunately you cannot go to an exact point. Then select the ruled curtain tool, select the two lines and then start adding grids etc... You may also have to do it as two halves. I haven't actually tried it as such but it should work...

This user is offline

View Website

Wed, Sep 29, 2004 at 11:12:38 AM | RE: arc slanted curtain wall

#7

Mr GG


active

Joined: Thu, May 13, 2004
184 Posts
3.5 Stars: 9 Votes

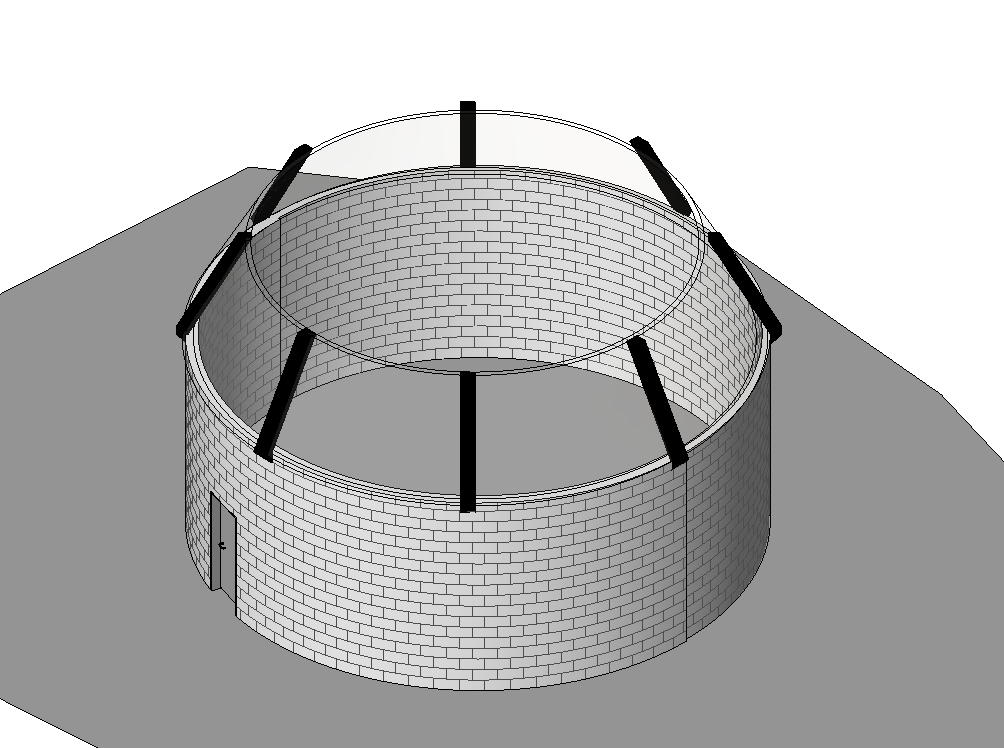

This is my suggestion done with Solid > Blend and Void > Blend and the mullions are just Solid > Extrudes

Attached Images


This user is offline



Wed, Sep 29, 2004 at 11:20:30 AM | RE: arc slanted curtain wall

#8

Mr GG


active

Joined: Thu, May 13, 2004
184 Posts
3.5 Stars: 9 Votes

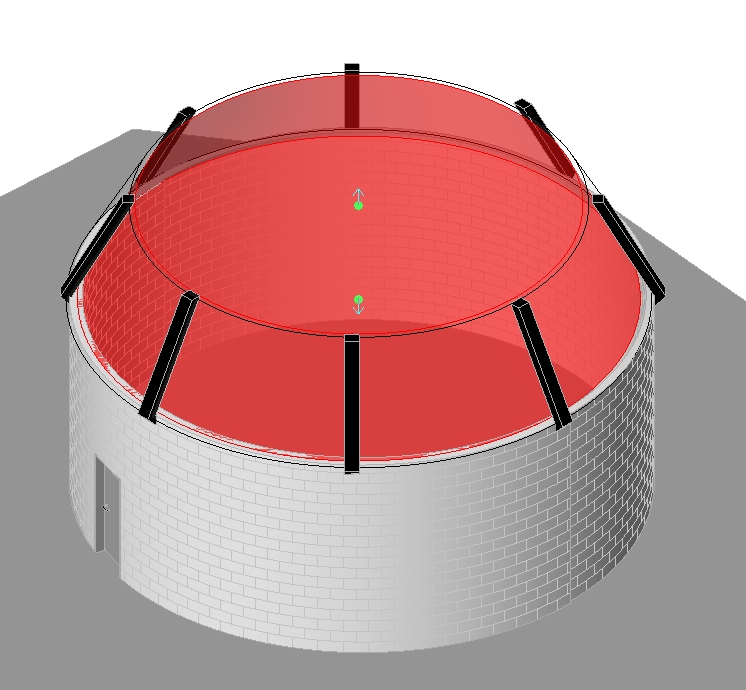

Here you can see the glassing. You can use whatever family you like. I used Roof!!! because I could not find any family for Curtain Walls It is one Blend with Solid and another inside made with Void

Attached Images


This user is offline



Wed, Sep 29, 2004 at 11:25:35 AM | RE: arc slanted curtain wall

#9

Mr GG


active

Joined: Thu, May 13, 2004
184 Posts
3.5 Stars: 9 Votes

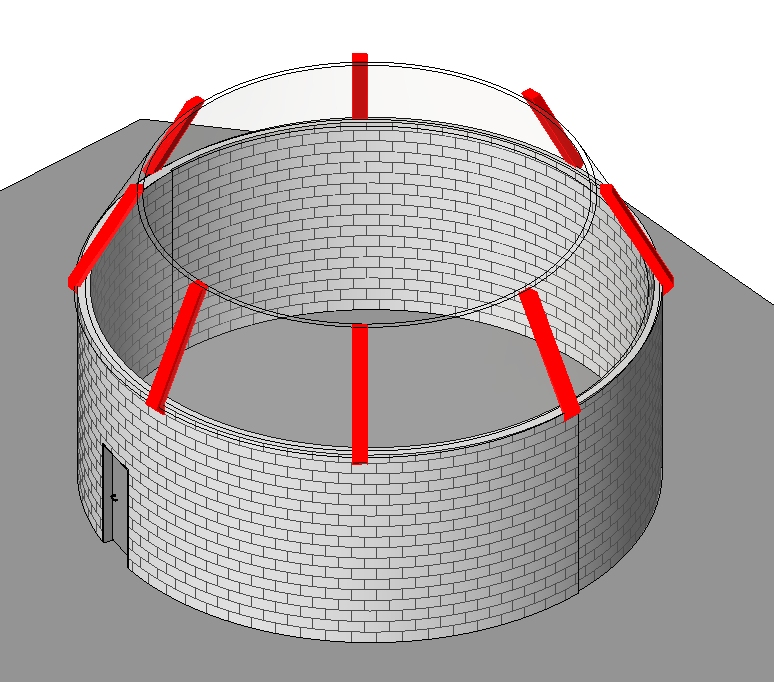

And here are the homemade " mullions". First make a wall going North-South or in some other direction. And then Modelling > Create choose some arbitrary family: Entourage??? Then... Just do one mullion by Solid Extrude. using a side of the wall as a workplane Mirror the first extrusion in the same family Copy the two mullions Rotate them If you want more mullions just copy and rotate Finish the family

Attached Images


This user is offline



Wed, Sep 29, 2004 at 10:42:02 PM | RE: arc slanted curtain wall

#10

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes

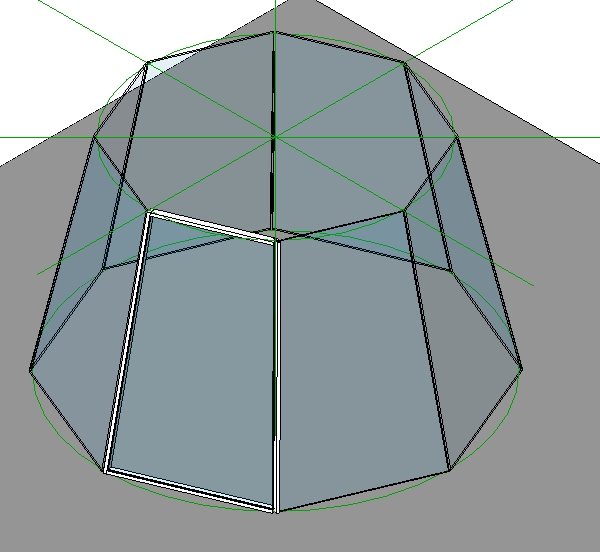

Here is an example of the ruled curtain wall method I suggested above.

Attached Images

Ruled Curtain Wall Cone.jpg

This user is offline

View Website

Wed, Sep 29, 2004 at 11:20:59 PM | RE: arc slanted curtain wall

#11

Mr GG


active

Joined: Thu, May 13, 2004
184 Posts
3.5 Stars: 9 Votes


The ruled curtain system suggested of Mr Spot turned out to be so nice to me so I had to test it myself. The circles had to be divided a lot of times so it was some work to do before applaying the curtains.... And you cannot use curved glass But it is the method... Yeah! Really niice

Attached Images


This user is offline



Thu, Sep 30, 2004 at 12:14:55 AM | RE: arc slanted curtain wall

#12

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


Mine was done with only 4 lines (2 lots of half circles). The other advantage of this method is you can easily adjust the height of the cone by adjusting the levels the lines were drawn on.

This user is offline

View Website

Thu, Sep 30, 2004 at 1:07:31 AM | RE: arc slanted curtain wall

#13

Mr GG


active

Joined: Thu, May 13, 2004
184 Posts
3.5 Stars: 9 Votes

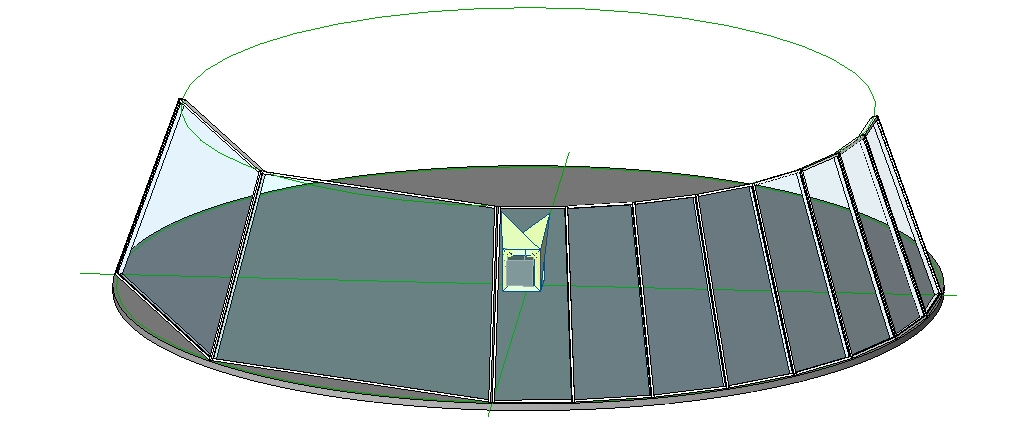

Thanks for the tips. It was only to use Modelling>Curtain Grid to split the big window you got first got then you used Ruled Curtain Systems on a part - quarter - of a circle But I got a bug using this method ... Have a look at the image.,.. I think it is a bug... Something is it?!.,

Attached Images


This user is offline
