Forums >> Revit Building >> Technical Support >> Vertical Mullion not centered in model but centered in family

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Apr 26, 2018 at 2:52:05 PM | Vertical Mullion not centered in model but centered in family

#1

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


Revit 2018.

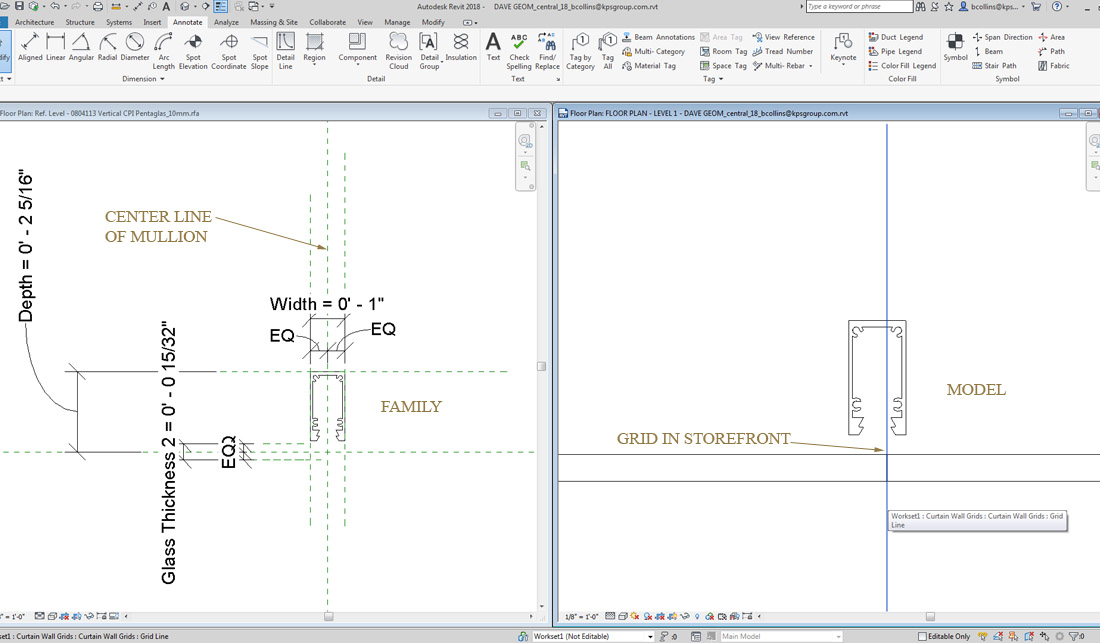

There has to be something simple that I'm missing.  See the attached image.  I have a vertical mullion built as clearly and simply as I can.  There are a few parameters I will probably never need, but they're not in the direction of the problem. The mullion is centered and EQed in the family.  When I place it in the model, it goes off center by 11/32".  If I remove the EQ and off center the mullion in the family 11/32" it aligns with the curtain grid in the family.

I can use the work around, but would feel better if I knew the problem.  Thoughts?

Thanks.

.blc

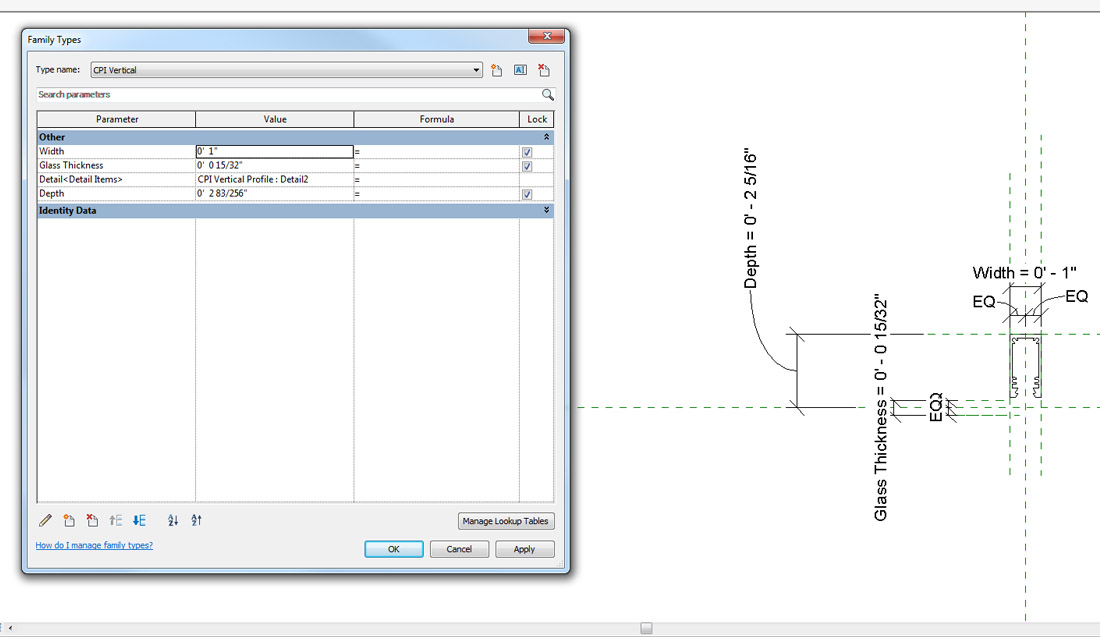

EDIT: I've added a screen shot of the type properties.

Edited on: Thu, Apr 26, 2018 at 9:58:36 AM

Edited on: Thu, Apr 26, 2018 at 9:59:39 AM



Edited on: Thu, Apr 26, 2018 at 10:00:15 AM

Attached Images


This user is offline



Thu, Apr 26, 2018 at 11:34:04 PM | Vertical Mullion not centered in model but centered in family

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Look at your mullion type properties - width on each side.


This user is offline



Fri, Apr 27, 2018 at 1:51:19 PM | Vertical Mullion not centered in model but centered in family

#3

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


Thanks for the follow up.  I tried to upload an image of the properties, but it kept deleting the image of the mullion.  See attached.



Maybe I need to add an offset to control it, but I would think that as it's set up, it would center automatically.



Attached Images


This user is offline



Fri, Apr 27, 2018 at 2:00:50 PM | Vertical Mullion not centered in model but centered in family

#4

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes

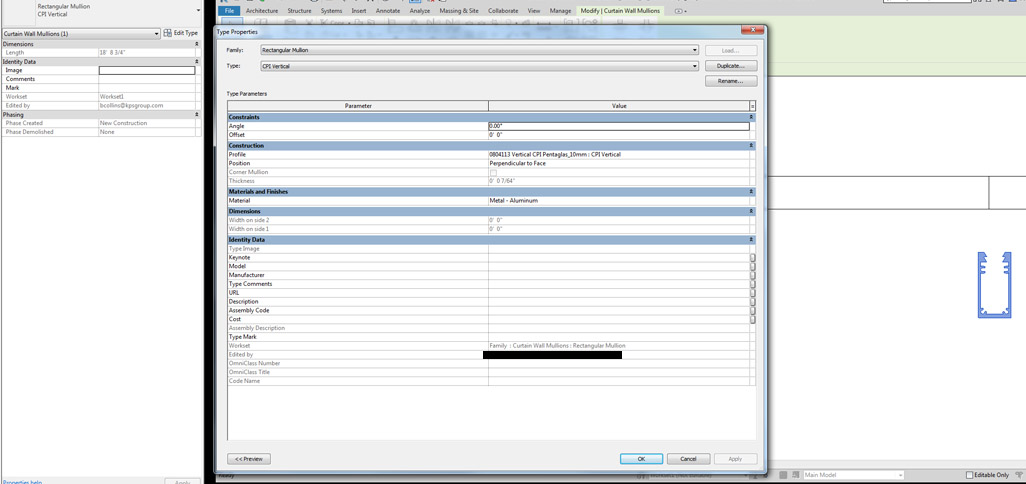

And, see attached for the properties in the model.



Attached Images
