Forums >> Revit Building >> Technical Support >> Area Plan does not match Area from Materia/l Area

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Feb 10, 2018 at 11:15:22 PM | Area Plan does not match Area from Materia/l Area

#1

jbodiford


active

Joined: Mon, Jun 16, 2014
0 Posts
No Rating


This might be something very simple but for the life of me I cannot figure it out...

I have created an area plan and the area is 5,000 SF.

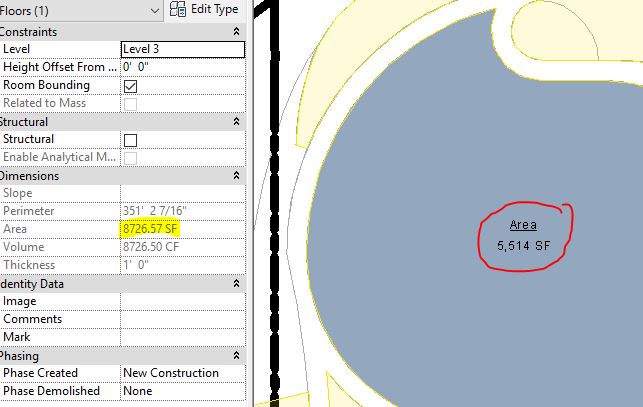

When I select the floor, it is totally different (by 3,00 0SF). My material schedule matches the floor area.

Now this gets weirder, some areas on the area plan actually matches the modeled floor and material schedule!

Any suggestions on what is going on?

in RVT 2015

Thanks!



Attached Images


This user is offline



Sun, Feb 11, 2018 at 8:41:43 AM | Area Plan does not match Area from Materia/l Area

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 394 Votes


You can't compare apples to pears....   Your floor sketch defines the area of your floor.  Area plans do not use this sketch, you can use the automatic area plan that creates a sketch based on the exterior walls, or you can create your own sketch.  Areas from rooms are also completely different.


This user is offline



Sun, Feb 11, 2018 at 9:22:18 AM | Area Plan does not match Area from Materia/l Area

#3

jbodiford


active

Joined: Mon, Jun 16, 2014
0 Posts
No Rating


I understand the difference between sketch lines and area boundary lines... What I can't figure out is when all the area boundary lines are in the same place as the sketch lines/modeled floor. I don't think it should be as simple as apples and pears and you can't compare when I have multiple other areas that do match and a handful that do not.



Attached Images


This user is offline



Tue, Feb 13, 2018 at 7:50:03 AM | Area Plan does not match Area from Materia/l Area

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 394 Votes


That image is meaningless.
