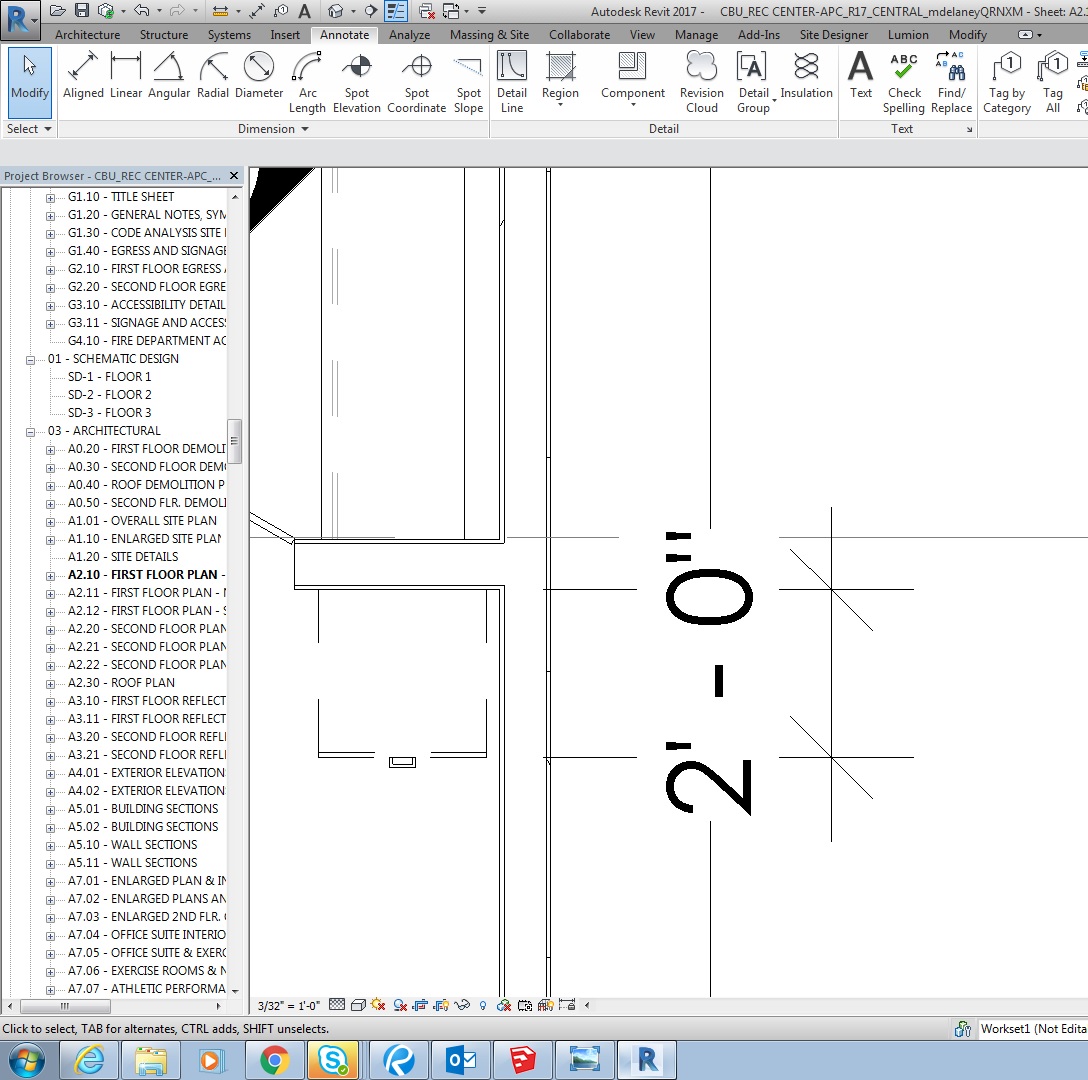

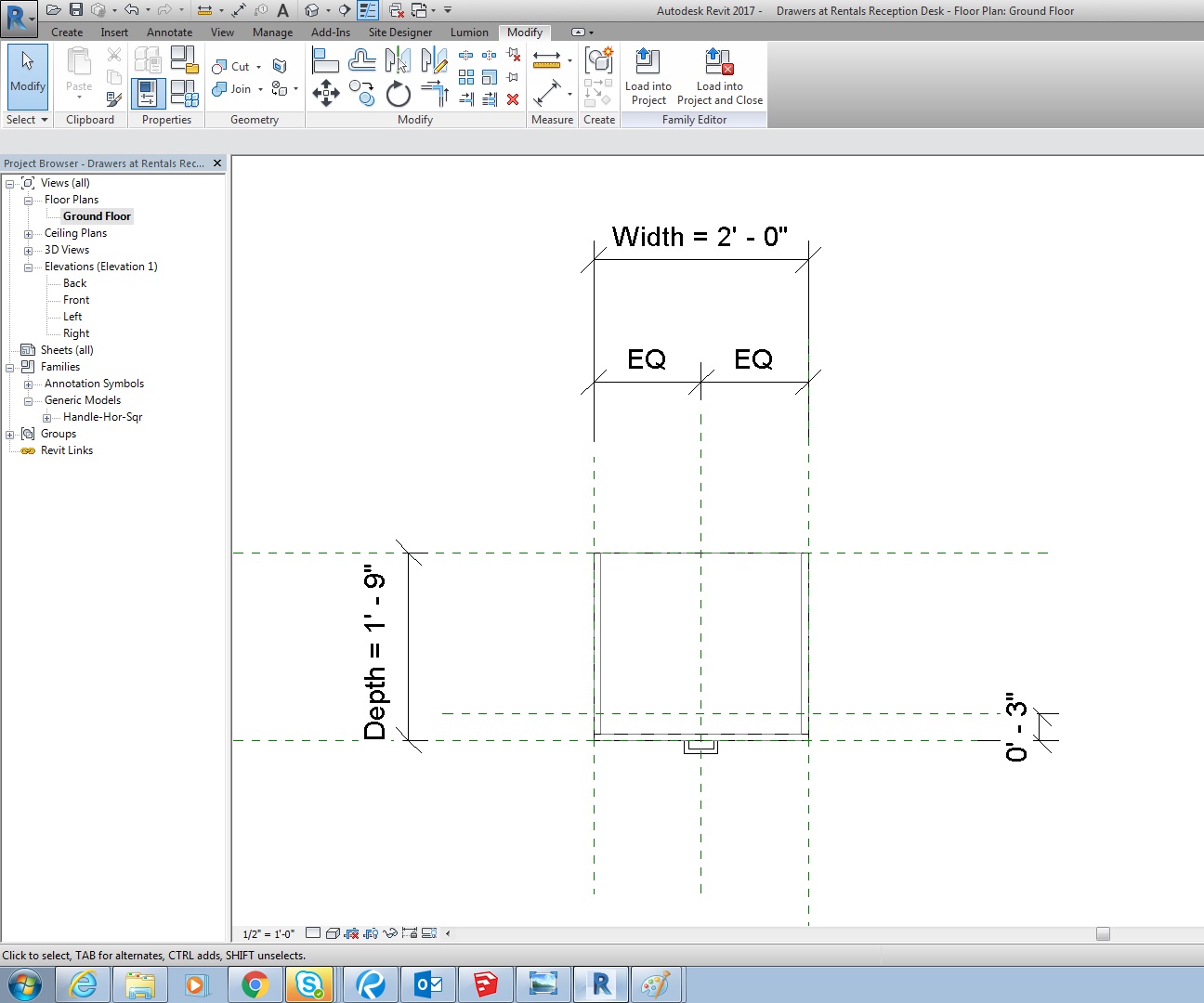

I modified a casework to be 1'-9" deep, and saved as, loaded into model, but plan view is still reading 2'-0" deep. See attached images. How can i see the symbolic lines (if that is what the issues is) to modify them from within the family editor? In plan view from the family editor I see no symbolic lines i can edit?! Please any advice?! I am about to lose it....again!

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You can tab select any lines /model elements in family or project.

I suggest you flex the family in the family editor and see what happens.

This user is offline

Beaucoupnice

active

Joined: Mon, Nov 19, 2007
93 Posts

It may have a masking region setup in plan in the family check that too.

-----------------------------------

__________I'm the guy they come to when they didn't follow my recommended workflows.__________
