Sun, Nov 12, 2017 at 4:06:29 AM | Line weight control

#1

zakazai


active

Joined: Thu, Feb 23, 2012
0 Posts
No Rating


Hi

i cant control the line properties at the joints of wall and structural columns.

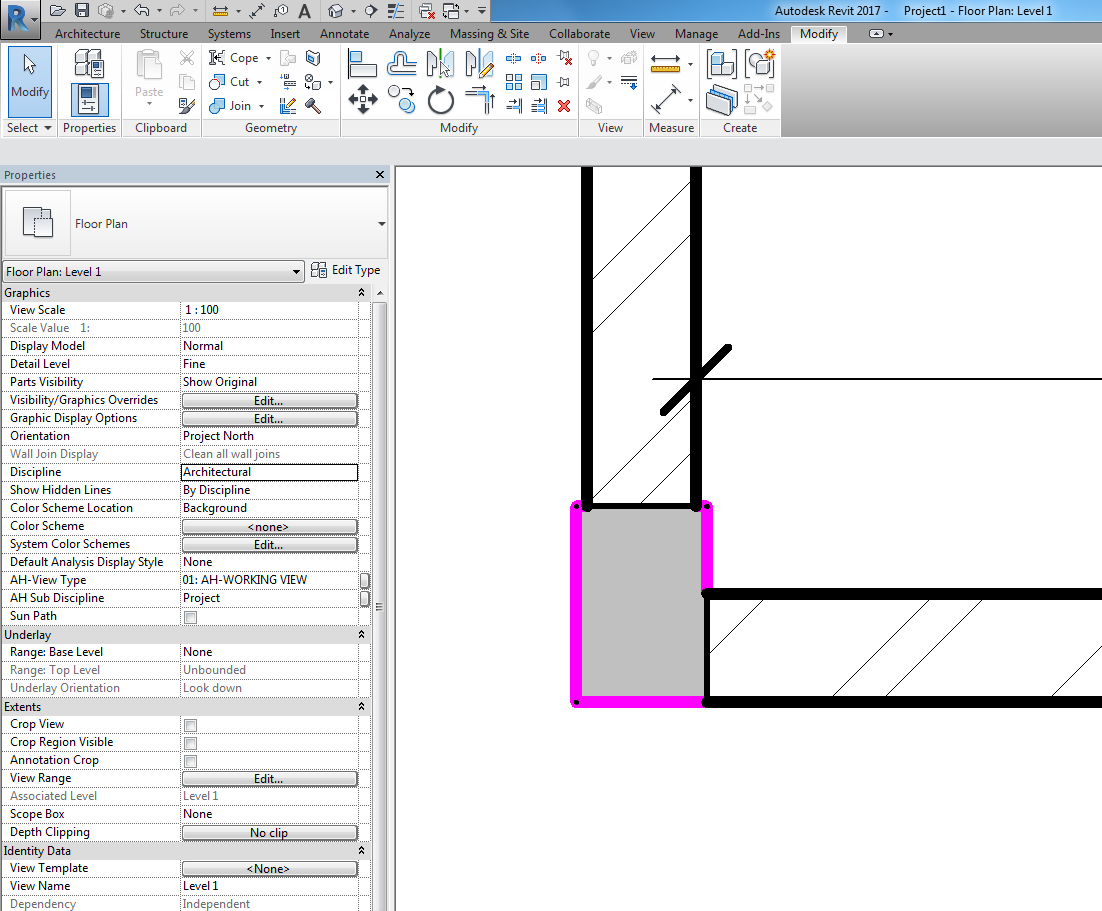

please find attached snap. is there any solution?



Attached Images


This user is offline

View Website

Sun, Nov 12, 2017 at 7:03:07 AM | Line weight control

#2

Beaucoupnice


active
Beaucoupnice Avatar

Joined: Mon, Nov 19, 2007
93 Posts
3.5 Stars: 6 Votes


Some Options:1) Go to Manage - Settings - Object Styles - Model Objects - find wall and/or column and change settings. This is where you change them globally.

2) In plan view, hit vv to bring up visibility / graphics overrides, in new window go to walls or columns and change the lines column to the thickness you need. This changes all walls amd / or columns in the view only.

3) In plan view, select the wall or column, right click and select override graphics in view and select by element. In new window change projections lines, or cut lines. This changes only the wall selected.


-----------------------------------

__________I'm the guy they come to when they didn't follow my recommended workflows.__________

This user is offline



Sun, Nov 12, 2017 at 7:21:08 AM | Line weight control

#3

zakazai


active

Joined: Thu, Feb 23, 2012
0 Posts
No Rating


I think you answered without a try

i tried all those things.




This user is offline

View Website

Sun, Nov 12, 2017 at 7:22:28 AM | Line weight control

#4

zakazai


active

Joined: Thu, Feb 23, 2012
0 Posts
No Rating


My question is about the line between a column and wall when it joins, that comes as default thickness.

i want to apply thickness to it as normal boundary of column


This user is offline

View Website

Sun, Nov 12, 2017 at 7:37:02 AM | Line weight control

#5

zakazai


active

Joined: Thu, Feb 23, 2012
0 Posts
No Rating


yES I GOT IT



IT IS THE ADJUSTMENT OF PROJECTION LINE, NOT THE CUT LINE OF STRUCTURAL COLUMN. I DONT KNOW WHY NOT CUT LINE

PLS FIND ATTACHED SNAP



Attached Images


This user is offline

View Website
