Forums >> Revit Building >> Technical Support >> very complex existing facade to build

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Sep 7, 2017 at 1:19:23 PM | very complex existing facade to build

#1

karramba


active

Joined: Tue, Aug 22, 2017
0 Posts
No Rating

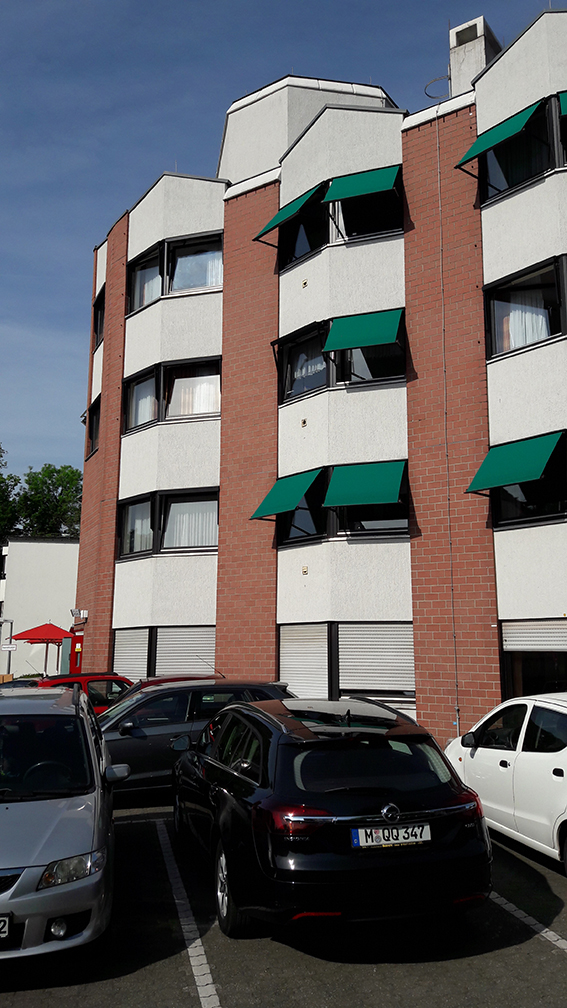

I have a question concerning this facade. I really don't know how should I procede and how to acheive what is on the picture here attached.

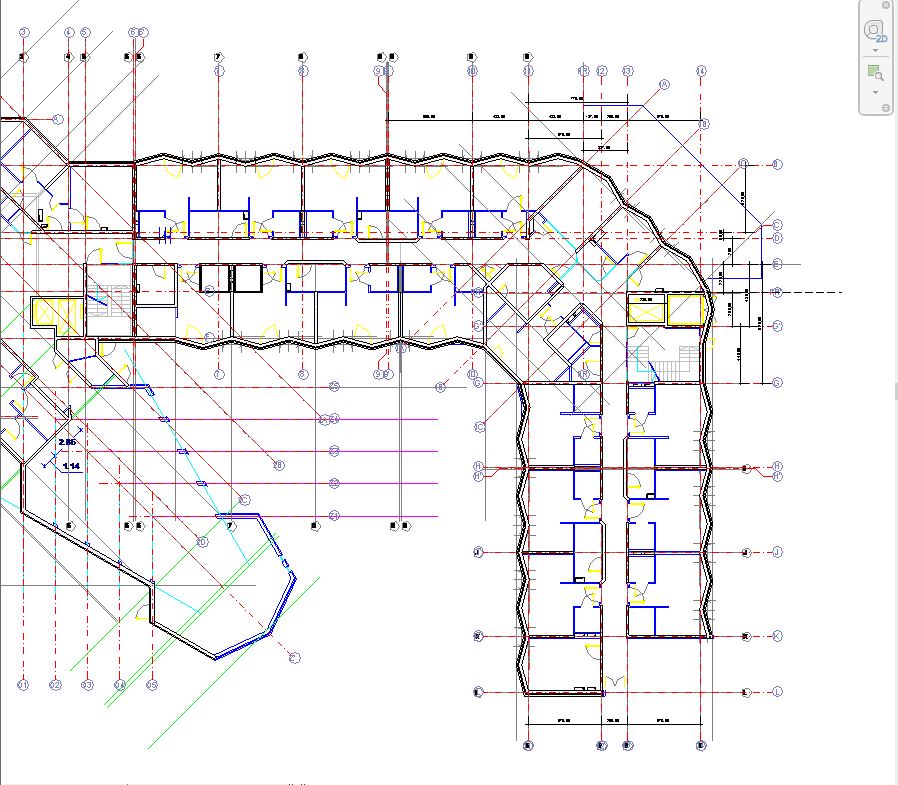

1. For the moment I have divided this wall in two different wall types. I physically cut them, but the building is large and has a lot of zig zags. Is there other way to proceed? Maybe to bild a repeatable module ?

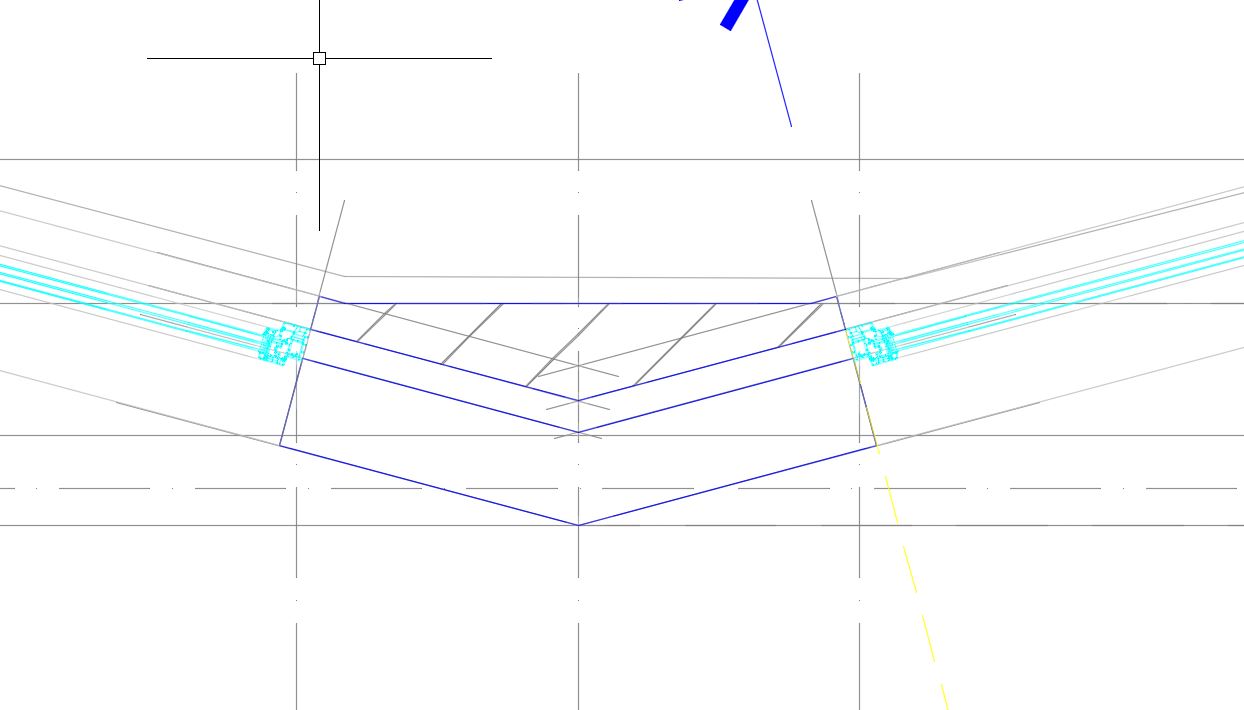

2. There is also another problem, please see attached wall zoom, the brick wall is in a shape of triangle. No clue how that was build, as it is an existing building and there is no way to inwestigate. Old plans from 70's show no details. How should I change the bricks profile and create this triangle?

I would appreciate any tip?

Regards



Attached Images


This user is offline



Thu, Sep 7, 2017 at 2:20:03 PM | very complex existing facade to build

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 380 Votes


Your questions are not clear.  Some text on them pointing out your problems would be helpful.

From what I see, the two wall types should work fine.   Is the plan what you have accomplished so far?


This user is offline



Thu, Sep 7, 2017 at 3:23:13 PM | very complex existing facade to build

#3

karramba


active

Joined: Tue, Aug 22, 2017
0 Posts
No Rating


Thank you for your answer Smile

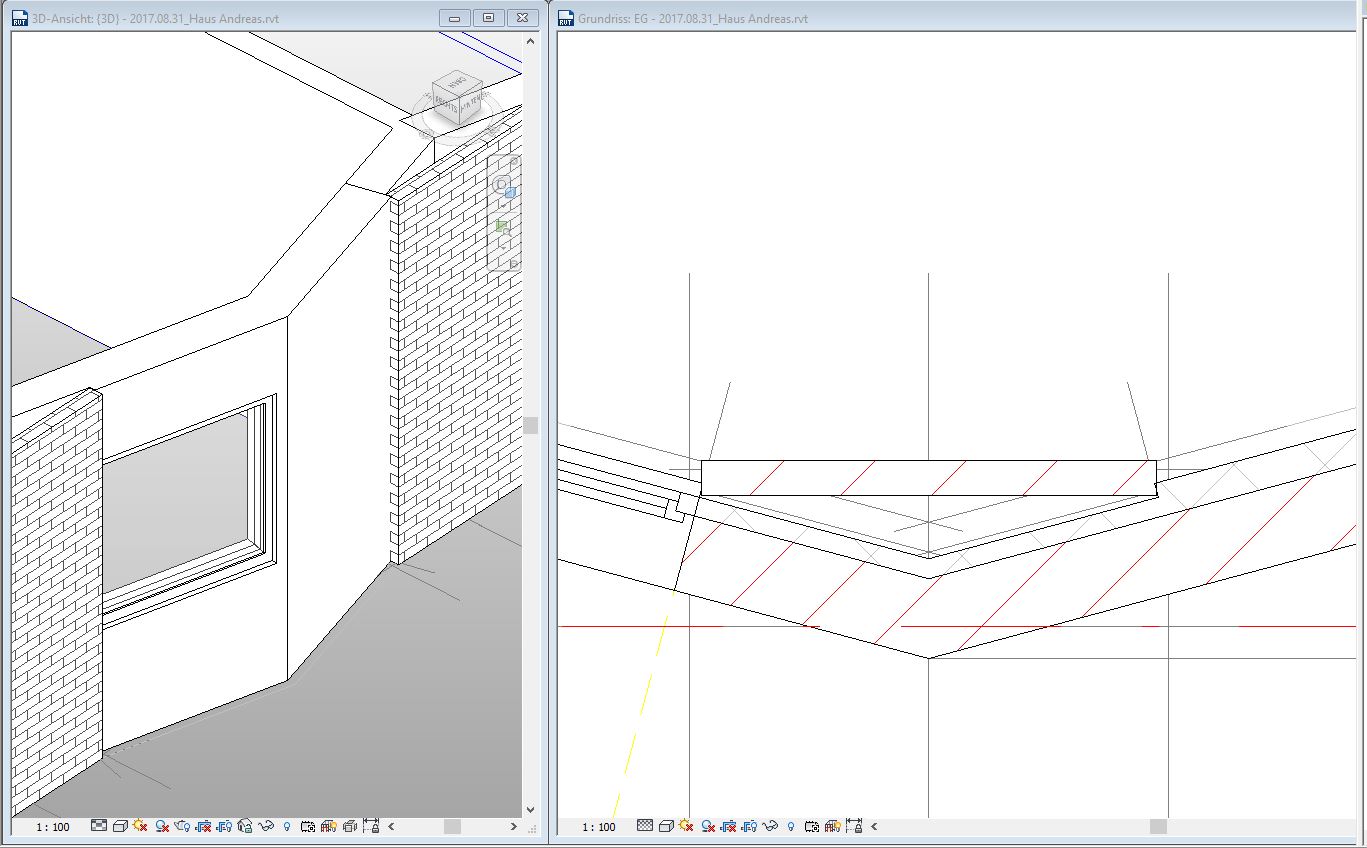

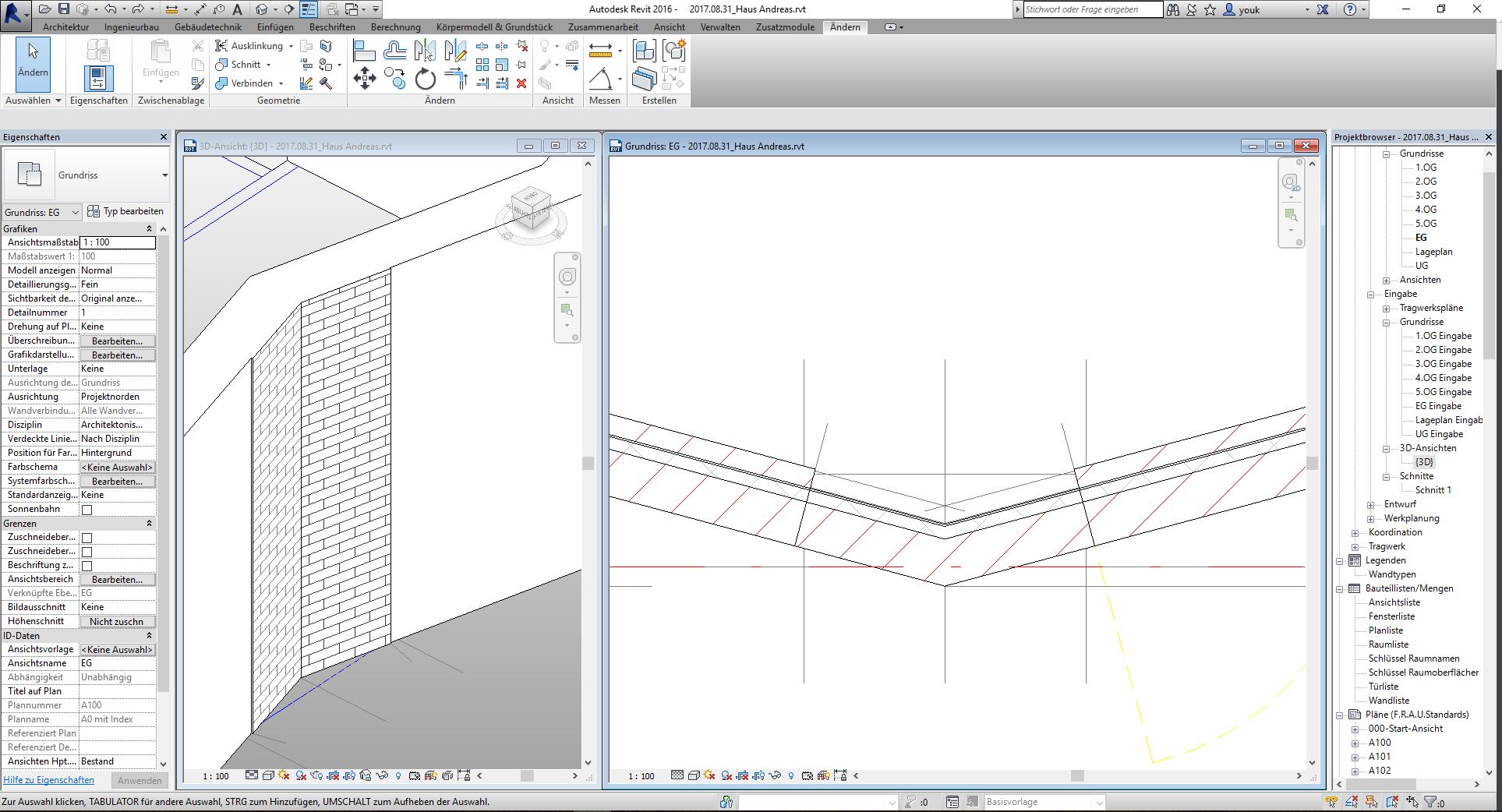

This is what I have accomplished for the moment.

This doesnt solution looks very clean. But for the lack of better ideas.



I have used local model --> wall to build thiis brick wall part but I have read local model cause problems later...whtever that means?



Attached Images


This user is offline



Thu, Sep 7, 2017 at 3:25:55 PM | very complex existing facade to build

#4

karramba


active

Joined: Tue, Aug 22, 2017
0 Posts
No Rating




Attached Images


This user is offline
