Forums >> Community >> Newbies >> Aligning Family to Wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Sep 1, 2017 at 7:01:38 PM | Aligning Family to Wall

#1

swooll3


active

Joined: Tue, Jul 11, 2017
0 Posts
1 Stars: 1 Votes


Hello,

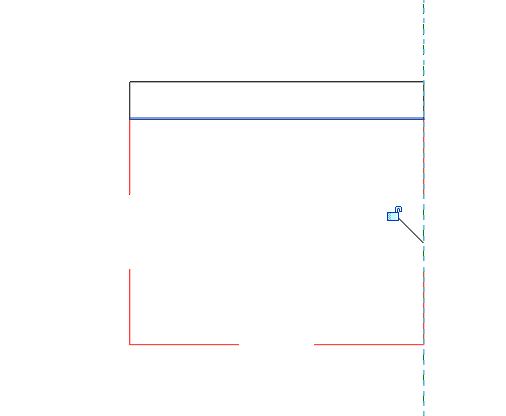

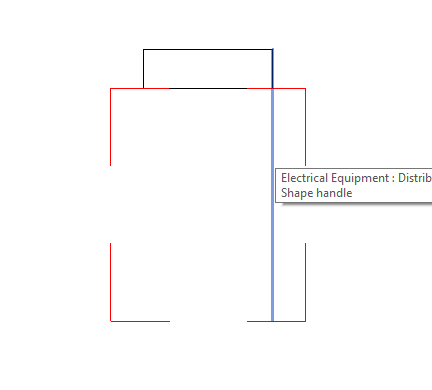

I recently created a panel family and went to go align it to the wall, but it want's to change the dimensions when I do. It grows in whatever direction the wall is in that I am trying to align to. Here are some pictures of what it does.



Attached Images


This user is offline



Sat, Sep 2, 2017 at 4:22:55 PM | Aligning Family to Wall

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 312 Votes


Your family has control planes that allow for instance changes of the size parameter.  Use your tab key when you select the face of the object to get the face and not the reference plane.


This user is offline



Tue, Sep 5, 2017 at 4:41:24 PM | Aligning Family to Wall

#3

swooll3


active

Joined: Tue, Jul 11, 2017
0 Posts
1 Stars: 1 Votes


Sounds good. Thanks for the reply


This user is offline
